ESCO® Ultralok® U45 Teeth & Adapters
Ultralok® U45 represents the upper heavy-duty class within the ESCO® tooth system.
Designed for cutting edge and lip thicknesses from 50 mm to 60 mm.
- Application: quarry, rock and heavy demolition
- System design: two-piece construction with integrated locking
- Components: original ESCO® teeth, adapters and protection parts
📞 +49 (0)2241 26 56 700
→ Back to all sizes: ESCO® Ultralok® System
Search for machines (e.g. Komatsu PC200 LC-7)
System Definition U45
The U45 size defines the engineered interface between tooth and adapter in the upper heavy-duty range of the ESCO® Ultralok® system.
Typical application range:
Crawler excavators and large wheel loaders in the approx. 35–50 tonne class with cutting edge and lip thicknesses of 50 mm or 60 mm.
Note:
Machine class is a reference only and not an identification criterion. The decisive factor is the stamped system size “U45” on the component.
The locking mechanism is integrated into the tooth. Separate hammer-retained pins are not required.
Cutting Edge and Lip Thickness within the U45 System
In heavy-duty applications, bucket lips are structurally reinforced.
U45 adapters are typically designed for:
50 mm cutting edge
60 mm cutting edge
Cutting edge thickness is a primary selection criterion in addition to the system size.
Excavator Tooth Geometries U45
U45S – standard
U45C – chisel
U45P – pick
U45T – twin
Heavy Back variants with reinforced rear wear volume:
U45SHB
U45PHB
U45THB
U45CHB
U45HHB
CXT variants for extreme penetration:
U45CXT

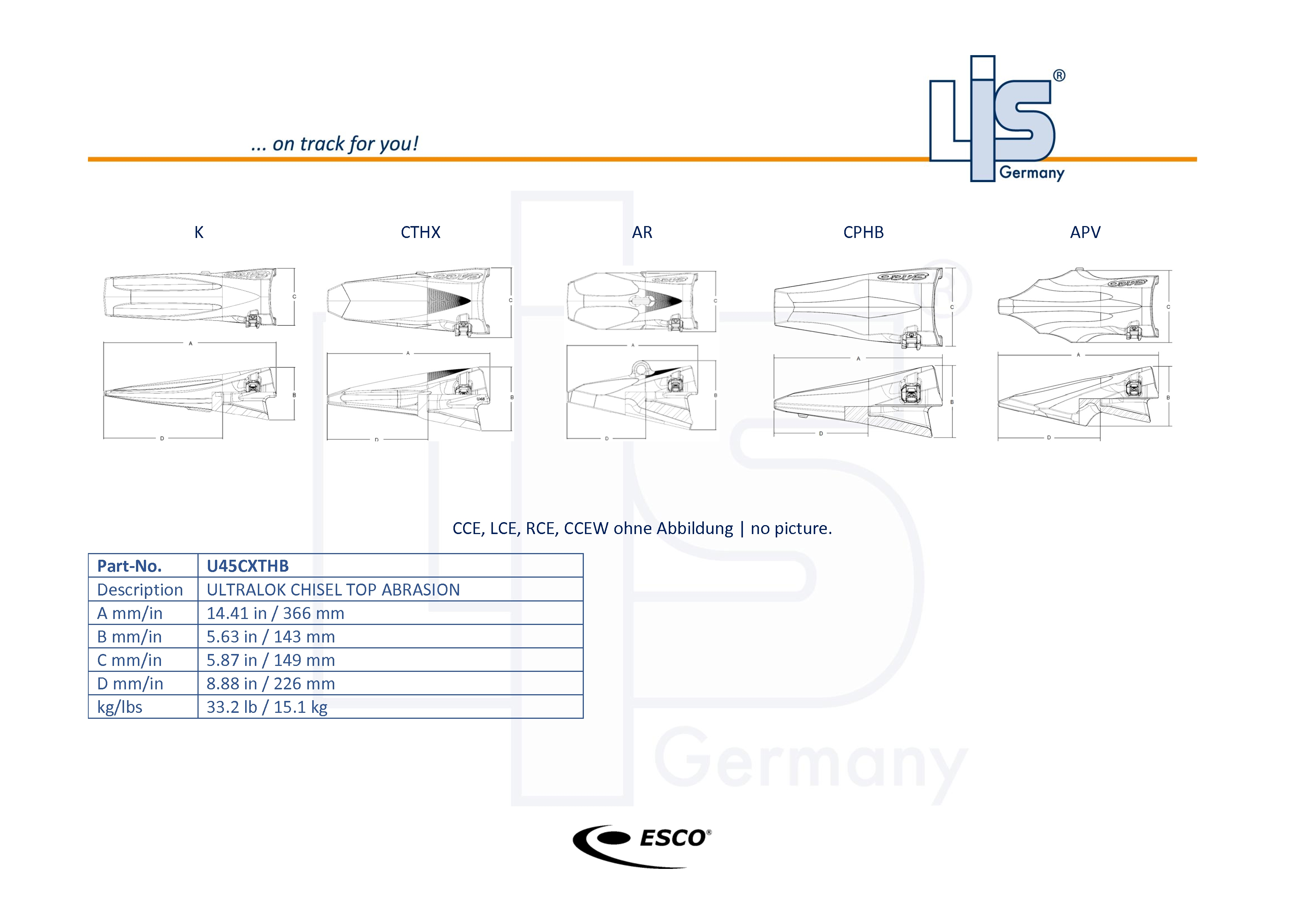

U45CXTHB
Loader Tooth Geometries within U45
U45A – loader tooth
U45AP – abrasion penetration
U45APV – V-profile penetration
U45AF – abrasion flare
These geometries are designed for heavy wheel loader applications.
Adapters, Corner and Side Protection U45
The U45 system includes:
Weld-on adapters
Bolt-on adapters

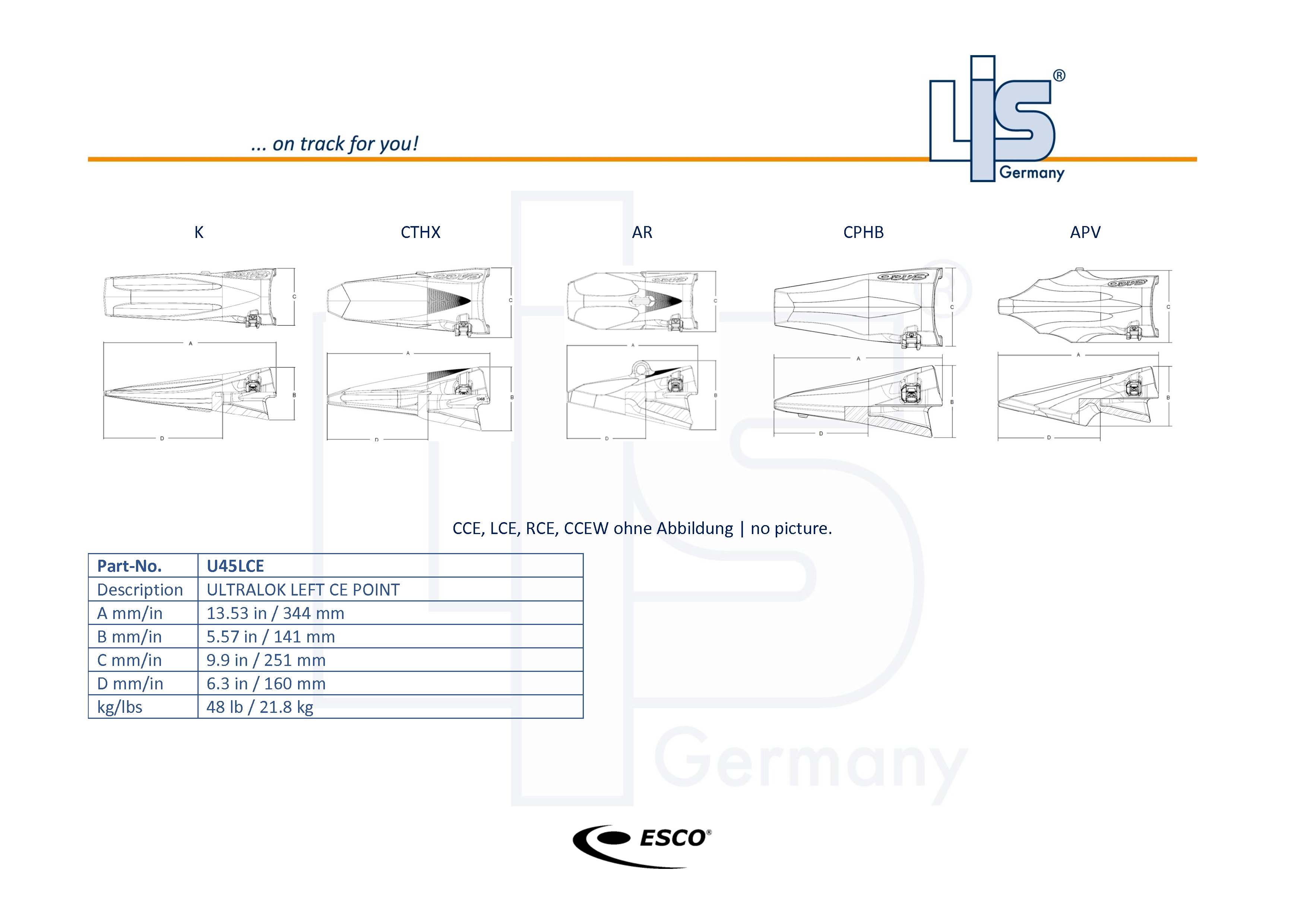

Corner adapters left / right
Center variants (e.g. CCEW, LCE, RCE)
Side and flank protection components
Position within the Ultralok® Hierarchy
U40 – approx. 25–35t
U45 – approx. 35–50t
U55 – approx. 50–70t
Selection must always be based on the stamped system size.
→ Other sizes: [U20] | [U25] | [U30] | [U35] | [U40] | [U55] | [U60]
Original Accessories and Tools
Pry tools (e.g. PB15CG)
Cleaning tools (e.g. 84001)
Locking and box variants
Technical Identification Before Ordering
Verify:
Is “U45” stamped on the worn part?
What is the cutting edge or lip thickness (50 mm / 60 mm)?
Which adapter type is installed?
Which tooth geometry matches the application?
Note: ESCO® and Ultralok® are registered trademarks of their respective owners.
