ESCO® Ultralok® U45 Excavator Tooth – U45THB (Twin Pick | Bolt-in Lock)
Product number:
U45THB
€303.46
incl. VAT €361.12
Product information
The ESCO® Ultralok® U45THB is an excavator tooth for the U45 system with the Twin Pick Tooth profile and type code T. This version uses the HB – Bolt-in Lock configuration. As a wear part within the Ultralok® tooth system, the point is seated with a form-fit connection in the tooth pocket at the adapter interface.
The twin-pick geometry is intended for hard-to-penetrate material and is primarily used in corner positions together with P-profile pick points. The tooth point is secured to the tooth pocket by a bolt-in lock.
Technical Data
- System: ESCO® Ultralok®
- System Size: U45
- Part Number: U45THB
- Product Type: Excavator Tooth
- Type Code: T
- Tooth Profile: Twin Pick Tooth
- Configuration: HB – Bolt-in Lock

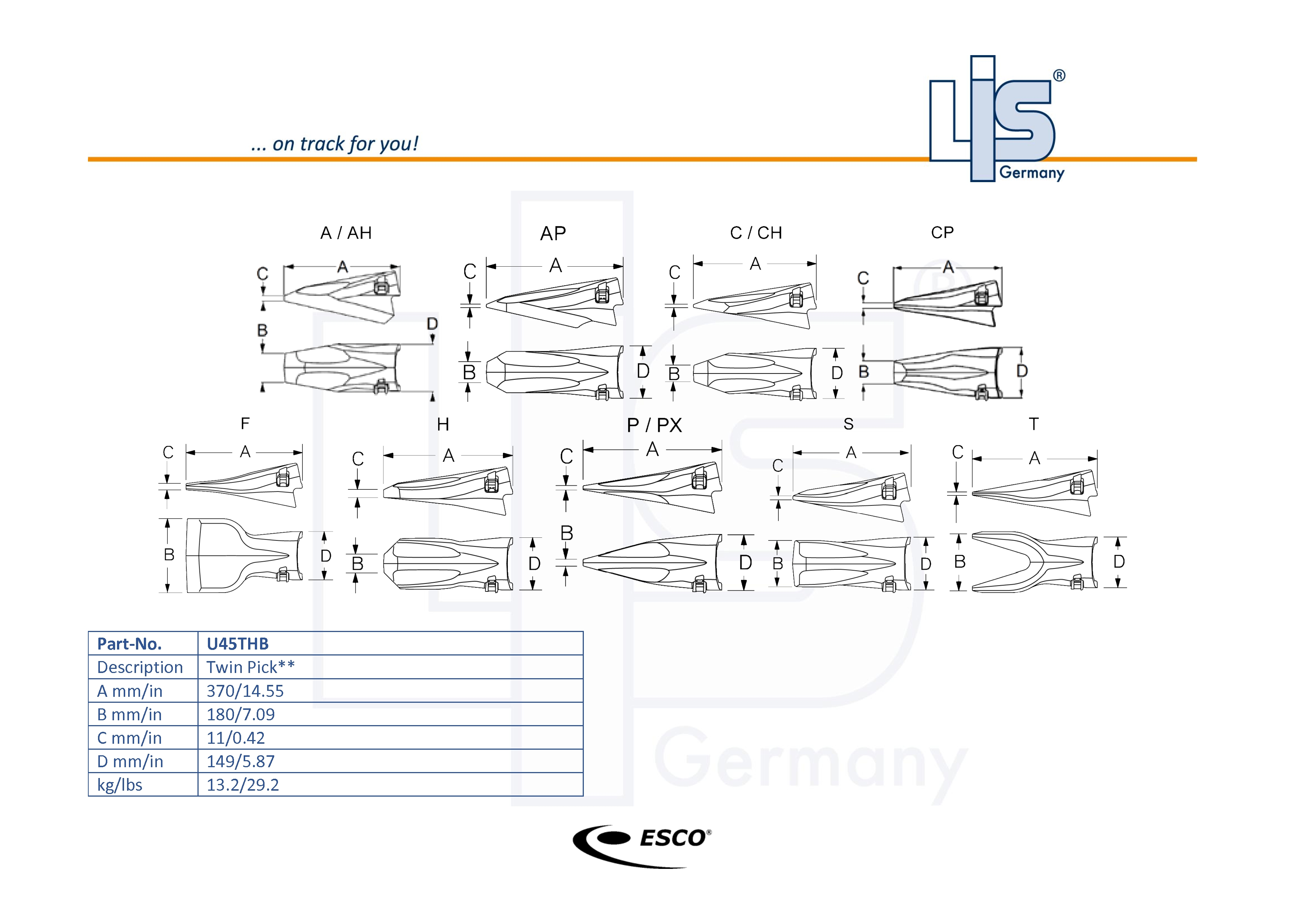

- Dimension A – Overall Length: 370 mm
- Dimension B – Cutting Edge Width: 180 mm
- Dimension C – Cutting Edge Thickness: 11 mm
- Dimension D – Outside Box Width: 149 mm
- Locking Method: bolt-in lock
| Tooth Size: | U45 |
|---|---|
| Shipping Weight: | 13.24 kg |
