Fuel Pre-Filters for Construction Equipment
Fuel pre-filters are the upstream filtration stage in diesel fuel systems. They separate water and coarse contaminants before the main filter stage.
Selection based on reference number, design and flow rate. Mismatches lead to fuel system malfunctions.
📞 +49 (0)2241 26 56 700

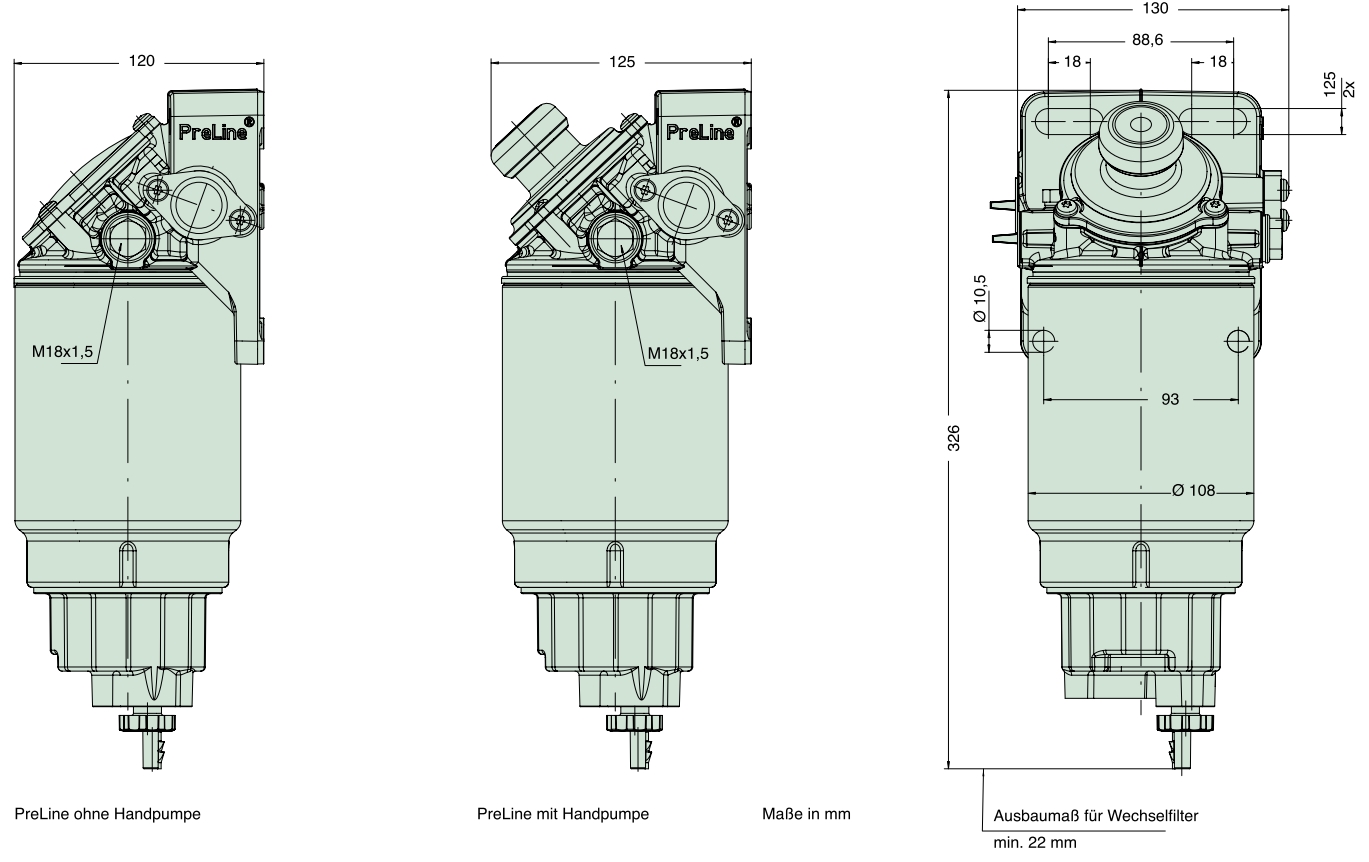

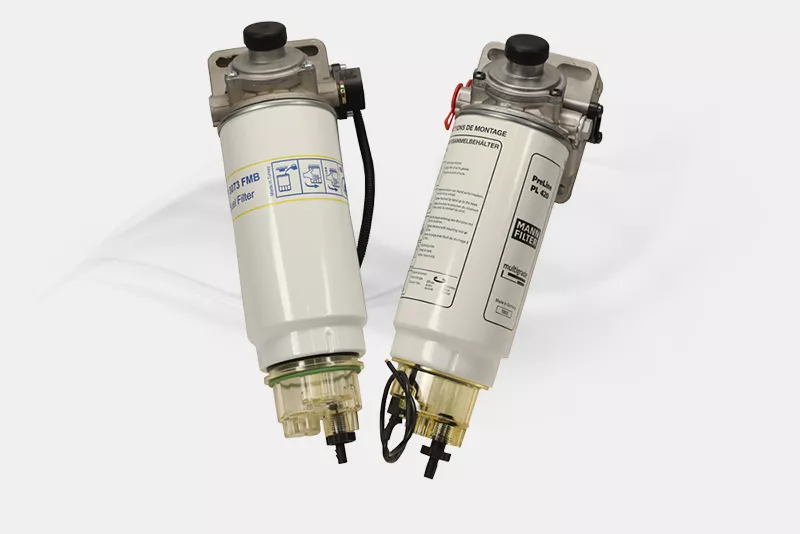

PreLine fuel pre-filters and filter designs
- PreLine inline filters: modular pre-filtration systems for defined flow ranges
- Spin-on pre-filters (PL series): complete screw-on filters for direct replacement

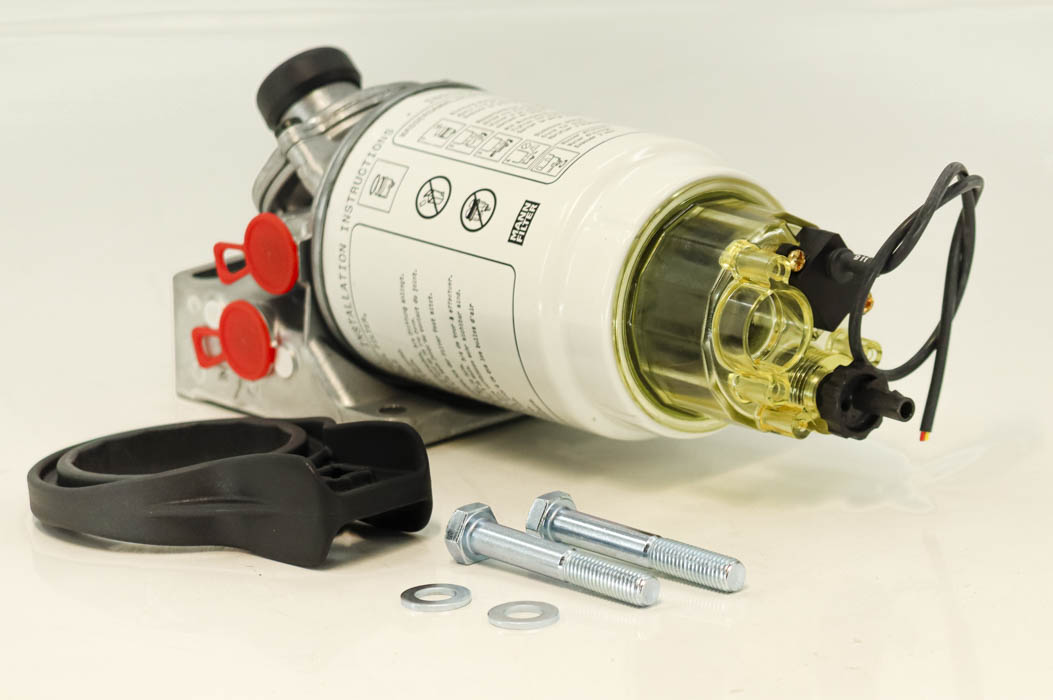

- Pre-filter configurations: versions with water sensors, priming pumps or integrated drainage
These systems are designed for specific flow rates and are installed on the low-pressure side before the fuel pump. System size must match fuel delivery rate and existing pre-filtration stage.
Fuel pre-filters by reference number, design and system size
Fuel pre-filters are identified by reference number, design and system size and must match the existing pre-filtration system.
The flow rate must correspond to the fuel demand of the engine. Incorrect sizing affects fuel supply and water separation efficiency.
Part numbers may be replaced or updated. Selection must follow the current valid reference.
Water separation in fuel pre-filters
Water separation is the primary function of fuel pre-filters. Water is removed from diesel fuel before it reaches the main filter and injection system.
Insufficient water separation leads to corrosion, cavitation and damage to high-pressure pumps and injectors.
Pre-filtration stage before main filter and injection system
Fuel pre-filters operate on the low-pressure side upstream of the fuel pump and reduce load on the downstream main filter.
Final filtration is handled by the fuel filter.
Selection criteria for fuel pre-filters
- Reference number: correct system identification
- Design: inline filter or spin-on pre-filter
- System size / flow rate: matched to engine demand
- Water separation performance: critical for injection system protection
- Connection type: compatible with existing installation
Integration within the filtration system
Fuel pre-filters are part of the filters for construction equipment category and operate upstream of the fuel filter.
They differ from air filters used for intake air, oil filters used in lubrication systems and hydraulic filters, which operate in separate fluid circuits.
Check before ordering
- Reference number of the installed pre-filter
- Design: inline pre-filter or spin-on pre-filter
- System size / flow rate
- Water separation requirement
- Connection type and installation setup
