ESCO® Ultralok® U45 Excavator Tooth – U45C (Chisel)
Product number:
U45C
€253.00
incl. VAT €301.07
Product information
The ESCO® Ultralok® U45C is an excavator tooth for the U45 system with the Chisel Tooth profile and type code C. As a wear part within the Ultralok® tooth system, the point is seated with a form-fit connection in the tooth pocket at the adapter interface.
The chisel profile is primarily intended for excavators and combines controlled penetration with additional wear material in the working section. Point replacement is hammerless via the integrated Ultralok® locking system.
Technical Data
- System: ESCO® Ultralok®
- System Size: U45
- Part Number: U45C
- Product Type: Excavator Tooth
- Type Code: C
- Tooth Profile: Chisel Tooth

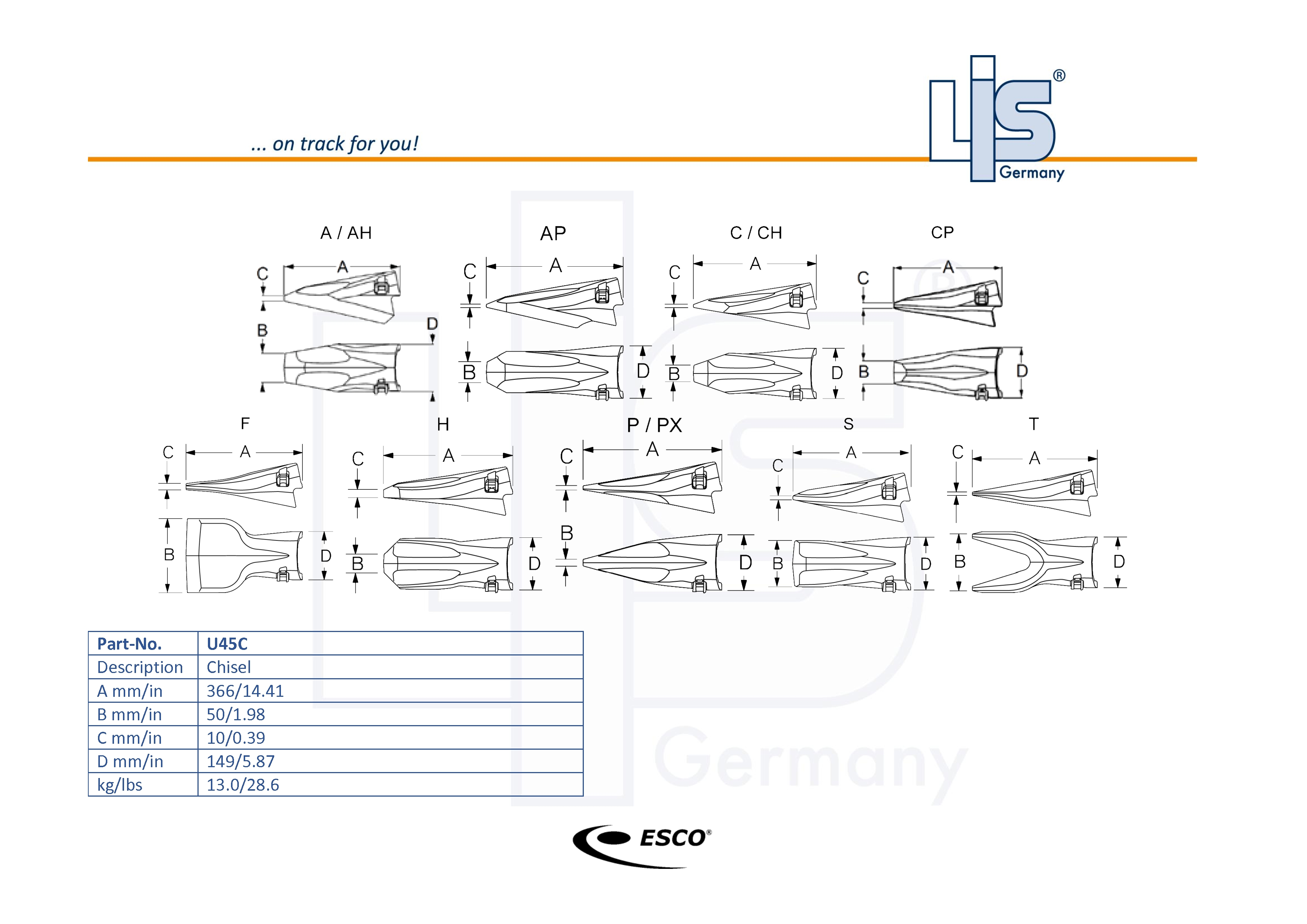

- Dimension A – Overall Length: 366 mm
- Dimension B – Cutting Edge Width: 50 mm
- Dimension C – Cutting Edge Thickness: 10 mm
- Dimension D – Outside Box Width: 149 mm
- Locking Method: integrated Ultralok® locking system, hammerless
| Tooth Size: | U45 |
|---|---|
| Shipping Weight: | 12.97 kg |
