ESCO® Ultralok® U45 Excavator Tooth – U45CH (Chisel Hot Slag | Weld-in Lock)
Product number:
U45CH
€253.00
incl. VAT €301.07
Product information
The ESCO® Ultralok® U45CH is an excavator tooth for the U45 system with the Chisel Tooth profile and type code C. This version uses the Hot Slag – Weld-in Lock configuration. As a wear part within the Ultralok® tooth system, the point is seated with a form-fit connection in the tooth pocket at the adapter interface.
The chisel profile is intended for excavator applications involving hot slag. The tooth point is secured to the tooth pocket by a weld-in hot-slag lock.
Technical Data
- System: ESCO® Ultralok®
- System Size: U45
- Part Number: U45CH
- Product Type: Excavator Tooth
- Type Code: C
- Tooth Profile: Chisel Tooth
- Configuration: Hot Slag – Weld-in Lock

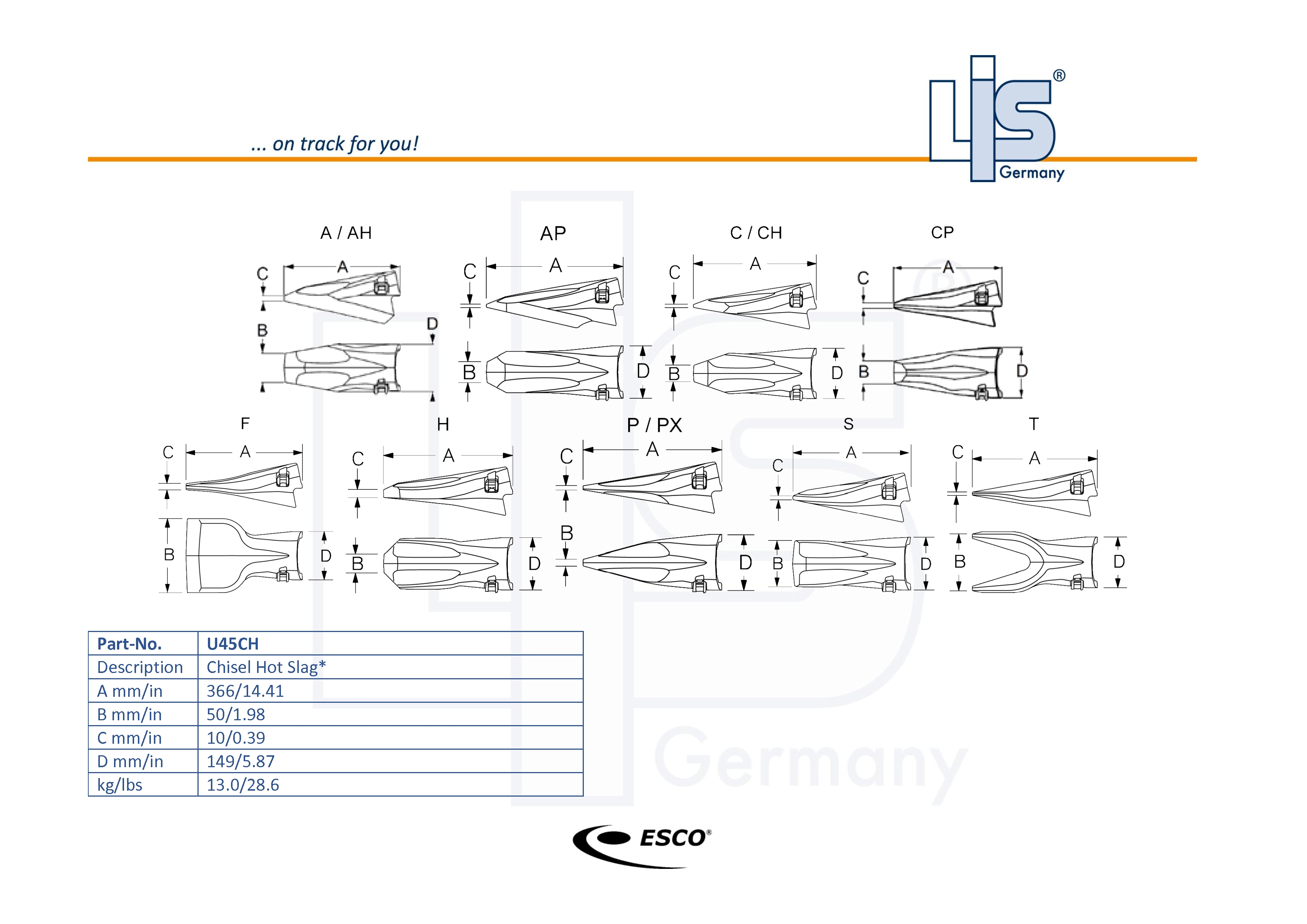

- Dimension A – Overall Length: 366 mm
- Dimension B – Cutting Edge Width: 50 mm
- Dimension C – Cutting Edge Thickness: 10 mm
- Dimension D – Outside Box Width: 149 mm
- Locking Method: weld-in hot-slag lock
| Tooth Size: | U45 |
|---|---|
| Shipping Weight: | 12.97 kg |
