ESCO® Ultralok® U45 Loader Tooth – U45AHB (Abrasion Hot Slag | Bolt-in Lock)
Product number:
U45AHB
€350.79
incl. VAT €417.44
Product information
The ESCO® Ultralok® U45AHB is a loader tooth for the U45 system with the Abrasion Tooth profile and type code A. This version uses the Hot Slag, HB – Bolt-in Lock configuration. As a wear part within the Ultralok® tooth system, the point is seated with a form-fit connection in the tooth pocket at the adapter interface.
The tooth profile is intended for wheel loader applications involving hot slag and highly abrasive material. The tooth point is secured to the tooth pocket by a bolt-in hot-slag lock.
Technical Data
- System: ESCO® Ultralok®
- System Size: U45
- Part Number: U45AHB
- Product Type: Loader Tooth
- Type Code: A
- Tooth Profile: Abrasion Tooth
- Configuration: Hot Slag, HB – Bolt-in Lock

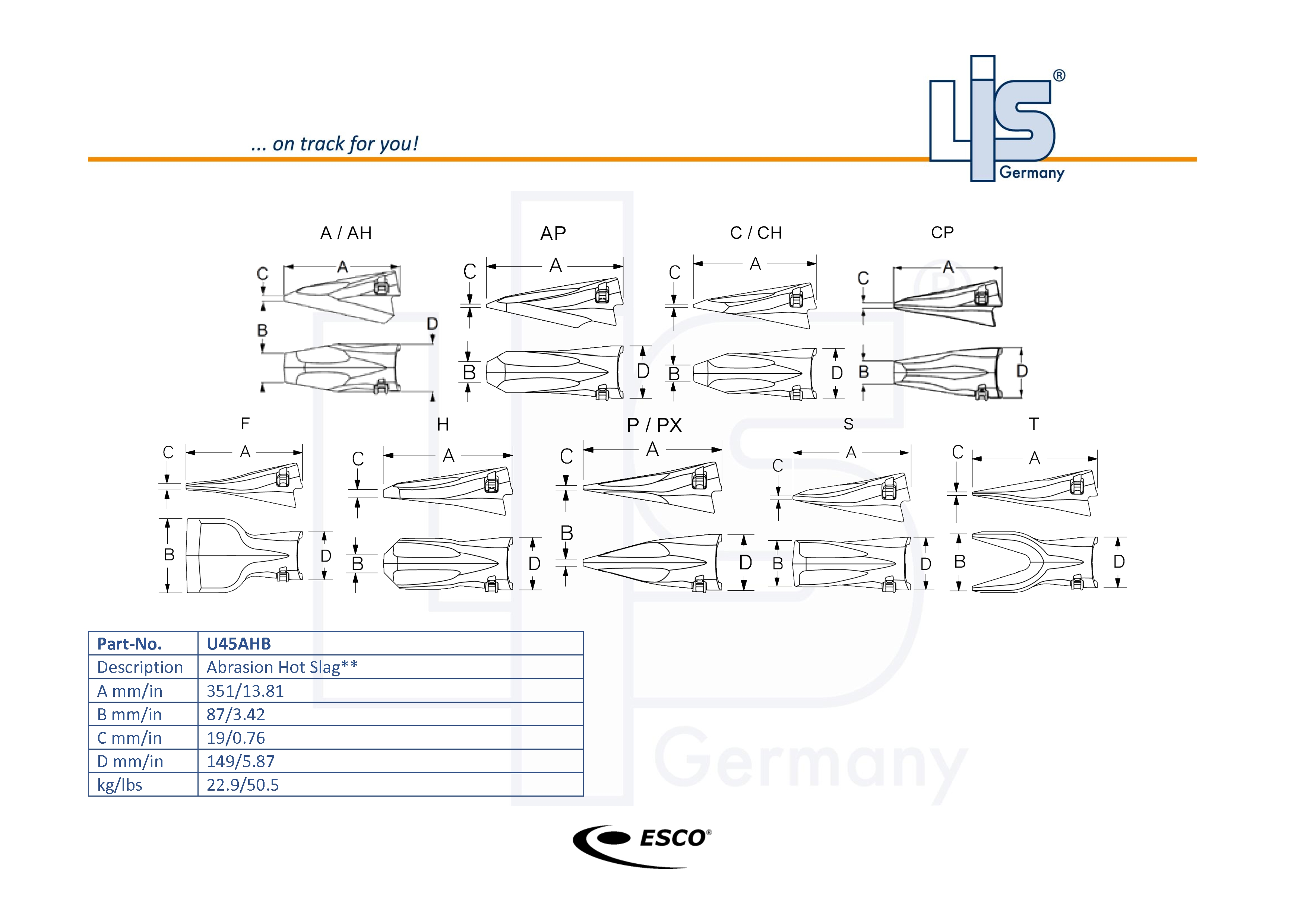

- Dimension A – Overall Length: 351 mm
- Dimension B – Cutting Edge Width: 87 mm
- Dimension C – Cutting Edge Thickness: 19 mm
- Dimension D – Outside Box Width: 149 mm
- Locking Method: bolt-in hot-slag lock
| Tooth Size: | U45 |
|---|---|
| Shipping Weight: | 22.77 kg |
