ESCO® Ultralok® U45 Excavator Tooth – U45HHB (Heavy | Bolt-in Lock)
Product number:
U45HHB
€274.51
incl. VAT €326.67
Product information
The ESCO® Ultralok® U45HHB is an excavator tooth for the U45 system with the Heavy Tooth profile and type code H. This version uses the HB – Bolt-in Lock configuration. As a wear part within the Ultralok® tooth system, the point is seated with a form-fit connection in the tooth pocket at the adapter interface.
The heavy profile is primarily intended for abrasive excavator applications and includes additional wear material in the working section. The tooth point is secured to the tooth pocket by a bolt-in lock.
Technical Data
- System: ESCO® Ultralok®
- System Size: U45
- Part Number: U45HHB
- Product Type: Excavator Tooth
- Type Code: H
- Tooth Profile: Heavy Tooth
- Configuration: HB – Bolt-in Lock

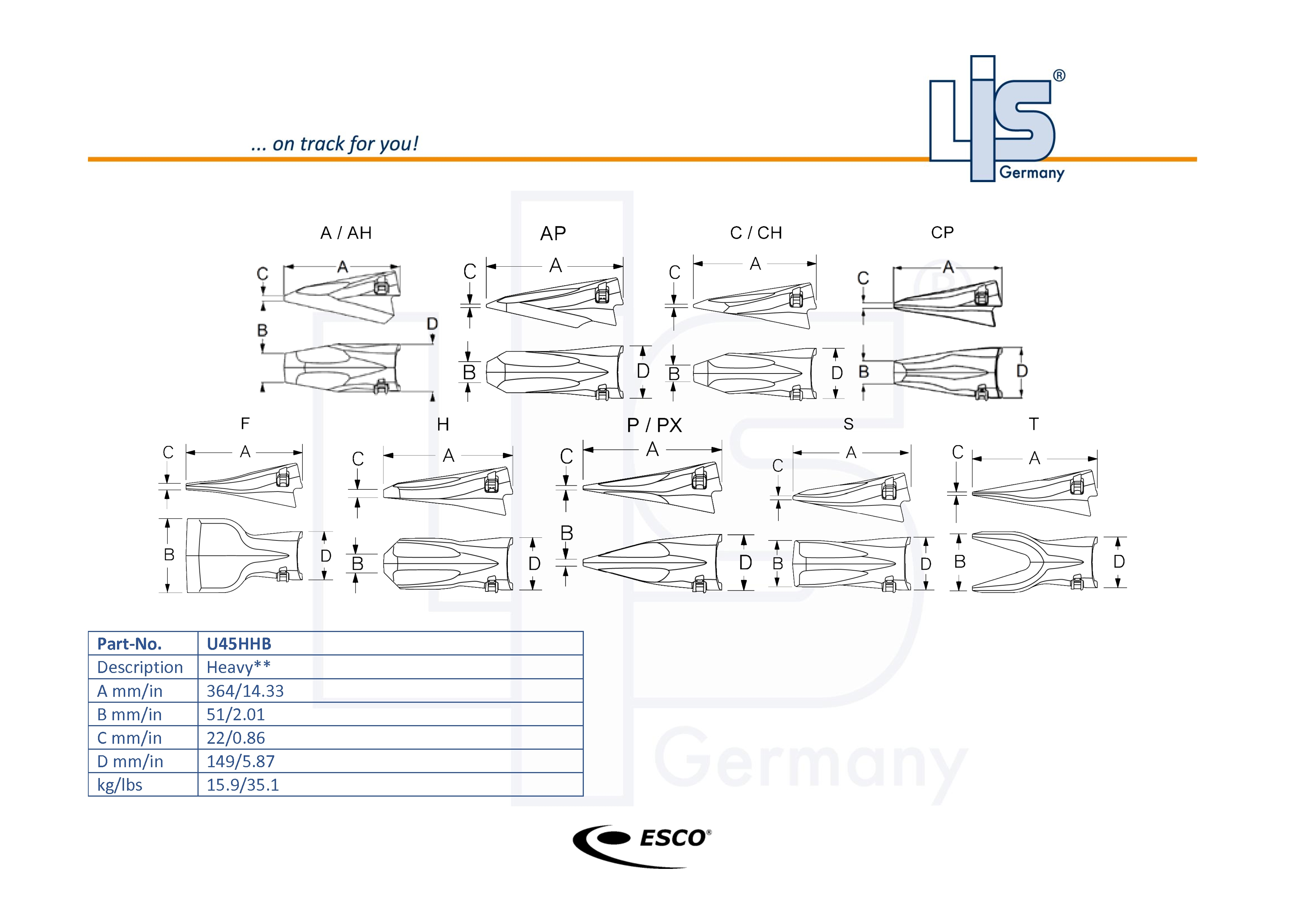

- Dimension A – Overall Length: 364 mm
- Dimension B – Cutting Edge Width: 51 mm
- Dimension C – Cutting Edge Thickness: 22 mm
- Dimension D – Outside Box Width: 149 mm
- Locking Method: bolt-in lock
| Tooth Size: | U45 |
|---|---|
| Shipping Weight: | 15.6 kg |
