ESCO® Ultralok® U45 Excavator Tooth – U45P (Pick)
Product number:
U45PHB
€257.89
incl. VAT €306.89
Product information
The ESCO® Ultralok® U45PHB is an excavator tooth for the U45 system with the Pick Tooth profile and type code P. This version uses the HB – Bolt-in Lock configuration. As a wear part within the Ultralok® tooth system, the point is seated with a form-fit connection in the tooth pocket at the adapter interface.
The pick profile is intended for hard-to-penetrate material and is primarily used on excavators. It can also be used on wheel loaders where the application requires it. The tooth point is secured to the tooth pocket by a bolt-in lock.
Technical Data
- System: ESCO® Ultralok®
- System Size: U45
- Part Number: U45PHB
- Product Type: Excavator Tooth
- Type Code: P
- Tooth Profile: Pick Tooth
- Configuration: HB – Bolt-in Lock

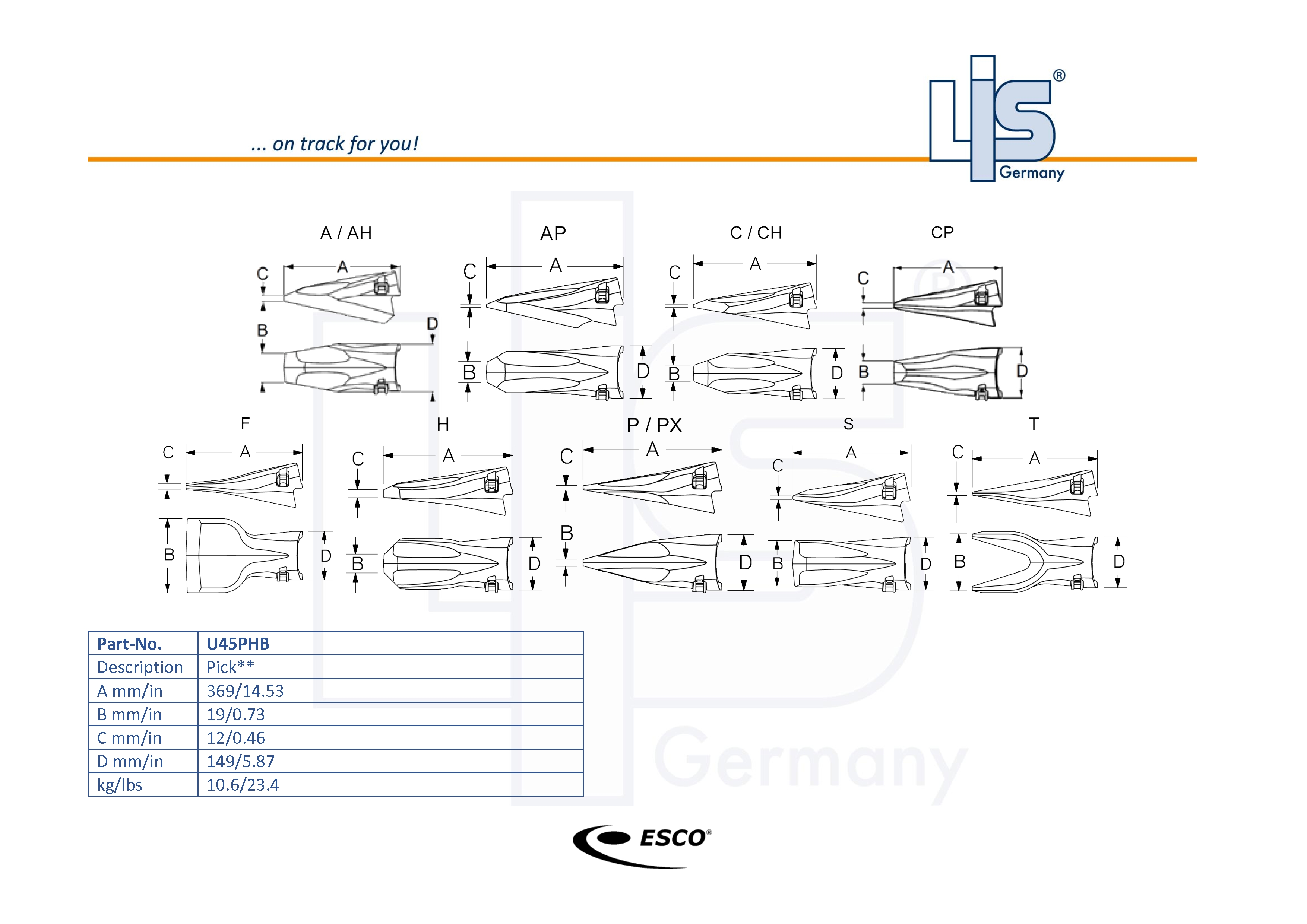

- Dimension A – Overall Length: 369 mm
- Dimension B – Cutting Edge Width: 19 mm
- Dimension C – Cutting Edge Thickness: 12 mm
- Dimension D – Outside Box Width: 149 mm
- Locking Method: bolt-in lock
| Tooth Size: | U45 |
|---|---|
| Shipping Weight: | 10.61 kg |
