ESCO® Ultralok® U40 Excavator Tooth – U40CH (Chisel Hot Slag)
Product number:
U40CH
€182.35
incl. VAT €217.00
Product information
The ESCO® Ultralok® excavator tooth U40CH is a wear part for the Ultralok® tooth system in size U40. The Chisel Hot Slag profile is intended for excavator operations in highly abrasive material and environments involving hot slag.
The tooth geometry provides a narrow cutting edge for controlled penetration and includes additional wear material in the working area of the tooth. This design supports applications with high wear loads at the bucket cutting edge. The tooth is installed through the tooth interface at the adapter interface and forms part of the Ground Engaging Tools (GET). Tooth replacement within the Ultralok® system is performed via the integrated hammerless locking mechanism.
Technical Data
- System: ESCO® Ultralok®
- System size: U40
- Part number: U40CH
- Tooth profile: CH – Chisel Hot Slag

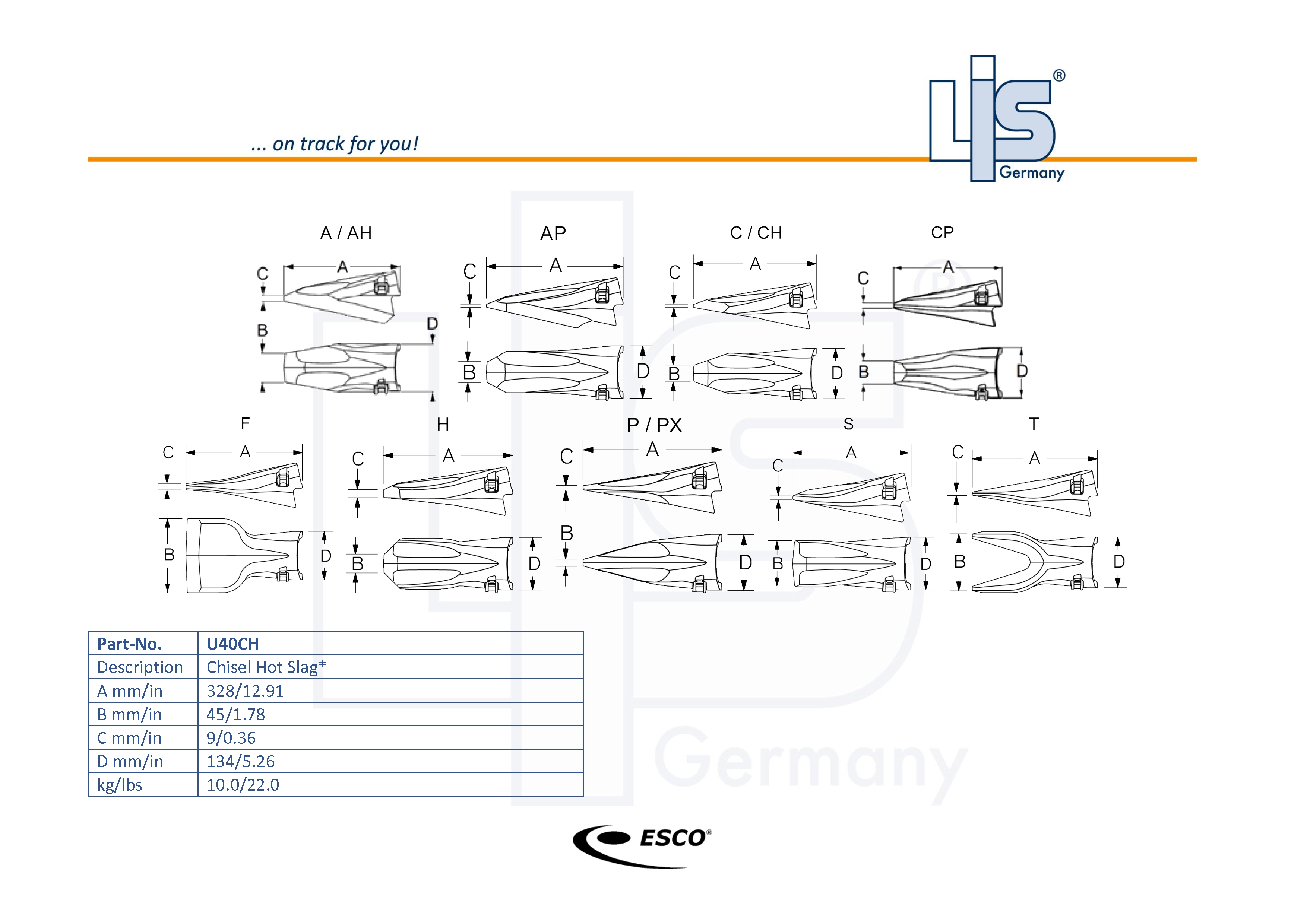

- Dimension A – Overall length: 328 mm
- Dimension B – Tip width: 45 mm
- Dimension C – Tip height / tooth thickness: 9 mm
- Dimension D – Base width / adapter interface: 134 mm
- Weight: 10 kg
| Tooth Size: | U40 |
|---|---|
| Shipping Weight: | 9.48 kg |
