ESCO® Ultralok® U40 Excavator Tooth – U40P (Pick)
Product number:
U40P
€175.81
incl. VAT €209.21
Product information
The ESCO® Ultralok® excavator tooth U40P is a wear part for the Ultralok® tooth system in size U40. The Pick profile is designed for applications requiring targeted penetration into compacted or difficult material.
The tooth is installed through the tooth interface at the adapter interface and forms part of the Ground Engaging Tools (GET). The geometry supports concentrated force transfer at the cutting edge. Tooth replacement within the Ultralok® system is performed via the integrated hammerless locking mechanism.
Technical Data
- System: ESCO® Ultralok®
- System size: U40
- Part number: U40P
- Tooth profile: P – Pick

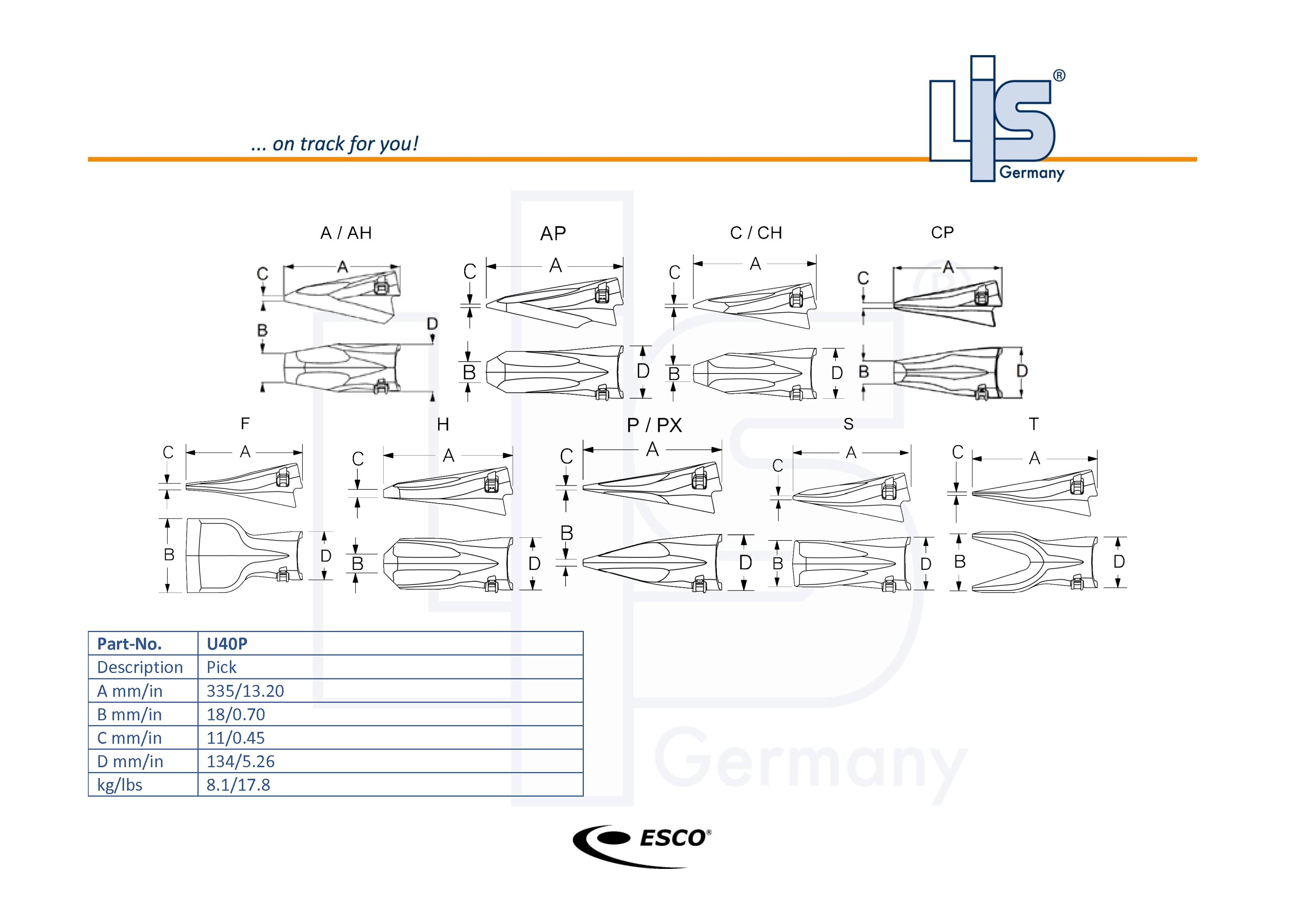

- Dimension A – Overall length: 335 mm
- Dimension B – Tip width (front cutting edge width): 18 mm
- Dimension C – Tip height / tooth thickness: 11 mm
- Dimension D – Base width (adapter interface): 134 mm
- Weight: 8.1 kg
| Tooth Size: | U40 |
|---|---|
| Shipping Weight: | 7.67 kg |
