ESCO® Ultralok® U40 Excavator Tooth – U40PHB (Pick, Heavy Back)
Product number:
U40PHB
€184.78
incl. VAT €219.89
Product information
The ESCO® Ultralok® excavator tooth U40PHB is a wear part for the Ultralok® tooth system in size U40. The Pick profile in the Heavy Back (HB) configuration is intended for applications requiring strong penetration.
The tooth is installed through the tooth interface at the adapter interface and forms part of the Ground Engaging Tools (GET). It is primarily used on excavators and can also be applied on wheel loaders depending on the application. Within the Ultralok® system the tooth can be replaced hammerlessly using the integrated locking mechanism.
Technical Data
- System: ESCO® Ultralok®
- System size: U40
- Part number: U40PHB
- Tooth profile: P – Pick
- Version: HB – Heavy Back

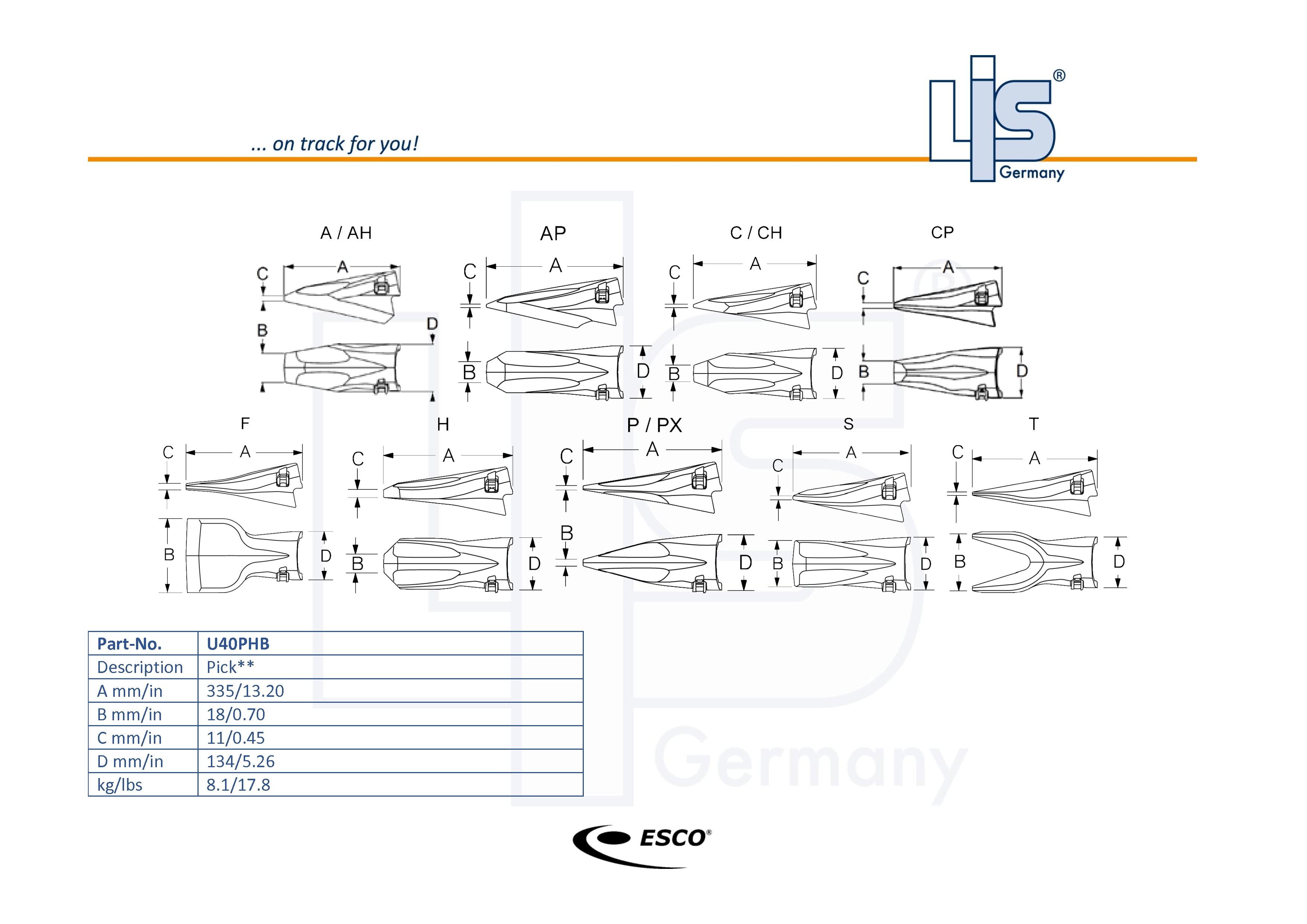

- Dimension A – Overall Length: 335 mm
- Dimension B – Tip Width (front cutting edge width): 18 mm
- Dimension C – Tip Height / Tooth Thickness: 11 mm
- Dimension D – Base Width (Adapter Interface): 134 mm
- Weight: 8.1 kg
| Tooth Size: | U40 |
|---|---|
| Shipping Weight: | 7.67 kg |
