ESCO® Ultralok® U40 Excavator Tooth – U40S (Standard)
Product number:
U40S
€187.03
incl. VAT €222.57
Product information
The ESCO® Ultralok® excavator tooth U40S is a wear part for the Ultralok® tooth system in size U40. The Standard profile is intended for general earthmoving operations and is commonly used on excavators and wheel loaders.
The tooth is installed through the tooth interface at the adapter interface and forms part of the Ground Engaging Tools (GET). Within the Ultralok® system the tooth can be replaced hammerlessly using the integrated locking mechanism.
Technical Data
- System: ESCO® Ultralok®
- System size: U40
- Part number: U40S
- Tooth profile: S – Standard

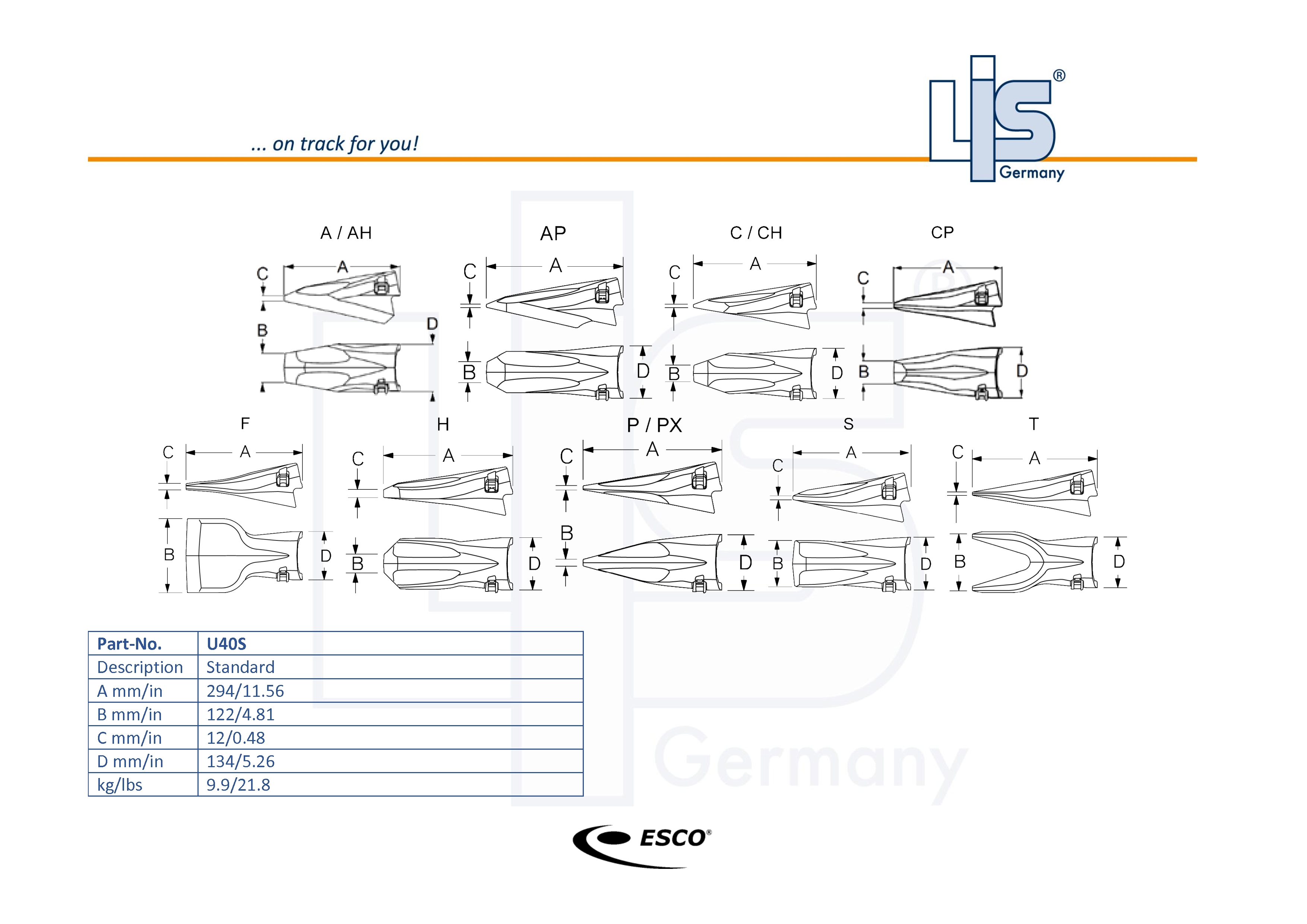

- Dimension A – Overall Length: 294 mm
- Dimension B – Tip Width (front cutting edge width): 122 mm
- Dimension C – Tip Height / Tooth Thickness: 12 mm
- Dimension D – Base Width (Adapter Interface): 134 mm
- Weight: 9.9 kg
| Tooth Size: | U40 |
|---|---|
| Shipping Weight: | 9.58 kg |
