ESCO® Ultralok® U40 Excavator Tooth – U40F (Flare)
Product number:
U40F
€251.14
incl. VAT €298.86
Product information
The ESCO® Ultralok® excavator tooth U40F is a wear part for the Ultralok® tooth system in size U40. The Flare profile is intended for applications where a wide cutting profile at the bucket edge is required.
The tooth is installed through the tooth interface at the adapter interface and is part of the Ground Engaging Tools (GET). The wide tip supports trenching and foundation excavation tasks. Within the Ultralok® system the tooth can be replaced hammerlessly using the integrated locking mechanism.
Excellent choice for trench bottoms and foundation excavations. The wide blade maximizes bucket capacity.
Technical Data
- System: ESCO® Ultralok®
- System size: U40
- Part number: U40F
- Tooth profile: F – Flare

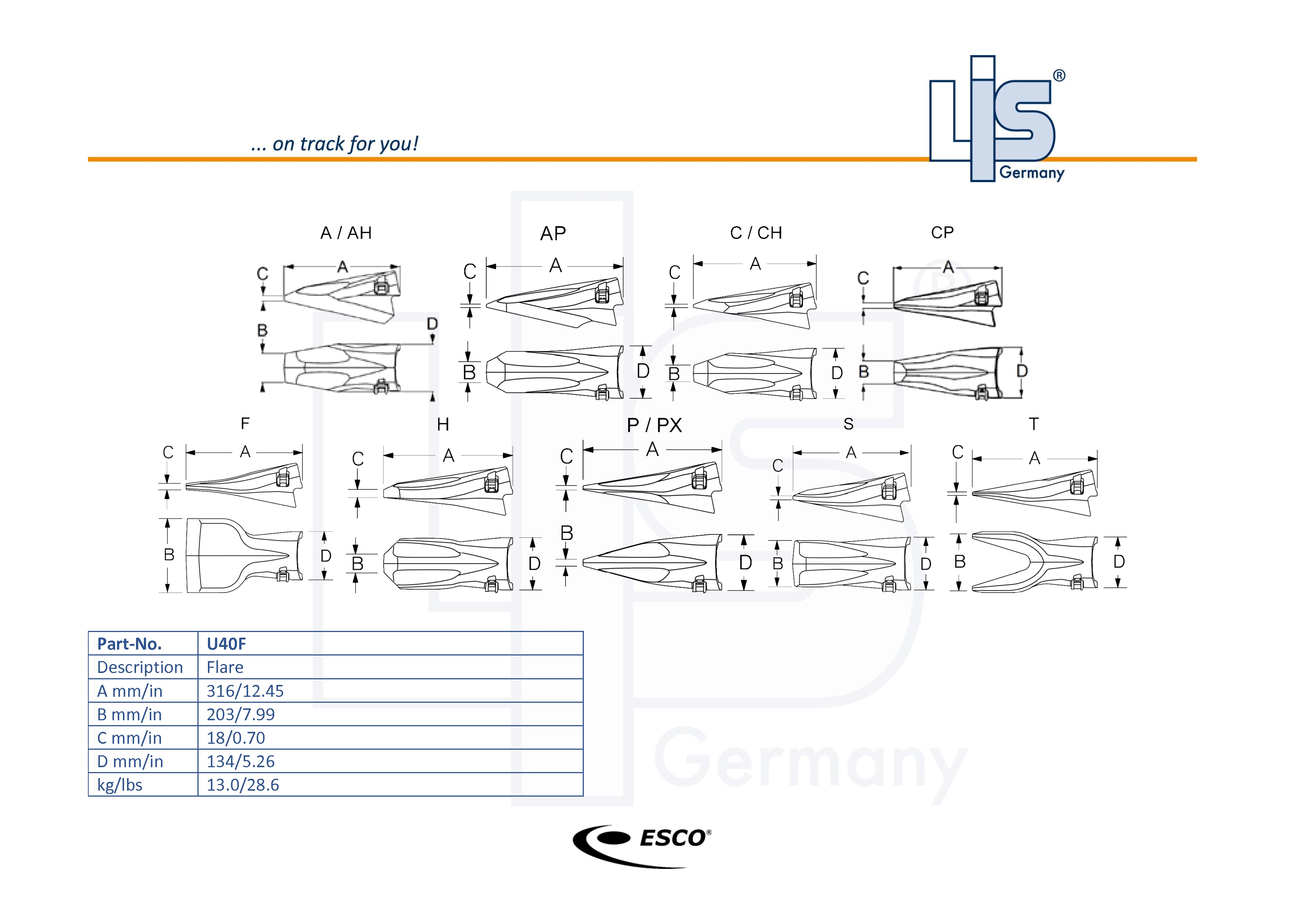

- Dimension A – Overall Length: 316 mm
- Dimension B – Tip Width (front cutting edge width): 203 mm
- Dimension C – Tip Height / Tooth Thickness: 18 mm
- Dimension D – Base Width (Adapter Interface): 134 mm
- Weight: 13 kg
| Tooth Size: | U40 |
|---|---|
| Shipping Weight: | 12.47 kg |
