ESCO® Ultralok® U40 Clamshell Tooth – U40K (Clamshell)
Product number:
U40K
€381.51
incl. VAT €454.00
Product information
The ESCO® Ultralok® clamshell tooth U40K is a wear part for the Ultralok® tooth system in size U40. The Clamshell profile is designed for use on clamshell buckets and grab attachments.
The tooth is installed through the tooth interface at the adapter interface and forms part of the Ground Engaging Tools (GET). Within the Ultralok® system, tooth replacement is carried out via the integrated hammerless locking mechanism.
Technical Data
- System: ESCO® Ultralok®
- System size: U40
- Part number: U40K
- Tooth profile: K – Clamshell

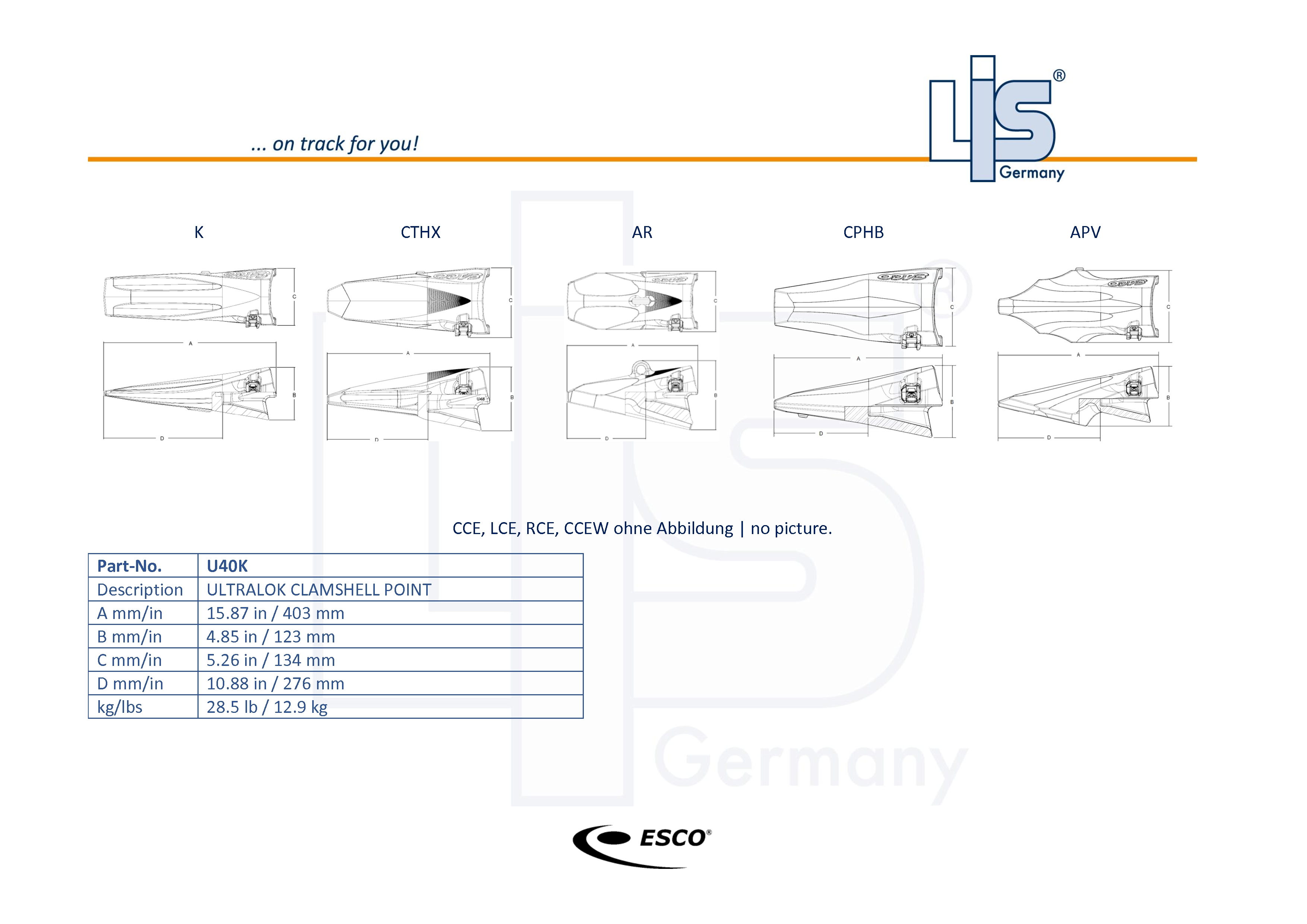

- Dimension A – Overall length: 403 mm
- Dimension B – Tip width: 123 mm
- Dimension C – Tip height / tooth thickness: 134 mm
- Dimension D – Base width / adapter interface: 276 mm
- Weight: 12.9 kg
| Tooth Size: | U40 |
|---|---|
| Shipping Weight: | 12.93 kg |
