ESCO® Ultralok® U30 Sharp Loader Tooth – U30APHB (AP | Heavy Back)
Product number:
U30APHB
€130.82
incl. VAT €155.68
Product information
The ESCO® Ultralok® U30APHB is a wear part for the Ultralok® tooth system in size U30. The AP – Abrasion Penetration profile is designed for wheel loader applications requiring high penetration performance in highly abrasive materials.
The HB – Heavy Back version indicates a reinforced rear section of the tooth body. The tooth fits form-locking into the tooth pocket at the adapter interface and forms part of the Ground Engaging Tools (GET). Tooth replacement within the Ultralok® tooth system is hammerless via the integrated locking mechanism.
Technical Data:
- System: ESCO® Ultralok®
- System Size: U30
- Part Number: U30APHB
- Tooth Profile: AP – Abrasion Penetration
- Version: HB – Heavy Back

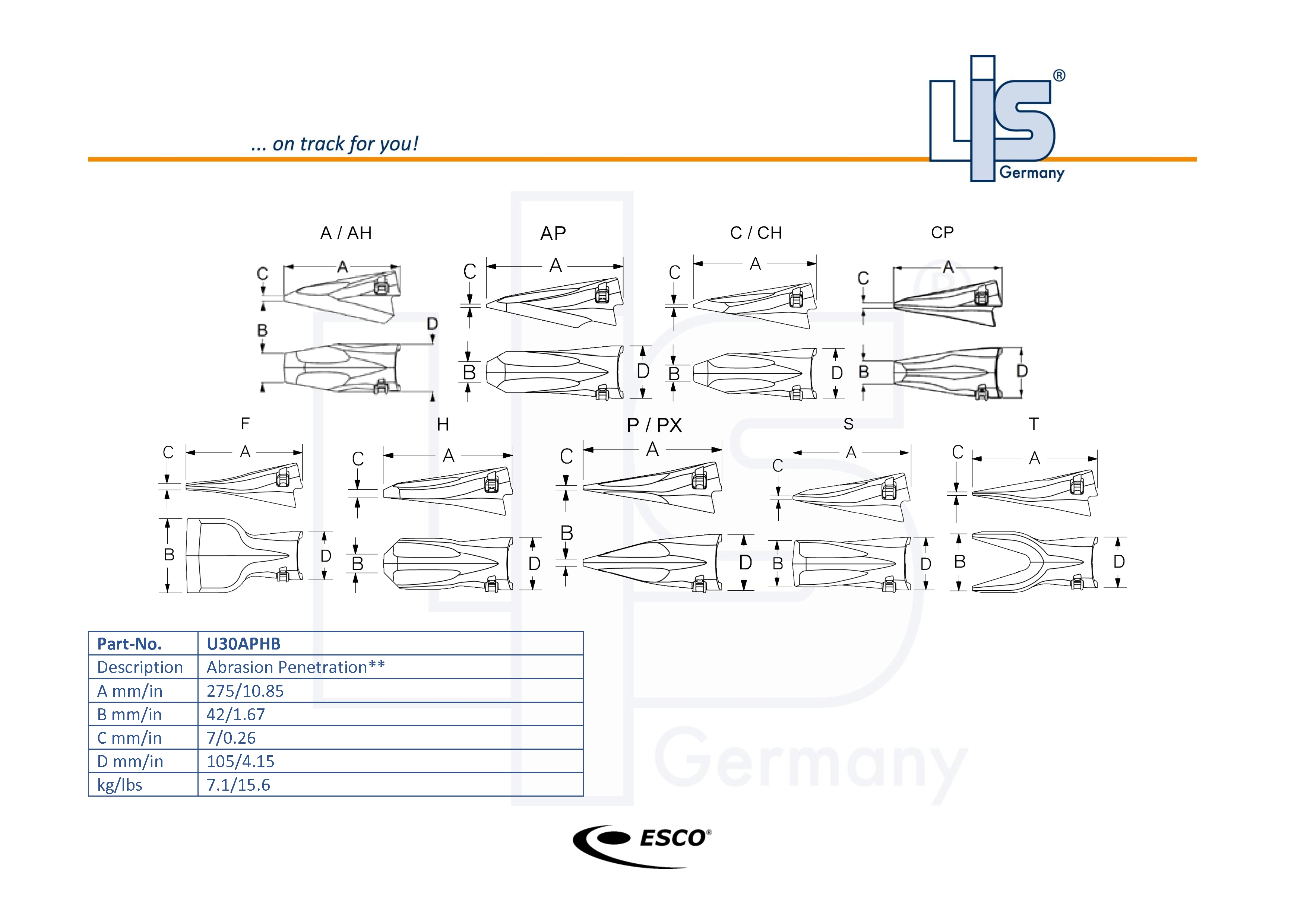

- Dimension A – Overall length: 275 mm
- Dimension B – Tip width: 42 mm
- Dimension C – Tip height / thickness: 7 mm
- Dimension D – Base width / pocket width: 105 mm
- Weight: 7.1 kg
| Tooth Size: | U30 |
|---|---|
| Shipping Weight: | 6.8 kg |
