ESCO® Ultralok® U30 Loader Tooth – U30AHB (Abrasion | Heavy Back)
Product number:
U30AHB
€153.02
incl. VAT €182.09
Product information
The ESCO® Ultralok® U30AHB is a wear part for the Ultralok® tooth system in size U30. The A / AH (Abrasion) profile is designed for wheel loader applications, particularly in highly abrasive materials.
The HB – Heavy Back version indicates a reinforced rear section of the tooth body. The tooth fits form-locking into the tooth pocket at the adapter interface and forms part of the Ground Engaging Tools (GET). Tooth replacement within the Ultralok® tooth system is hammerless via the integrated locking mechanism.
Technical Data:
- System: ESCO® Ultralok®
- System Size: U30
- Part Number: U30AHB
- Tooth Profile: A / AH – Abrasion
- Version: HB – Heavy Back

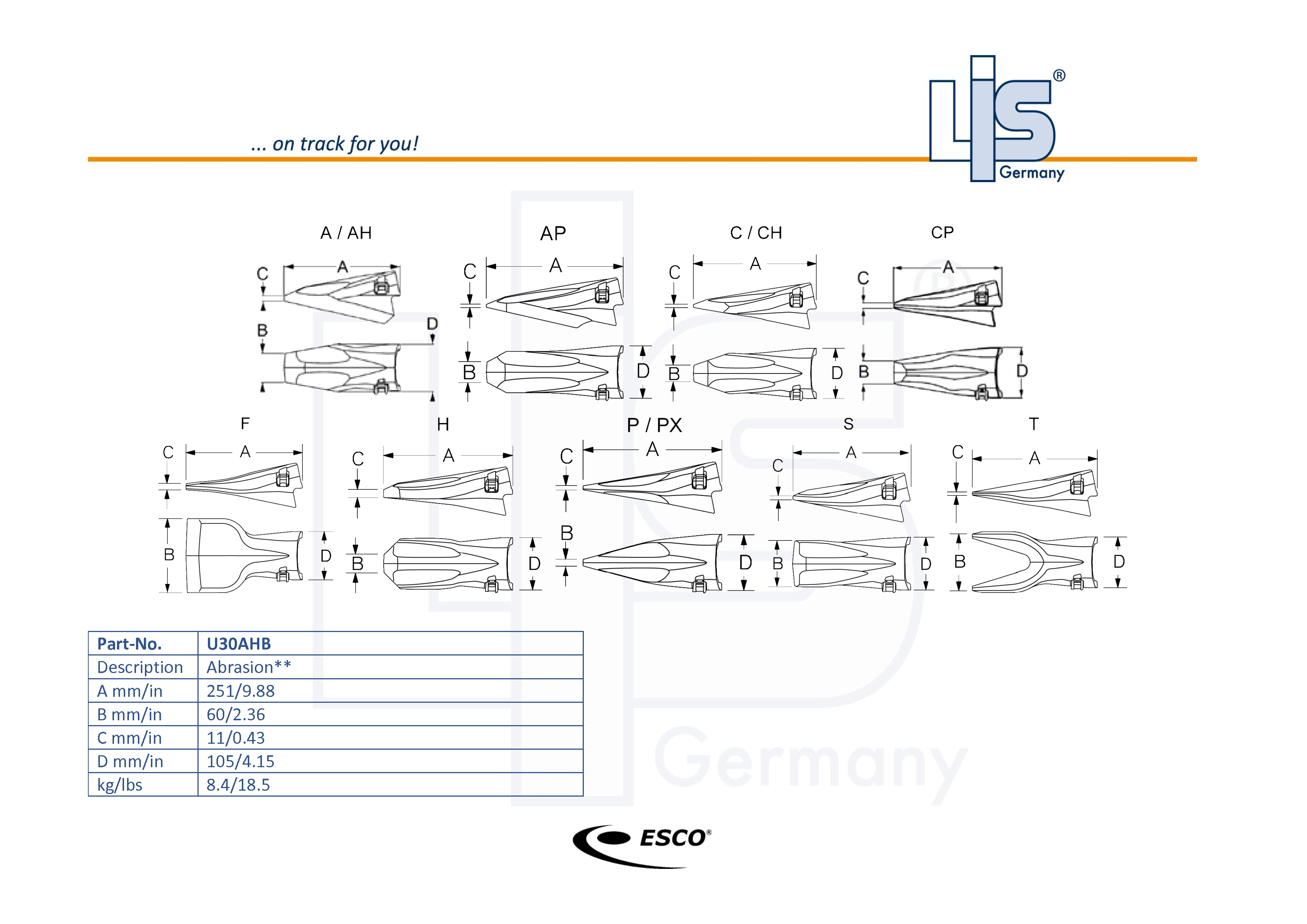

- Dimension A – Overall length: 251 mm
- Dimension B – Tip width: 60 mm
- Dimension C – Tip height / thickness: 11 mm
- Dimension D – Base width / pocket width: 105 mm
- Weight: 8.4 kg
| Tooth Size: | U30 |
|---|---|
| Shipping Weight: | 8.39 kg |
