ESCO® Ultralok® U30 Excavator Tooth – U30FHB (Flare Heavy Back)
Product number:
U30FHB
€163.00
incl. VAT €193.97
Product information
The ESCO® Ultralok® U30FHB is a wear part for the Ultralok® tooth system in size U30. The F – Flare profile is designed for wide cutting applications, particularly trenching and foundation work.
The wide geometry increases cutting width at the bucket. The HB – Heavy Back version indicates a reinforced rear section of the tooth body. The tooth fits form-locking into the tooth pocket at the adapter interface and forms part of the Ground Engaging Tools (GET). Tooth replacement within the Ultralok® tooth system is hammerless via the integrated locking mechanism.
Technical Data:
- System: ESCO® Ultralok®
- System Size: U30
- Part Number: U30FHB
- Tooth Profile: F – Flare (Spade)
- Version: HB – Heavy Back

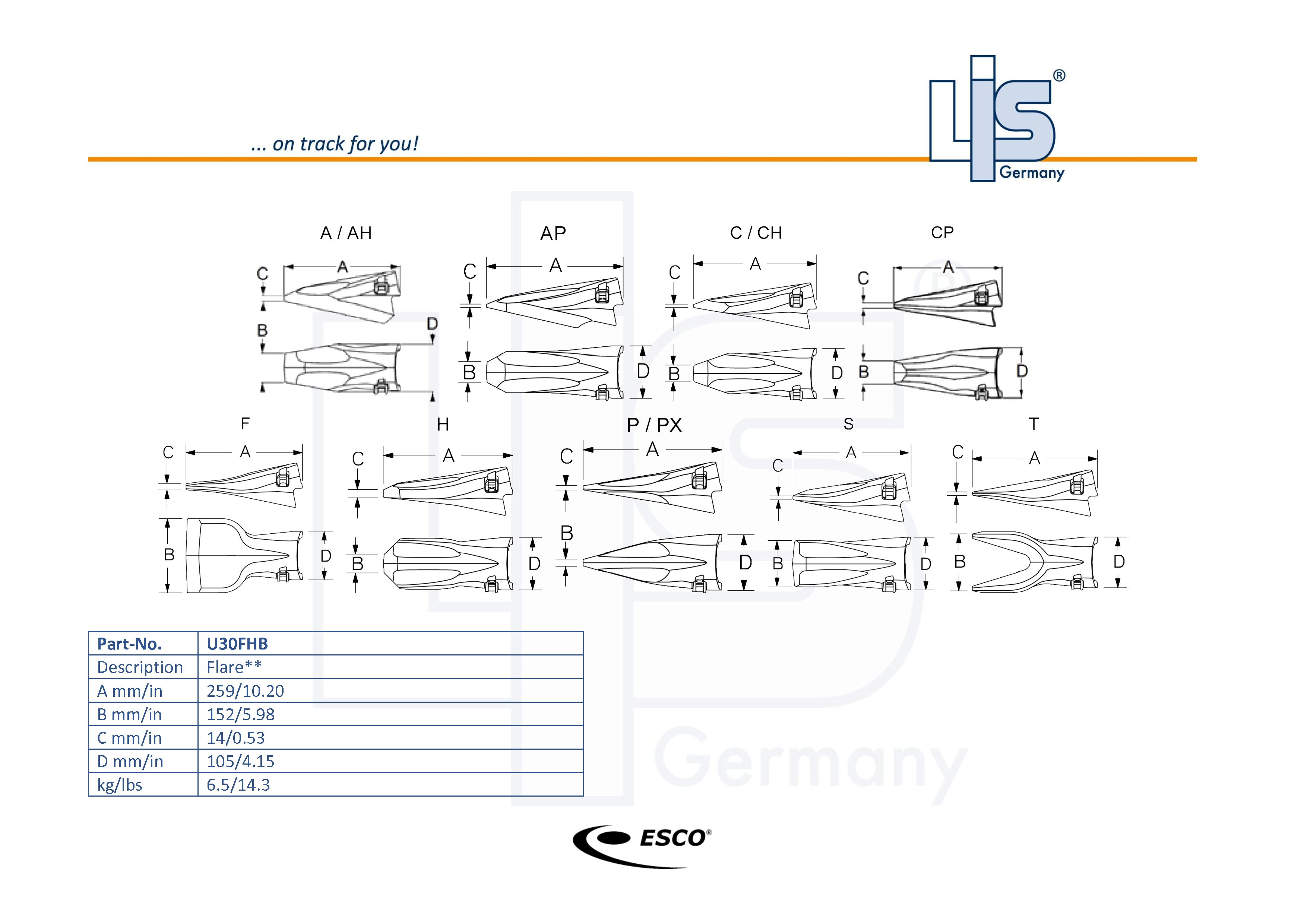

- Dimension A – Overall length: 259 mm
- Dimension B – Tip width: 152 mm
- Dimension C – Tip height / thickness: 14 mm
- Dimension D – Base width / pocket width: 105 mm
- Weight: 6.5 kg
| Tooth Size: | U30 |
|---|---|
| Shipping Weight: | 6.21 kg |
