ESCO® Ultralok® U25 Excavator Tooth – U25T (Twin Pick)
Product number:
U25T
€85.87
incl. VAT €102.19
Product information
The ESCO® Ultralok® U25T is a wear part for the Ultralok® tooth system in size U25. The T – Twin Pick profile is designed for applications requiring increased penetration.
The tooth is installed in the tooth pocket of the matching adapter and forms part of the Ground Engaging Tools (GET). It can be used in combination with P-type teeth on the outer bucket positions. Replacement is hammerless via the integrated locking mechanism.
Technical Data
- System: ESCO® Ultralok®
- System Size: U25
- Part Number: U25T
- Tooth Type: T – Twin Pick

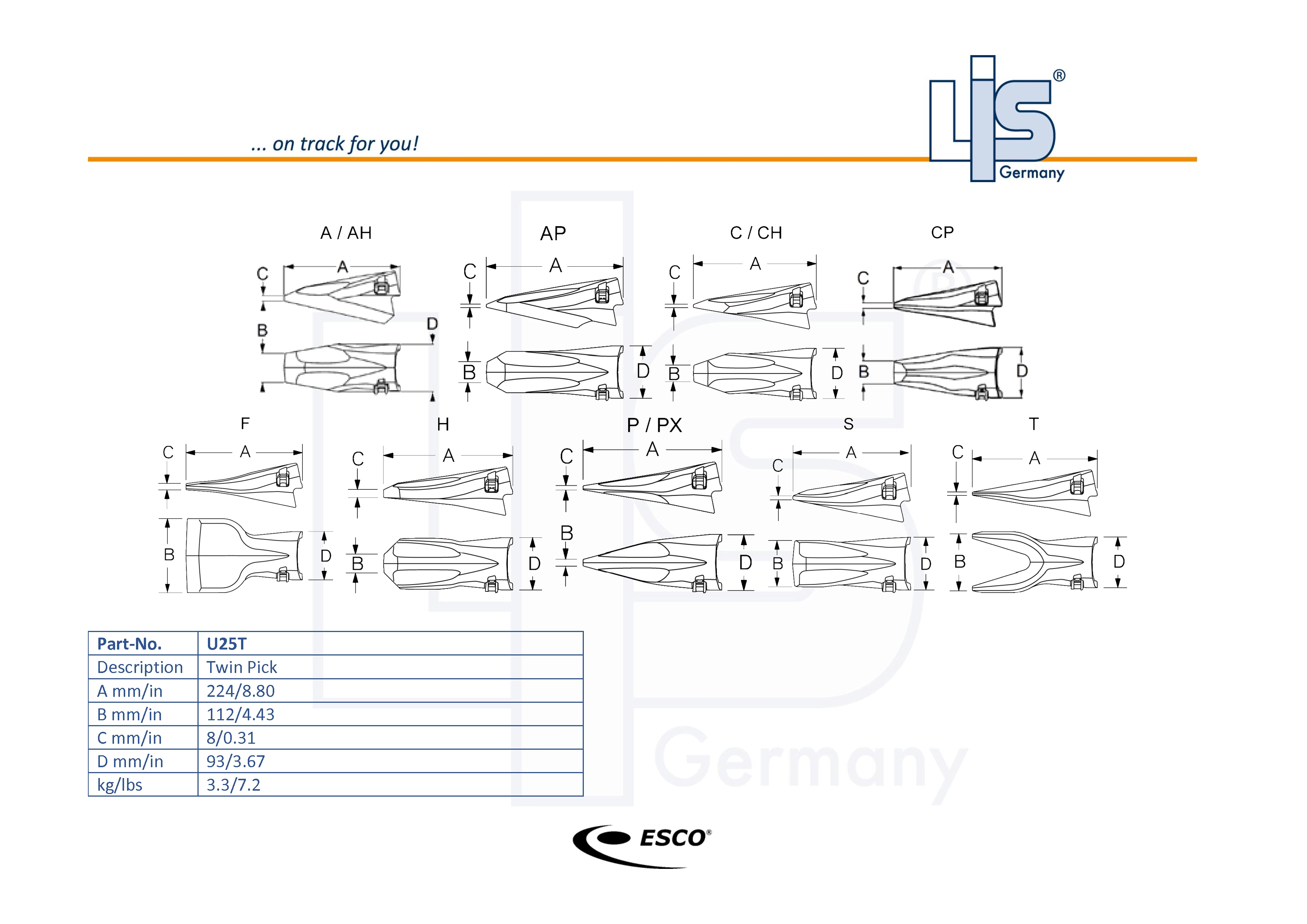

- Dimension A – Overall Length: 224 mm
- Dimension B – Tip Width (front cutting edge width): 112 mm
- Dimension C – Tip Height / Tooth Thickness: 8 mm
- Dimension D – Base Width (Adapter Interface): 93 mm
- Weight: 3.3 kg
- Locking System: integrated, hammerless
| Tooth Size: | U25 |
|---|---|
| Shipping Weight: | 3.29 kg |
