ESCO® Ultralok® U25 Loader Tooth – U25A (Abrasion)
Product number:
U25A
€98.47
incl. VAT €117.18
Product information
The ESCO® Ultralok® U25A is a wear part for the Ultralok® tooth system in size U25. The A – Abrasion profile is designed for loader applications in highly abrasive materials.
The tooth is installed in the tooth pocket of the matching adapter and forms part of the Ground Engaging Tools (GET). The geometry supports consistent material flow and a level working surface. Replacement is hammerless via the integrated locking mechanism.

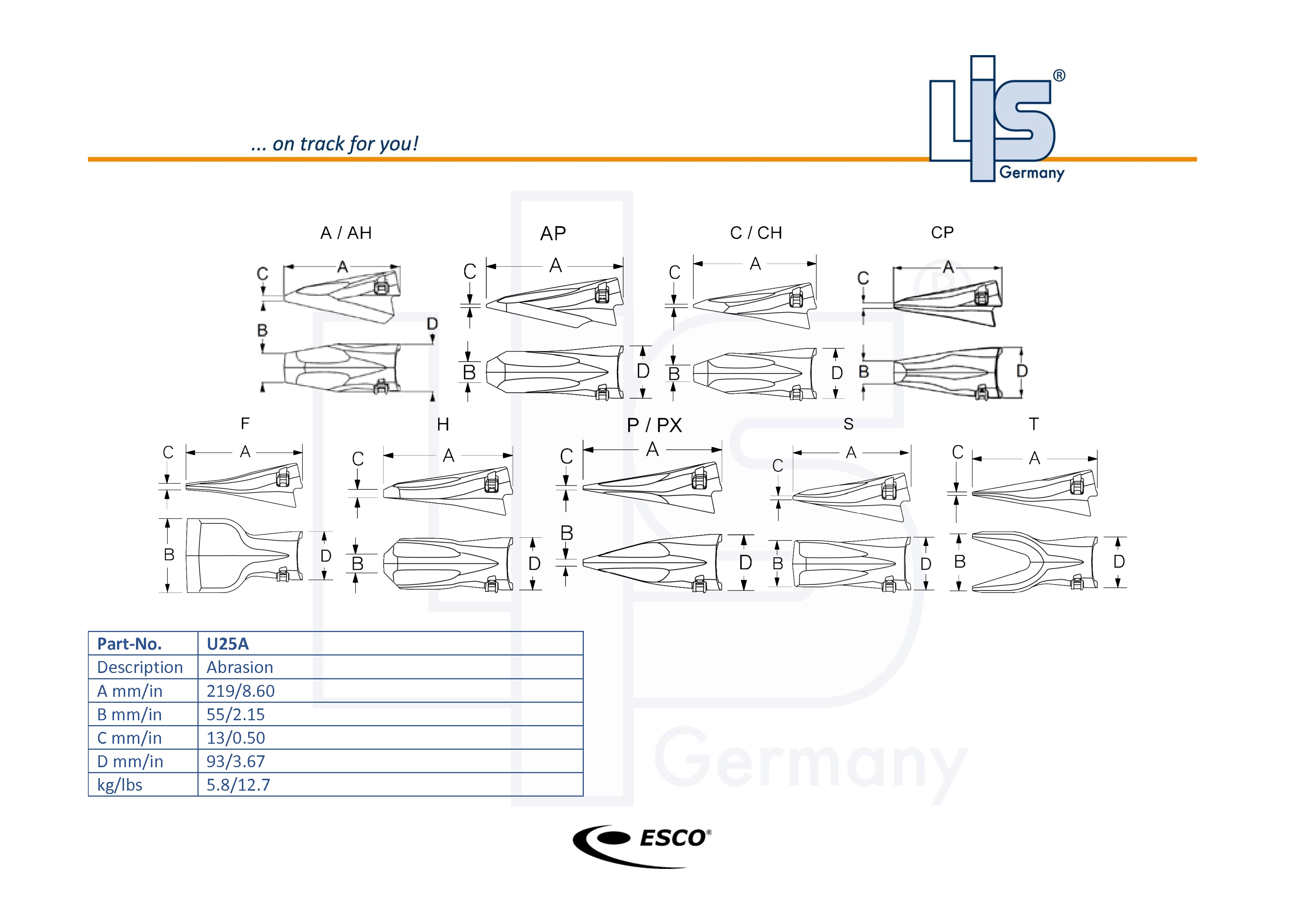

Technical Data
- System: ESCO® Ultralok®
- System Size: U25
- Part Number: U25A
- Tooth Type: A – Abrasion
- Dimension A – Overall Length: 219 mm
- Dimension B – Tip Width (front cutting edge width): 55 mm
- Dimension C – Tip Height / Tooth Thickness: 13 mm
- Dimension D – Base Width (Adapter Interface): 93 mm
- Weight: 5.8 kg
- Locking System: integrated, hammerless
| Tooth Size: | U25 |
|---|---|
| Shipping Weight: | 5.44 kg |
