MANN+HUMMEL air filter 4532592304 (Piclon)
Product number:
ELS-2300
€1,259.44
incl. VAT €1,498.73
Available, delivery time: 2-5 days
Product information
| Construction / Image: | 1 |
|---|---|
| Housing lower part - material: | steel |
| Lower housing section: | With dust collection container |
| Manufacturer: | MANN+HUMMEL |
| Nominal flow rate [m³/min]: | 12 |
| Output diameter [mm]: | 100 |
| Permissible continuous operating temperature: | -40°C to +100°C |
| Weight [kg]: | 7,2 |
| Gehäuse - Werkstoff: | St |
| Einlassdurchmesser [mm]: | 102 |
| Filterelement: | C 20 325/2 |

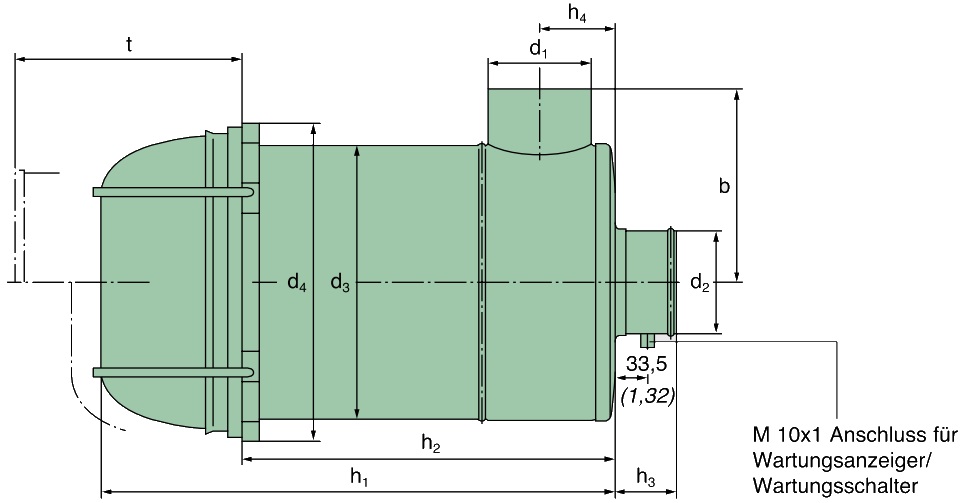

| b: | 180 |
| d1: | 102 |
| d2: | 100 |
| d3: | 255 |
| d4: | 272 |
| h1: | 476 |
| h2: | 375 |
| h3: | 90 |
| h4: | 75 |
| t: | 390 |
| Shipping Weight: | 7.2 kg |
