MANN+HUMMEL air filter 4522592314 (Piclon)
Product number:
ELS-1432
€1,081.60
incl. VAT €1,287.10
Product information
| Construction / Image: | 3 |
|---|---|
| Housing lower part - material: | steel |
| Lower housing section: | With small dust discharge valve |
| Manufacturer: | MANN+HUMMEL |
| Nominal flow rate [m³/min]: | 8 |
| Output diameter [mm]: | 80 |
| Permissible continuous operating temperature: | -40°C to +100°C |
| Weight [kg]: | 5,15 |
| Gehäuse - Werkstoff: | St |
| Einlassdurchmesser [mm]: | 82 |
| Filterelement: | C 17 225/3 |

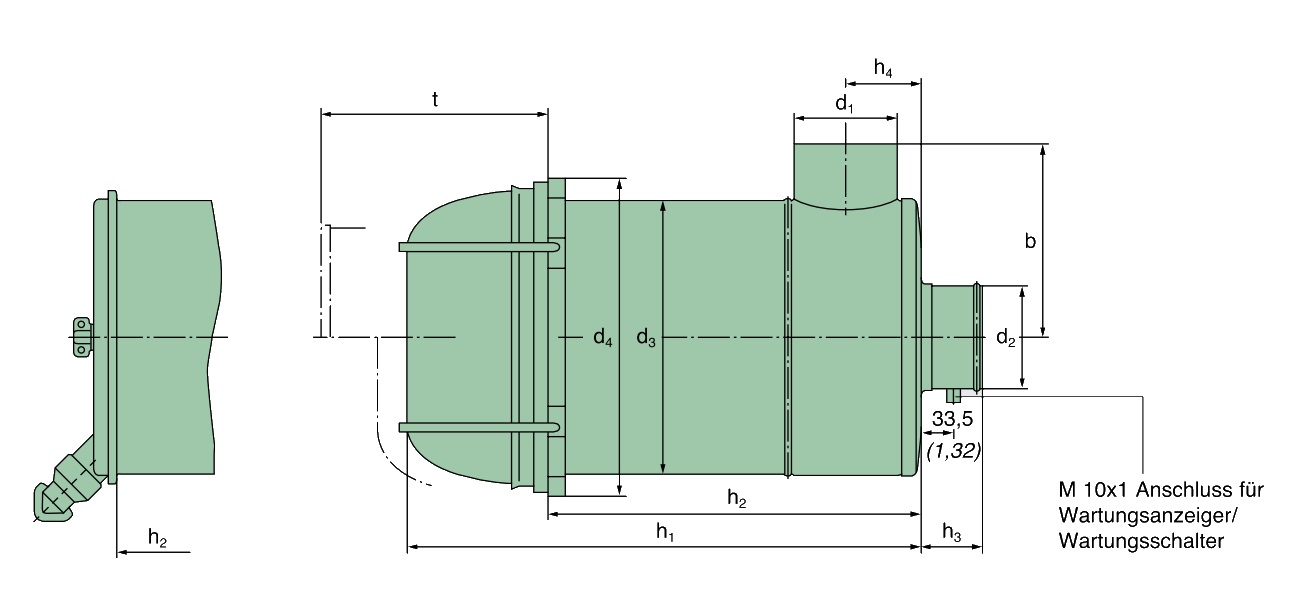

| b: | 155 |
| d1: | 82 |
| d2: | 80 |
| d3: | 215 |
| d4: | 232 |
| h1: | 442 |
| h2: | 350 |
| h3: | 80 |
| h4: | 65 |
| t: | 365 |
| Shipping Weight: | 5.15 kg |
