MANN+HUMMEL air filter 4520092920 (Europiclon)
Product number:
ELS-1726
€63.05
incl. VAT €75.03
Product information

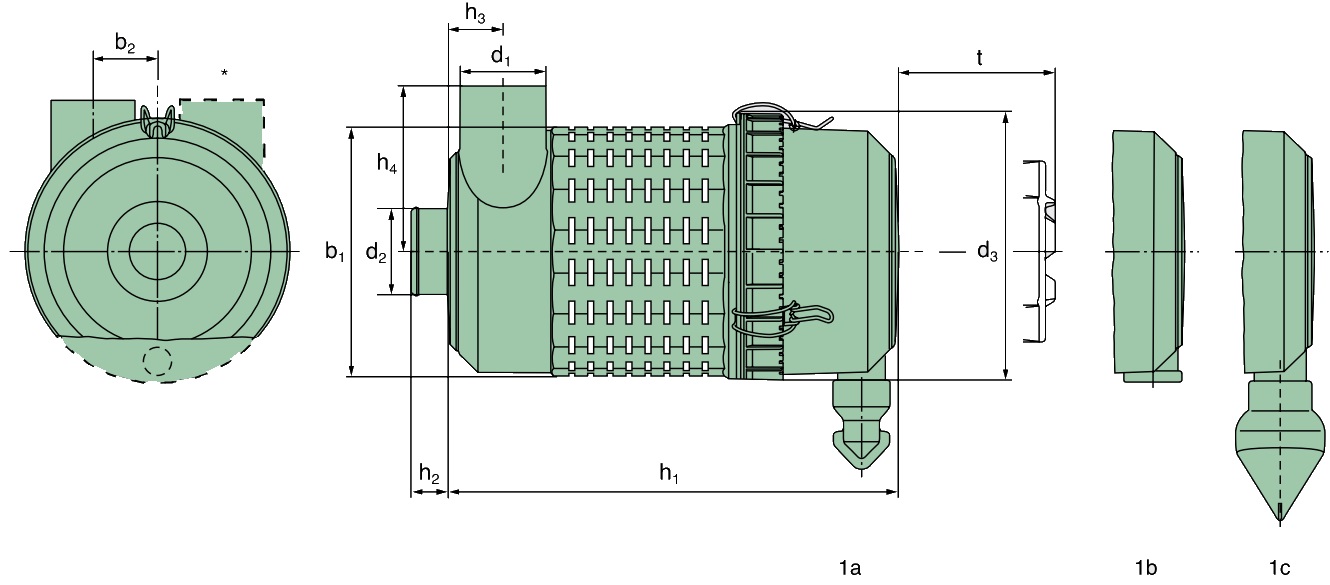

| Construction / Image: | 1b |
|---|---|
| Lower housing section: | With umbrella valve |
| Manufacturer: | MANN+HUMMEL |
| Mounting position: | Any |
| Output diameter [mm]: | 60 |
| Permissible continuous operating temperature: | -40°C to +80°C |
| Weight [kg]: | 1,51 |
| b2: | 48 |
| Markenname: | Europiclon |
| Einsatzbereich: | air filtration |
| Gehäuse - Werkstoff: | Plastic |
| Einlassdurchmesser [mm]: | 62 |
| Gehäuselänge [mm]: | 327 |
| min. Durchflussbereich [m³/min]: | 2 |
| max. Durchflussbereich [m³/min]: | 4,5 |
| Filterelement: | C 14 200 |
| b1: | 173 |
| d1: | 62 |
| d2: | 60 |
| d3: | 198 |
| h1: | 327 |
| h2: | 27 |
| h3: | 42 |
| h4: | 112 |
| t: | 304 |
| Shipping Weight: | 1.51 kg |
