MANN+HUMMEL air filter 4511492414 (Piclon)
Product number:
ELS-4524
€1,013.74
incl. VAT €1,206.35
Product information
| Construction / Image: | 3 |
|---|---|
| Housing lower part - material: | steel |
| Lower housing section: | With small dust discharge valve |
| Manufacturer: | MANN+HUMMEL |
| Nominal flow rate [m³/min]: | 4,5 |
| Output diameter [mm]: | 60 |
| Permissible continuous operating temperature: | -40°C to +100°C |
| Secondary element: | CF 600 |
| Weight [kg]: | 3,24 |
| Gehäuse - Werkstoff: | St |
| Einlassdurchmesser [mm]: | 62 |
| Filterelement: | C 13 114/4 |

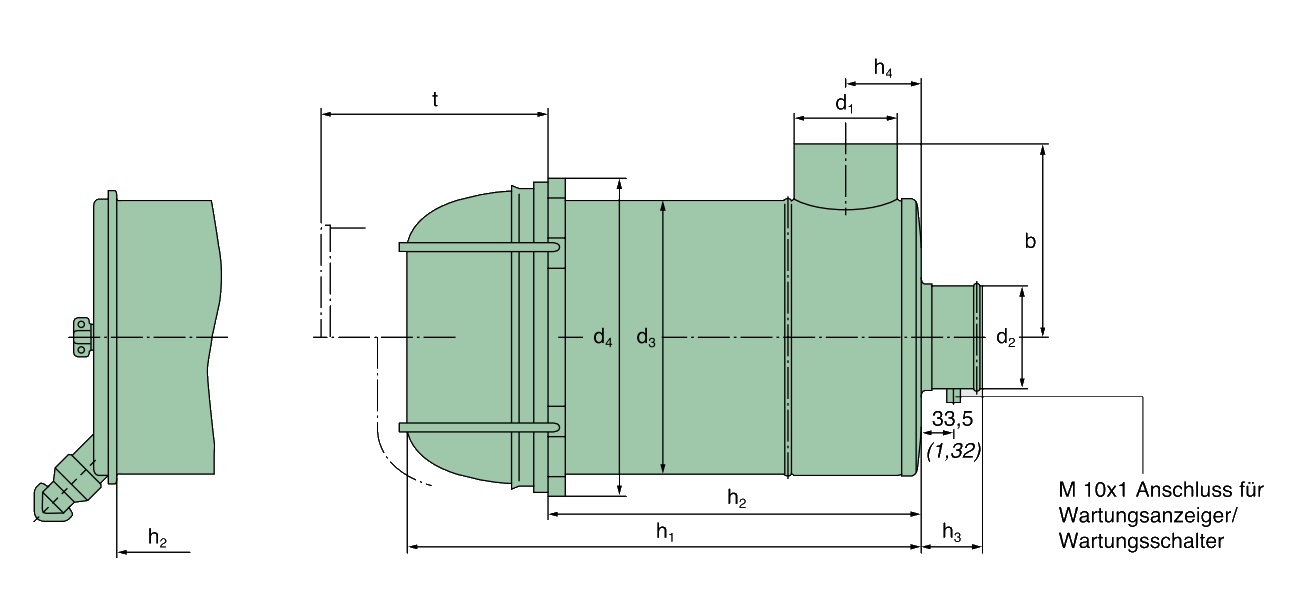

| b: | 120 |
| d1: | 62 |
| d2: | 60 |
| d3: | 165 |
| d4: | 182 |
| h1: | 360 |
| h2: | 291 |
| h3: | 70 |
| h4: | 50 |
| t: | 305 |
| Shipping Weight: | 3.24 kg |
