MANN+HUMMEL air filter 4507692304 (Piclon)
Product number:
ELS-1234
€457.34
incl. VAT €544.23
Product information
| Construction / Image: | 1 |
|---|---|
| Housing lower part - material: | steel |
| Lower housing section: | With dust collection container |
| Manufacturer: | MANN+HUMMEL |
| Nominal flow rate [m³/min]: | 3 |
| Output diameter [mm]: | 50 |
| Permissible continuous operating temperature: | -40°C to +100°C |
| Weight [kg]: | 2,06 |
| Gehäuse - Werkstoff: | St |
| Einlassdurchmesser [mm]: | 54 |
| Filterelement: | C 1176/3 |

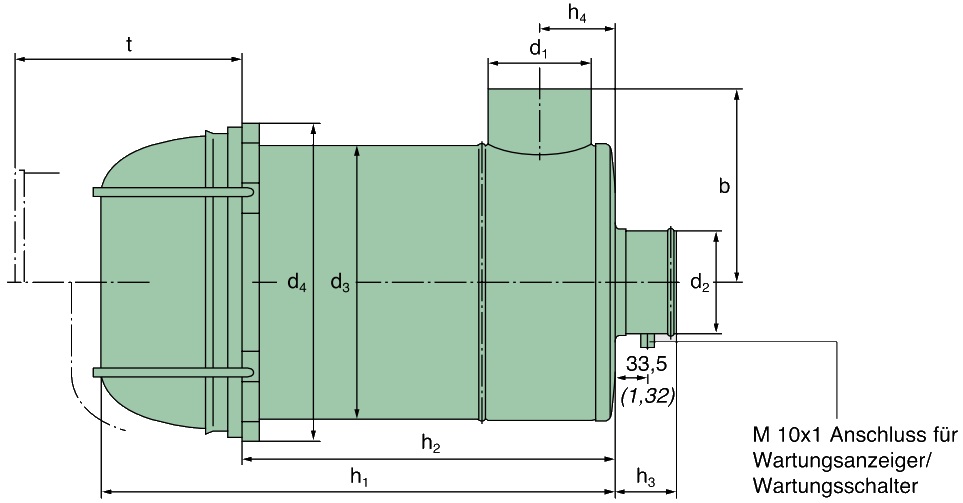

| b: | 105 |
| d1: | 54 |
| d2: | 50 |
| d3: | 140 |
| d4: | 157 |
| h1: | 300 |
| h2: | 224 |
| h3: | 70 |
| h4: | 45 |
| t: | 250 |
| Shipping Weight: | 2.06 kg |
