MANN+HUMMEL air filter 4492092906 (Piclon NLG 28-28)
Product number:
ELS-45022
€450.45
incl. VAT €536.04
Product information
| Inlet: | port position right / connecting piece right |
|---|---|
| Lower housing section: | With umbrella valve |
| Manufacturer: | MANN+HUMMEL |
| Output diameter [mm]: | 150 |
| Permissible continuous operating temperature: | -40°C to +80°C |
| Weight [kg]: | 5,7 |

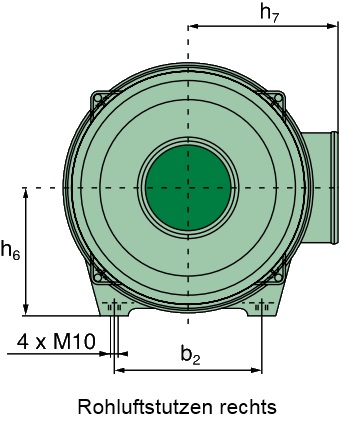

| b2: | 200 |
| h6: | 185 |
| t1: | 296 |
| Markenname: | NLG Piclon |
| Einsatzbereich: | air filtration |
| Gehäuse - Werkstoff: | PP-GF30 |
| Einlassdurchmesser [mm]: | 180 |
| Gehäuselänge [mm]: | 480 |
| min. Durchflussbereich [m³/min]: | 20 |
| max. Durchflussbereich [m³/min]: | 28 |
| Filterelement: | C 26 980 |
| Halter: | Fest an Gehäuse angebracht |
| b1: | 210 |
| d1: | 180 |
| d2: | 150 |
| h5: | 91 |
| d3: | 365 |
| d4: | 349 |
| h1: | 480 |
| h2: | 295 |
| h7: | 215 |
| h3: | 33 |
| h4: | 163 |
| Shipping Weight: | 5.7 kg |
