MANN+HUMMEL air filter 4492085959 (Piclon NLG 28-32)
Product number:
ELS-47271
€473.59
incl. VAT €563.57
Product information

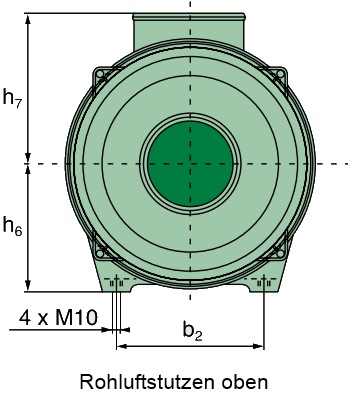

| Inlet: | port position on top / connecting piece on top |
|---|---|
| Manufacturer: | MANN+HUMMEL |
| Output diameter [mm]: | 150 |
| Permissible continuous operating temperature: | -40°C to +80°C |
| Secondary element: | CF 1650 |
| Weight [kg]: | 5 |
| b2: | 200 |
| h6: | 185 |
| t2: | 501 |
| Markenname: | NLG Pico |
| Einsatzbereich: | air filtration |
| Gehäuse - Werkstoff: | Plastic |
| Einlassdurchmesser [mm]: | 180 |
| Gehäuselänge [mm]: | 533 |
| min. Durchflussbereich [m³/min]: | 18 |
| max. Durchflussbereich [m³/min]: | 30 |
| Filterelement: | C 27 1320/2 |
| b1: | 210 |
| d1: | 180 |
| d2: | 150 |
| h5: | 91 |
| d3: | 365 |
| d4: | 349 |
| h1: | 533 |
| h2: | 295 |
| h7: | 215 |
| h3: | 33 |
| h4: | 163 |
| Shipping Weight: | 5 kg |
