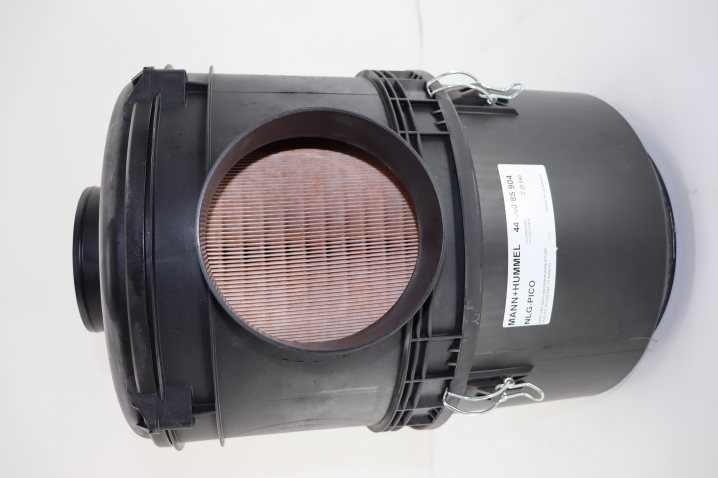

MANN+HUMMEL air filter 4486085904 (Pico NLG 21-24)
Product number:
ELS-17153
€333.58
incl. VAT €396.96
Available, delivery time: 2-5 days
Product information
| Inlet: | port position on top / connecting piece on top |
|---|---|
| Lower housing section: | With umbrella valve |
| Manufacturer: | MANN+HUMMEL |
| Output diameter [mm]: | 130 |
| Permissible continuous operating temperature: | -40°C to +80°C |
| Weight [kg]: | 4,845 |

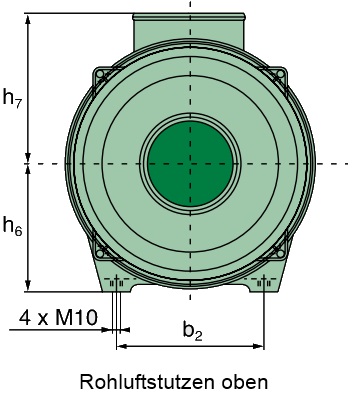

| b2: | 200 |
| h6: | 173 |
| t1: | 260 |
| Markenname: | NLG Pico |
| Einsatzbereich: | air filtration |
| Gehäuse - Werkstoff: | PP-GF30 |
| Einlassdurchmesser [mm]: | 150 |
| Gehäuselänge [mm]: | 465 |
| min. Durchflussbereich [m³/min]: | 12 |
| max. Durchflussbereich [m³/min]: | 24 |
| Filterelement: | C 25 990 |
| Halter: | Fest an Gehäuse angebracht |
| b1: | 175 |
| d1: | 150 |
| d2: | 130 |
| h5: | 91 |
| d3: | 339 |
| d4: | 323 |
| h1: | 465 |
| h2: | 260 |
| h7: | 203 |
| h3: | 33 |
| h4: | 145,5 |
| Shipping Weight: | 4.845 kg |
