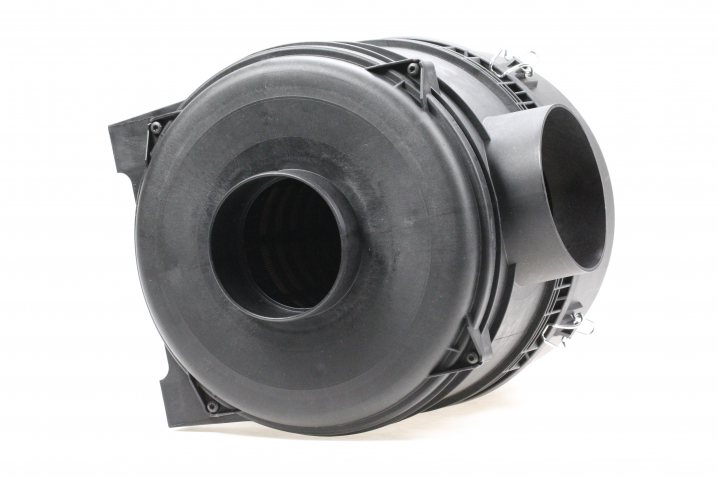

MANN+HUMMEL air filter 4463285900 (Pico NLG 15-15)
Product number:
ELS-5629
€233.74
incl. VAT €278.15
Available, delivery time: 2-5 days
Product information
| Inlet: | port position on top / connecting piece on top |
|---|---|
| Lower housing section: | With umbrella valve |
| Manufacturer: | MANN+HUMMEL |
| Output diameter [mm]: | 110 |
| Permissible continuous operating temperature: | -40°C to +80°C |
| Weight [kg]: | 3,65 |

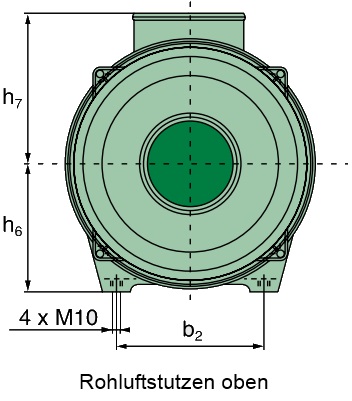

| b2: | 200 |
| h6: | 153 |
| t1: | 230 |
| Markenname: | NLG Pico |
| Einsatzbereich: | air filtration |
| Gehäuse - Werkstoff: | PP-GF 30 |
| Einlassdurchmesser [mm]: | 130 |
| Gehäuselänge [mm]: | 360 |
| min. Durchflussbereich [m³/min]: | 10 |
| max. Durchflussbereich [m³/min]: | 18 |
| Filterelement: | C 23 632/1 |
| b1: | 140 |
| d1: | 130 |
| d2: | 110 |
| h5: | 91 |
| d3: | 299 |
| d4: | 285 |
| h1: | 360 |
| h2: | 228 |
| h7: | 182 |
| h3: | 33 |
| h4: | 120 |
| Shipping Weight: | 3.65 kg |
