MANN+HUMMEL air filter 4452692950 (Piclon NLG 15-15)
Product number:
ELS-18065
€292.37
incl. VAT €347.92
Product information

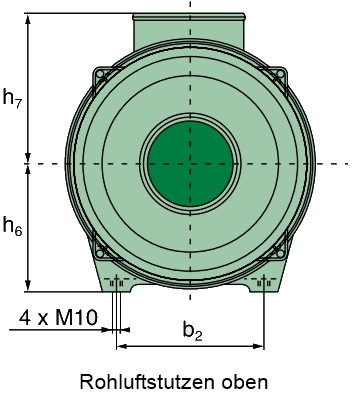

| Inlet: | port position on top / connecting piece on top |
|---|---|
| Lower housing section: | With umbrella valve |
| Manufacturer: | MANN+HUMMEL |
| Output diameter [mm]: | 110 |
| Permissible continuous operating temperature: | -40°C to +80°C |
| Secondary element: | CF 1250 |
| b2: | 200 |
| h6: | 153 |
| t2: | 328 |
| Markenname: | NLG Piclon |
| Einsatzbereich: | air filtration |
| Gehäuse - Werkstoff: | PP-GF30 |
| Einlassdurchmesser [mm]: | 130 |
| Gehäuselänge [mm]: | 360 |
| min. Durchflussbereich [m³/min]: | 10 |
| max. Durchflussbereich [m³/min]: | 15 |
| Filterelement: | C 22 526/1 |
| Halter: | Fest an Gehäuse angegossen |
| b1: | 140 |
| d1: | 130 |
| d2: | 110 |
| h5: | 91 |
| d3: | 299 |
| d4: | 285 |
| h1: | 360 |
| h2: | 228 |
| h7: | 182 |
| h3: | 33 |
| h4: | 120 |
| Shipping Weight: | 0 kg |
