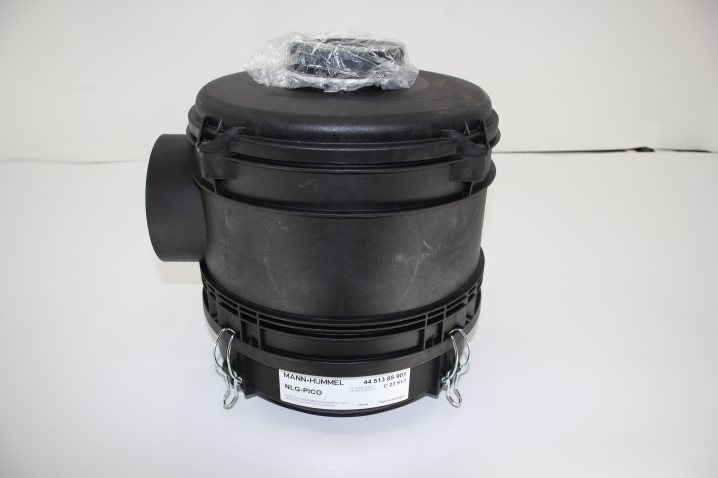

MANN+HUMMEL air filter 4451385901 (Pico NLG 15-12)
Product number:
ELS-20949
€210.08
incl. VAT €250.00
Product information
| Inlet: | port position right / connecting piece right |
|---|---|
| Lower housing section: | With umbrella valve |
| Manufacturer: | MANN+HUMMEL |
| Output diameter [mm]: | 110 |
| Permissible continuous operating temperature: | -40°C to +80°C |
| Weight [kg]: | 3,348 |

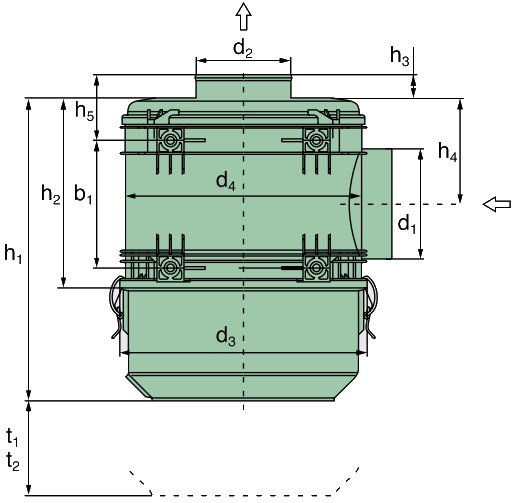

| b2: | 200 |
| h6: | 153 |
| t1: | 230 |
| Markenname: | NLG Pico |
| Einsatzbereich: | air filtration |
| Gehäuse - Werkstoff: | PP-GF30 |
| Einlassdurchmesser [mm]: | 130 |
| Gehäuselänge [mm]: | 305 |
| min. Durchflussbereich [m³/min]: | 10 |
| max. Durchflussbereich [m³/min]: | 18 |
| Filterelement: | C 23 513 |
| Halter: | Fest an Gehäuse angebracht |
| b1: | 140 |
| d1: | 130 |
| d2: | 110 |
| h5: | 91 |
| d3: | 299 |
| d4: | 285 |
| h1: | 305 |
| h2: | 228 |
| h7: | 182 |
| h3: | 33 |
| h4: | 120 |
| Shipping Weight: | 3.348 kg |
