MANN+HUMMEL air filter 4410092921 (Europiclon)
Product number:
ELS-3849
€87.62
incl. VAT €104.27
Product information

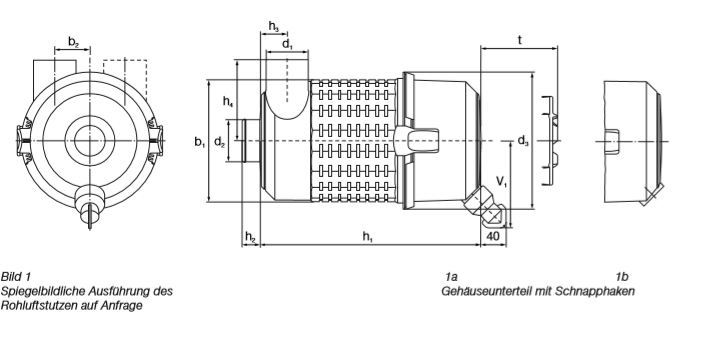

| Construction / Image: | 1b |
|---|---|
| Lower housing section: | With umbrella valve |
| Manufacturer: | MANN+HUMMEL |
| Mounting position: | Any |
| Output diameter [mm]: | 50 |
| Permissible continuous operating temperature: | -40°C to +80°C |
| Secondary element: | CF 100 |
| Weight [kg]: | 1,29 |
| b2: | 45 |
| Markenname: | Europiclon |
| Einsatzbereich: | air filtration |
| Gehäuse - Werkstoff: | Plastic |
| Einlassdurchmesser [mm]: | 54 |
| Gehäuselänge [mm]: | 260 |
| min. Durchflussbereich [m³/min]: | 1 |
| max. Durchflussbereich [m³/min]: | 3 |
| Filterelement: | C 11 100 |
| b1: | 158 |
| d1: | 54 |
| d2: | 50 |
| d3: | 188 |
| h1: | 260 |
| h2: | 27 |
| h3: | 38 |
| h4: | 104 |
| t: | 237 |
| Shipping Weight: | 1.29 kg |
