LIS® Segment Group T=23 CR5513
Product information
LIS® 23 Tooth Segment Group CR5513 suitable for selected Caterpillar and Liebherr crawler undercarriages. Technical identification is based on references 106-1624, 106-1622, 12264245, 12201064 and manufacturer reference US190C523. The segment group is mounted to the drive sprocket and transmits the drive force from the final drive to the track chain. It is designed as a replaceable wear component for undercarriage applications.

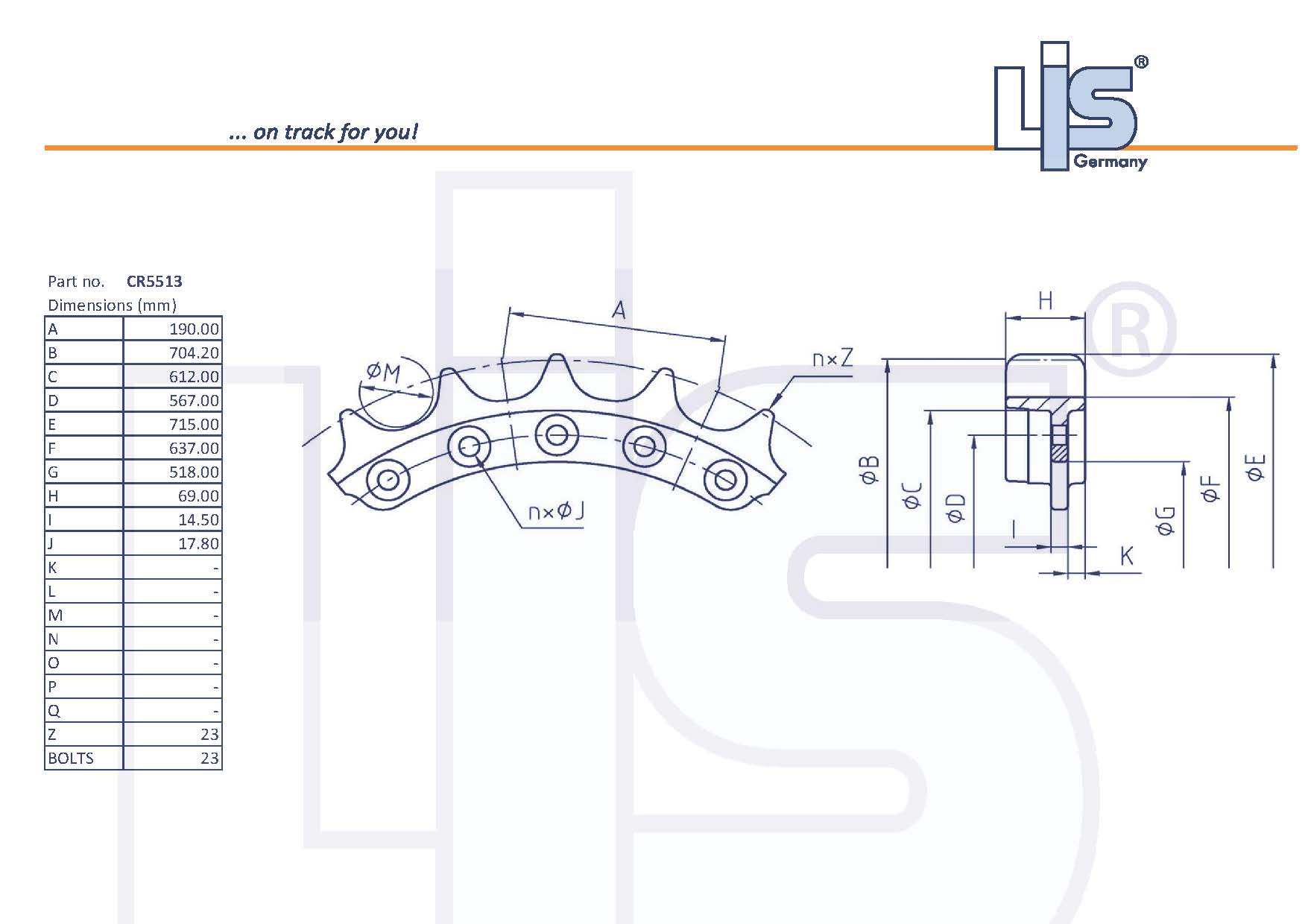

Technical drawing: Viewable after registration in the free LIS® customer account.
Technical Data
- Product type: Segment Group
- Number of teeth: 23
- References: 106-1624, 106-1622, 12264245, 12201064, US190C523
Identification Note
The listed references and machine applications are intended for technical identification. For correct identification, verify the reference number, number of teeth, segment design, mounting configuration and existing component dimensions before installation.
| Shipping Weight: | 41 kg |
|---|
