LIS® Hydraulic Hammer for Excavators 70 - 75 t | Without mounting

The LIS® LIS215A-BT-WOP hydraulic breaker (box-type) is optimized for excavators in the 70 to 75 tonne class. Featuring a nitrogen-assisted impact mechanism and manufactured according to the highest LIS® Germany quality standards, this heavy-duty demolition breaker delivers maximum performance in heavy concrete demolition, quarry operations and demanding civil engineering projects. Supplied without mounting bracket, it can be flexibly adapted to various common quick coupler systems. Includes 12 months or 1,500 operating hours warranty.

Main Features and Advantages

Optimized performance: Nitrogen-assisted impact energy for maximum efficiency.
Compatible: 70–75 t excavators

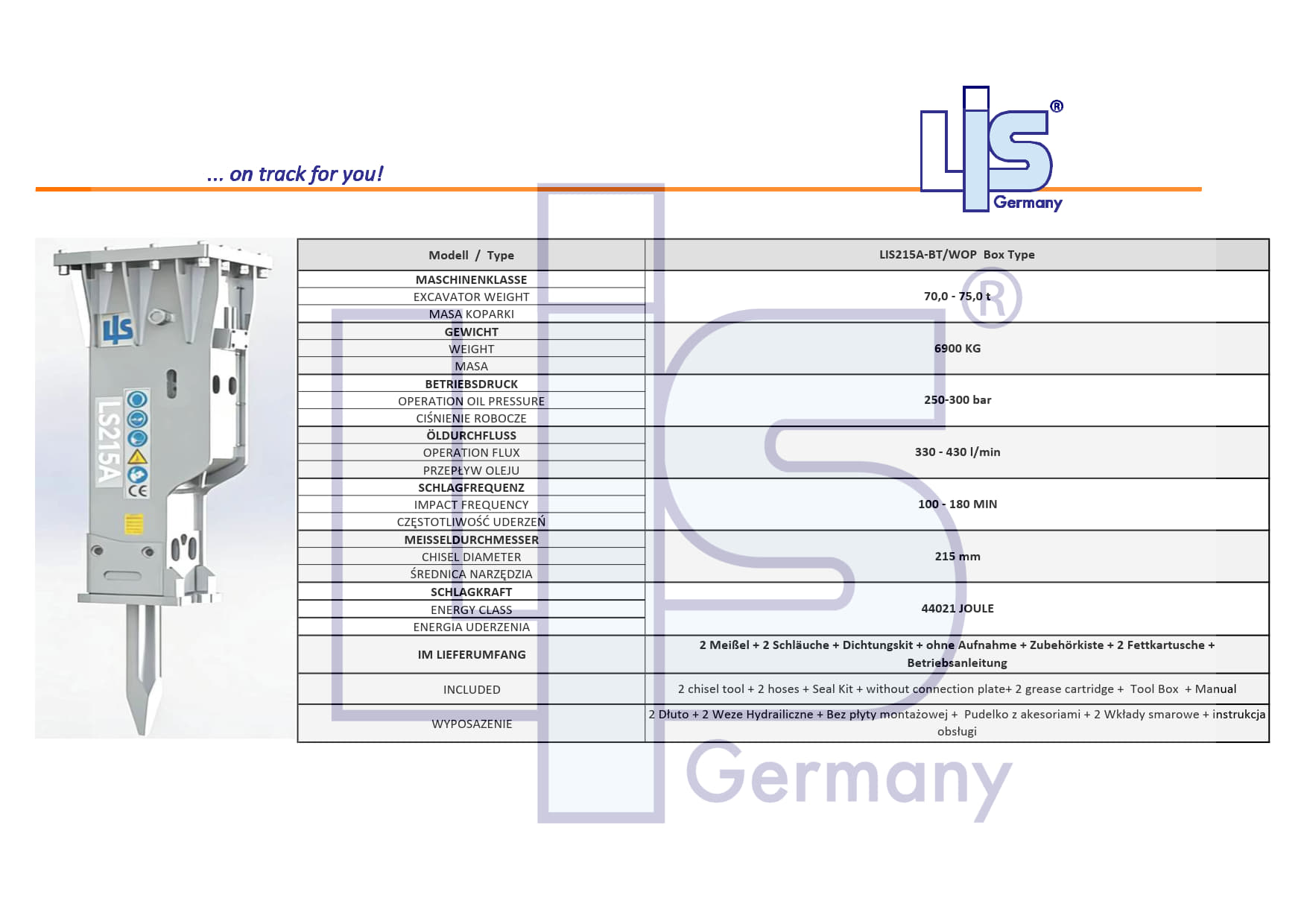

Technical Specifications

• Suitable for excavator class: approx. 70–75 t
• Mounting / Suitable for quick coupler: Without mounting bracket
• Weight: 6,900 kg
• Oil flow (min–max): 330–430 l/min
• Operating pressure: 250–300 bar
• Impact rate: 100–180 bpm
• Chisel diameter: 215 mm
• Impact energy: 44,021 joules

Scope of delivery: 2x chisels + 2x hydraulic hoses + 1x seal kit + without mounting bracket + tool kit + 2x grease cartridges + operating manual
