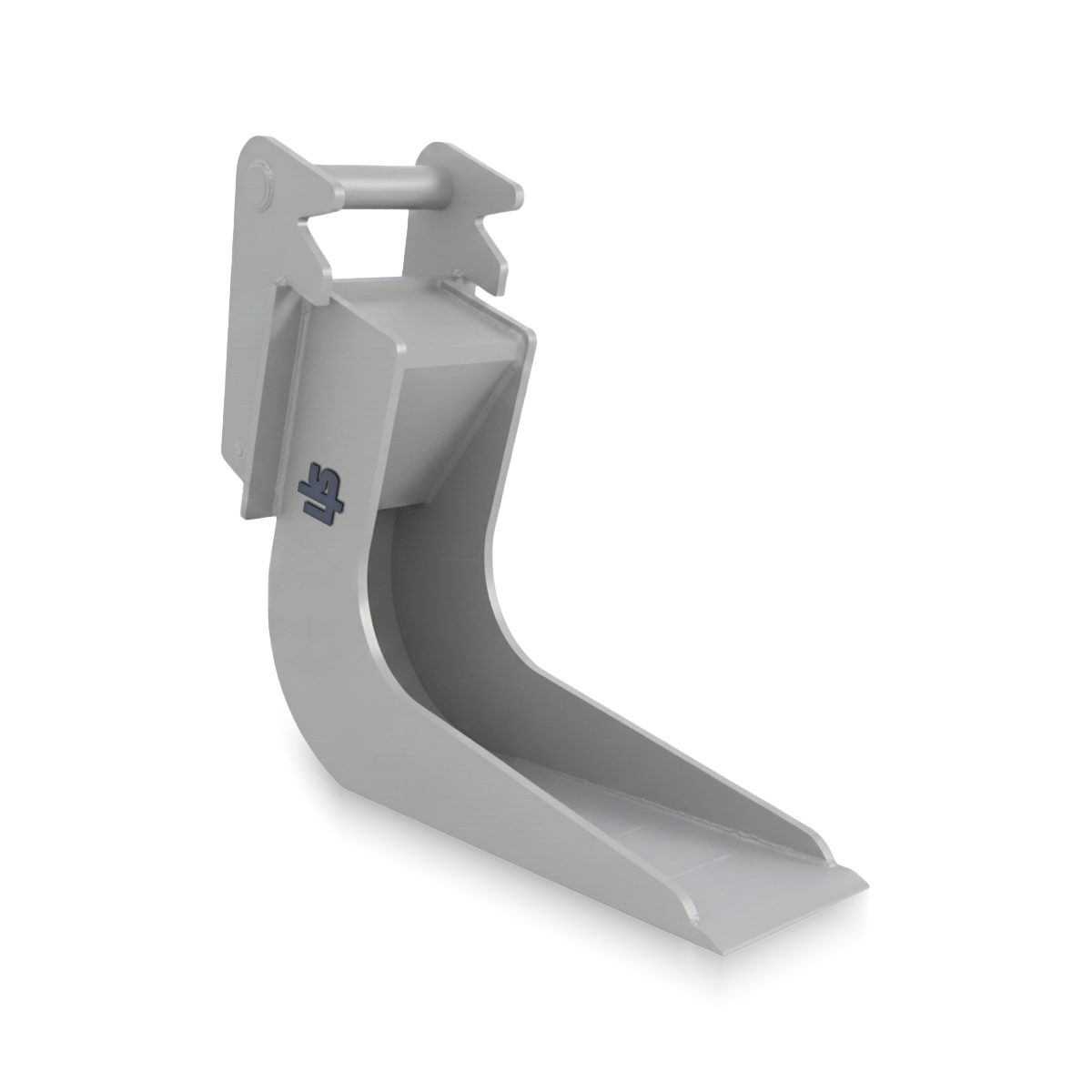

LIS® Cable Bucket 150mm | For Lehnhoff Symlock SY01 / MS01 (0.5-3.5 t Mini Excavator)

The LIS® Cable Bucket 150mm is a precise attachment for approx. 0.5-3.5 t mini excavators, suitable for Lehnhoff MS01, SW01 quick couplers. With 150 mm width, it is ideal for digging narrow trenches  for cables and pipes. Made from HB500 (blade) and S355 (bottom/side plate), its construction ensures optimal fit and high component durability. Includes 12 months or 1500 hours warranty .

Key Features and Benefits

• 12 months or 1500 hours warranty.
• Materials: HB500 (blade) and S355 (bottom/side plate).
• 150 mm Width: Enables precise trenching and efficient cable laying in confined areas.

Technical Data

• Excavator Class: approx. 0.5-3.5 t
• Suitable for: MS01, SW01
• Mount: Symlock SY03
• Weight approx. (kg): 38,21
• Capacity (SAEJ296) approx. (l): 8,7 (SAE n/a)
• Number of Teeth: 0
• Bucket Width: 150 mm (15 cm)
• Bucket Depth: 540 mm
• Blade: HB500 110x12mm
• Bucket Bottom: S355 5mm
• Side Plate: S355 10mm
• Torsion Plate: S355 10mm
• Type (Synonyms): Cable bucket, Drainage bucket, Drainage shovel, Clay bucket
• Material: HB500 (Blade), S355 (Bottom, Side Plate, Torsion Plate)
• Recommended for: Digging trenches for cables and pipes, precise earthwork.

Order now! Also available via Express Shipping.
