LIS® ASG700 Demolition and Sorting Grapple | 10.0–14.0 t Excavators
Product information
The LIS® ASG700 demolition and sorting grapple is designed for excavators in the 10.0–14.0 t class and intended for heavy-duty demolition, sorting and loading operations. With a 700 mm shell width, a 1,550 mm opening width and a closing force of 24 kN, the grapple enables controlled handling of large-volume demolition material, concrete debris and mixed materials.
The 360° hydraulic rotation supports precise positioning even under high loads. With a dead weight of 726 kg, the grapple is matched to this excavator class and ensures stable operation without limiting hydraulic performance. The neutral mounting plate provides a flexible basis for common quick coupler systems.

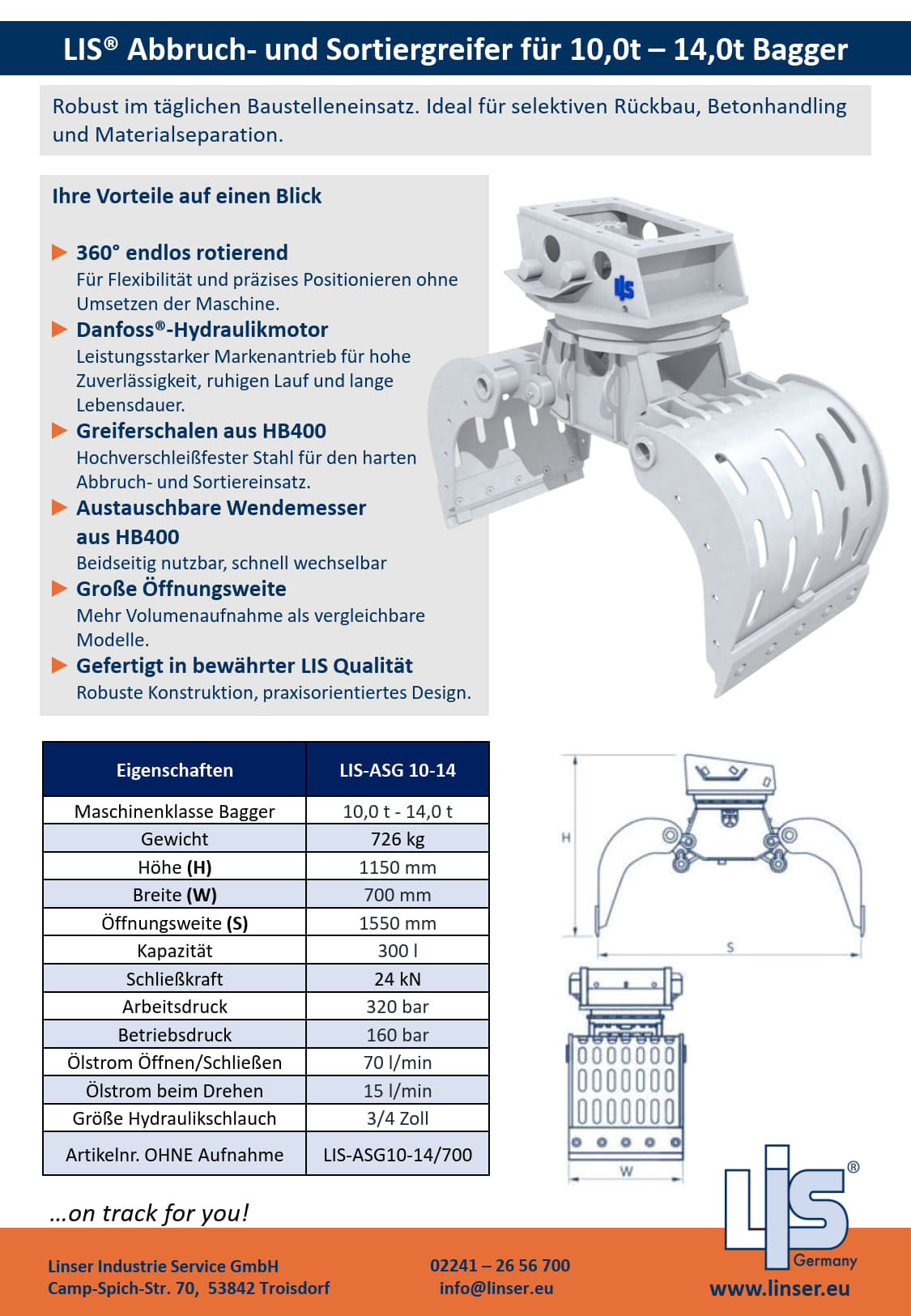

Technical Specifications
- Excavator class: 10.0 – 14.0 t
- Model: LIS-ASG10-14/700
- Weight: 726 kg
- Shell width: 700 mm
- Opening width: 1,550 mm
- Height: 1,150 mm
- Capacity: 300 l
- Closing force: 24 kN
Hydraulics Open/Close
- Working pressure: max. 220 bar
- Oil flow: approx. 60 l/min
Hydraulics Rotation
- Operating pressure: max. 160 bar
- Oil flow: approx. 15 l/min
Important technical note
The rotation circuit must be designed for a maximum pressure of 160 bar. The actual hydraulic system pressure of the excavator must be checked prior to operation to prevent damage to the rotation motor.
| Shipping Weight: | 726 kg |
|---|
