ESCO® Ultralok® U55 Excavator Tooth – U55HHB (Heavy Tooth)
Product number:
U55HHB
€364.13
incl. VAT €433.31
Product information
The ESCO® Ultralok® U55HHB is an excavator tooth for the U55 system with the Heavy Tooth profile and type code H. This version is configured for Heavy Back. As a wear part within the Ultralok® tooth system, the point is seated with a form-fit connection in the tooth pocket at the adapter interface.
The heavy profile is primarily intended for abrasive excavator applications and includes additional wear material in the working section. The tooth point is secured to the tooth pocket by a bolt-in lock.
Technical Data
- System: ESCO® Ultralok®
- System Size: U55
- Part Number: U55HHB
- Product Type: Excavator Tooth
- Type Code: H
- Tooth Profile: Heavy Tooth
- Configuration: Heavy Back

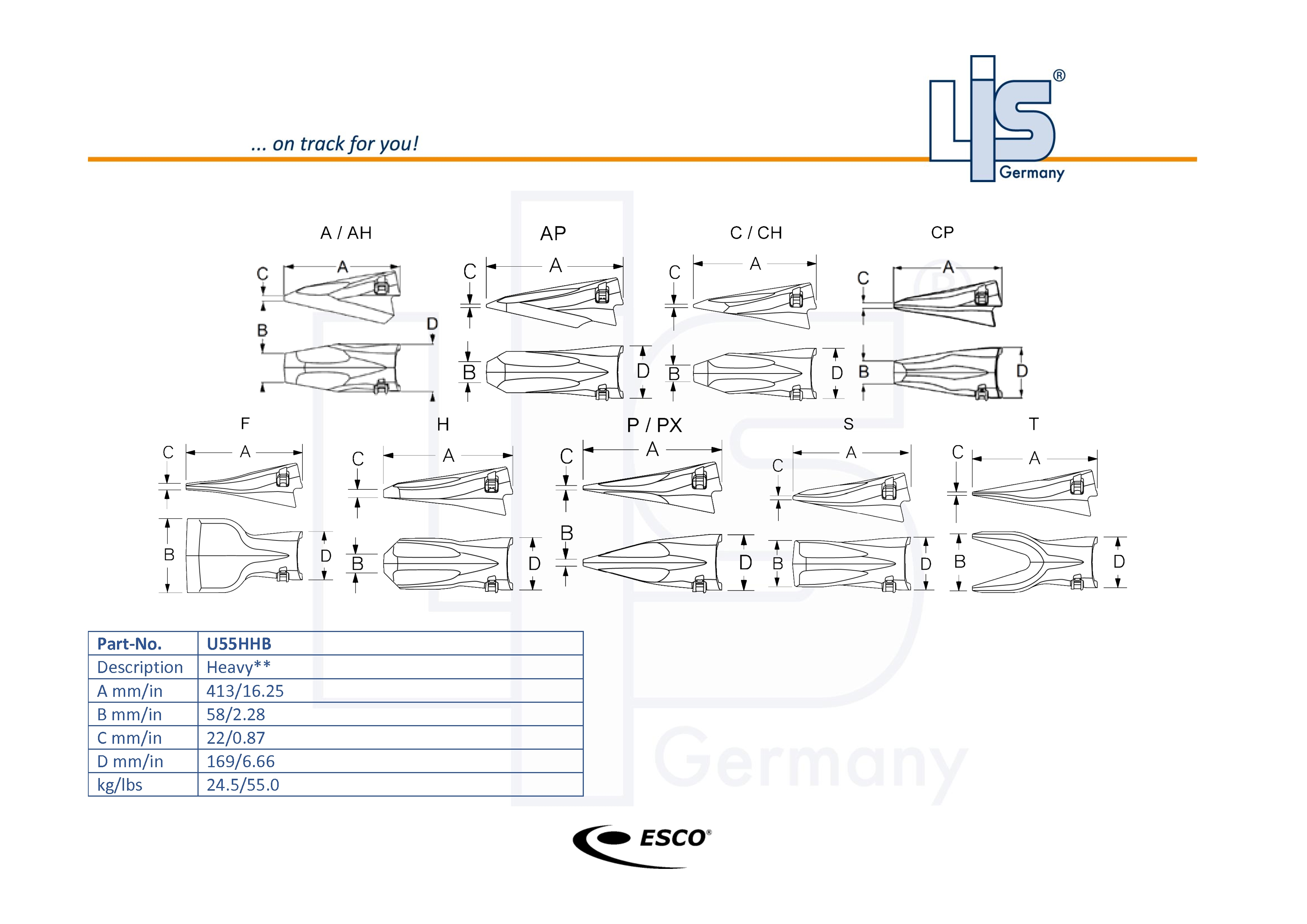

- Dimension A – Overall Length: 413 mm
- Dimension B – Cutting Edge Width: 58 mm
- Dimension C – Cutting Edge Thickness: 22 mm
- Dimension D – Outside Box Width: 169 mm
- Locking Method: bolt-in lock
| Tooth Size: | U55 |
|---|---|
| Shipping Weight: | 23.5 kg |
