ESCO® Ultralok® U30 Excavator Tooth – U30H (Heavy)
Product number:
U30H
€113.55
incl. VAT €135.12
Product information
The ESCO® Ultralok® U30H is a wear part for the Ultralok® tooth system in size U30. The H – Heavy profile is designed for applications with increased wear exposure, particularly in excavator operations involving abrasive materials.
The tooth fits form-locking into the tooth pocket at the adapter interface and forms part of the Ground Engaging Tools (GET). The solid tooth geometry supports stable force transmission during digging. Tooth replacement within the Ultralok® tooth system is hammerless via the integrated locking mechanism.
Technical Data:
- System: ESCO® Ultralok®
- System Size: U30
- Part Number: U30H
- Tooth Profile: H – Heavy

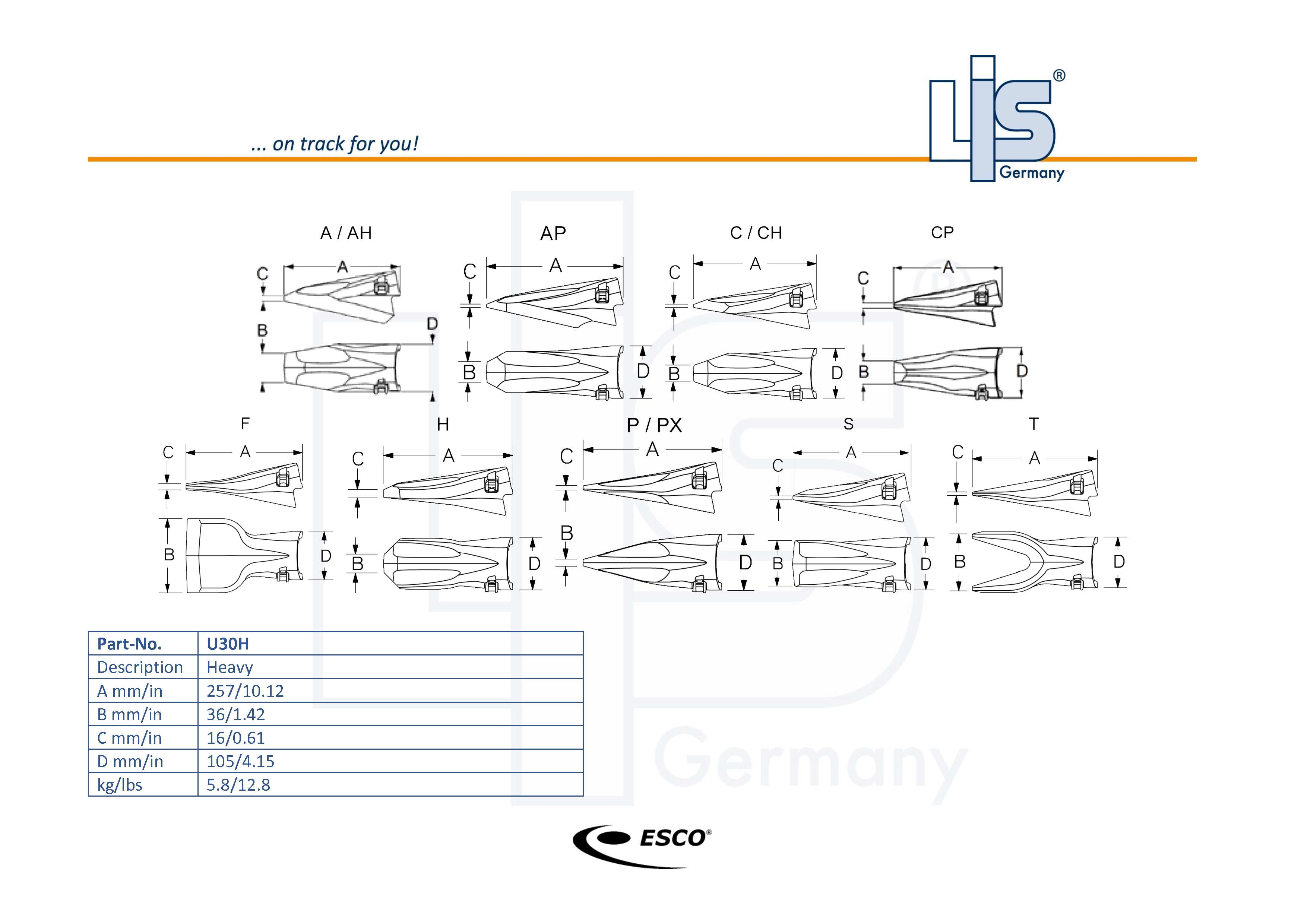

- Dimension A – Overall length: 257 mm
- Dimension B – Tip width: 36 mm
- Dimension C – Tip height / thickness: 16 mm
- Dimension D – Base width / pocket width: 105 mm
- Weight: 5.8 kg
| Tooth Size: | U30 |
|---|---|
| Shipping Weight: | 5.81 kg |
