ESCO® Ultralok® U30 Excavator Tooth – U30F (Flare)
Product number:
U30F
€156.28
incl. VAT €185.97
Product information
The ESCO® Ultralok® U30F is a wear part for the Ultralok® tooth system in size U30. The F – Flare profile is designed for wide cutting applications, particularly trenching and foundation work.
The wide geometry increases cutting width at the bucket. The tooth fits form-locking into the tooth pocket at the adapter interface and forms part of the Ground Engaging Tools (GET). Tooth replacement within the Ultralok® tooth system is hammerless via the integrated locking mechanism.
Technical Data:
- System: ESCO® Ultralok®
- System Size: U30
- Part Number: U30F
- Tooth Profile: F – Flare (Spade)

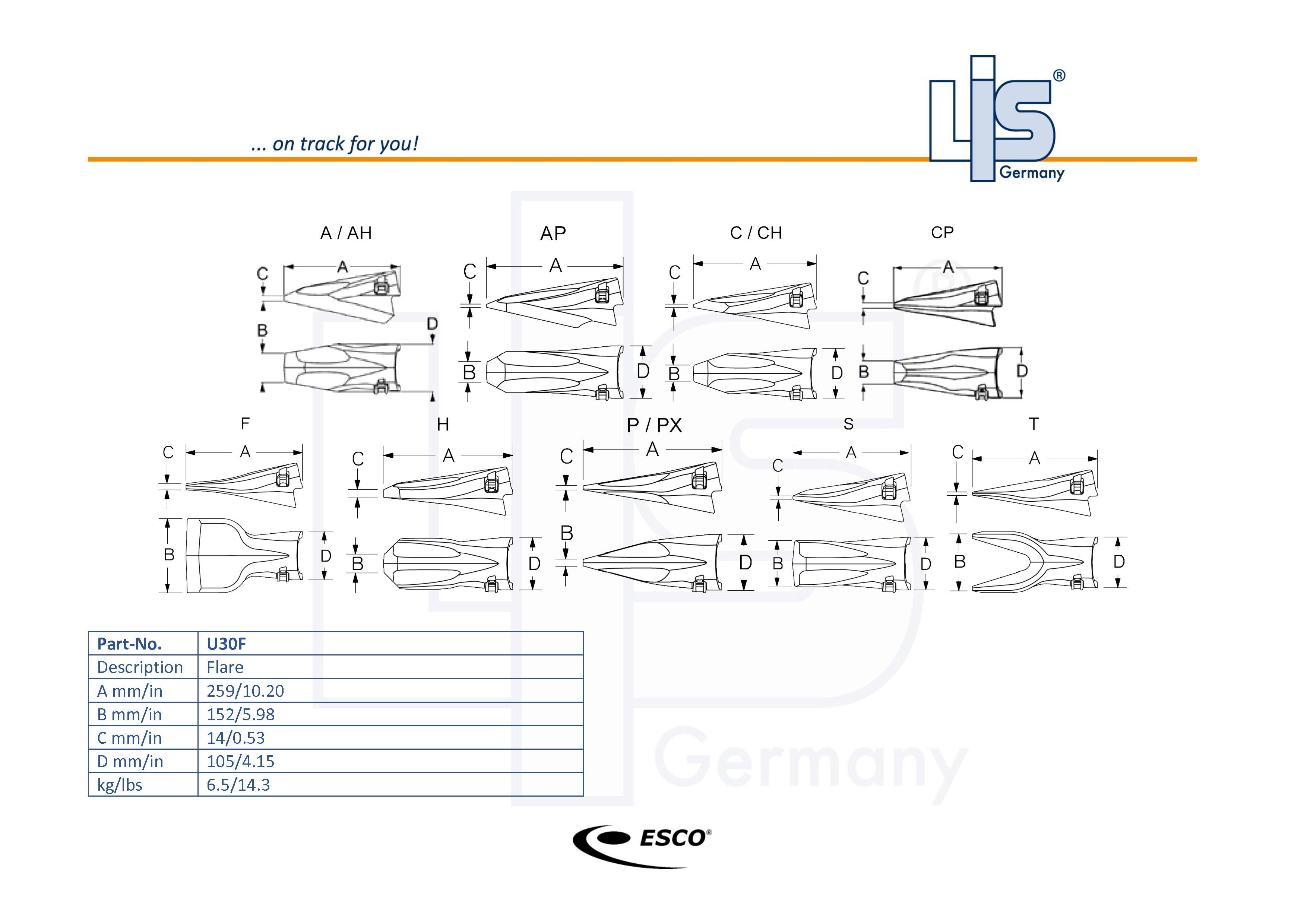

- Dimension A – Overall length: 259 mm
- Dimension B – Tip width: 152 mm
- Dimension C – Tip height / thickness: 14 mm
- Dimension D – Base width / pocket width: 105 mm
- Weight: 6.5 kg
| Tooth Size: | U30 |
|---|---|
| Shipping Weight: | 6.21 kg |
