DONALDSON air filter G100420 (RadialSeal FRG2)
Product number:
ELS-27707
€234.39
incl. VAT €278.92
Product information
| Housing lower part - material: | Plastic |
|---|---|
| Lower housing section: | With dust discharge valve |
| Manufacturer: | DONALDSON |
| Output diameter [mm]: | 101 |
| Permissible continuous operating temperature: | to 83°C |
| Secondary element: | X770689 (=kit incl. filter element) |
| Weight [kg]: | 6,51 |
| Gehäuse - Werkstoff: | St |
| Einlassdurchmesser [mm]: | 114 |
| Gehäuselänge [mm]: | 430 |

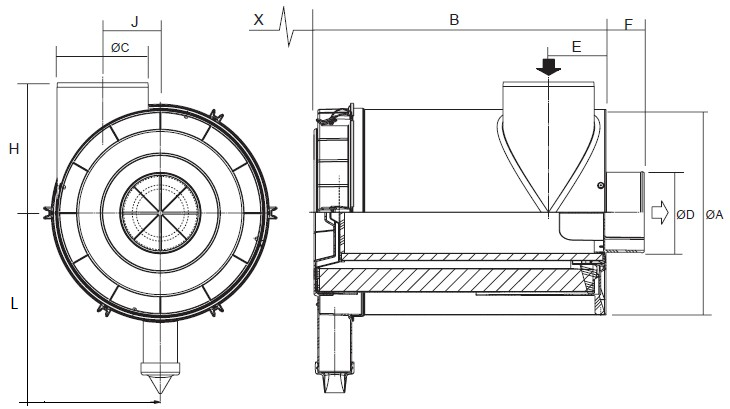

| A: | 259 |
| min. Durchflussbereich [m³/min]: | 7 |
| max. Durchflussbereich [m³/min]: | 14 |
| Filterelement: | P785589 |
| H: | 205 |
| Gehäusedurchmesser [mm]: | 259 |
| b: | 430 |
| C: | 114 |
| l: | 270 |
| F: | 52 |
| J: | 68 |
| D: | 101 |
| e: | 90 |
| Shipping Weight: | 6.51 kg |
