DONALDSON air filter D090099 (PowerCore PSD)
Product number:
ELS-23489
€271.31
incl. VAT €322.86
Available, delivery time: 2-5 days
Product information
| Manufacturer: | DONALDSON |
|---|---|
| Mounting position: | Vertical |
| Output diameter [mm]: | 102 |
| Permissible continuous operating temperature: | -40°C to +82°C |
| Secondary element: | P606121 |
| Weight [kg]: | 5,31 |
| Gehäuse - Werkstoff: | Plastic |
| Gesamtlänge [mm]: | 458 |
| Gehäuselänge [mm]: | 362 |

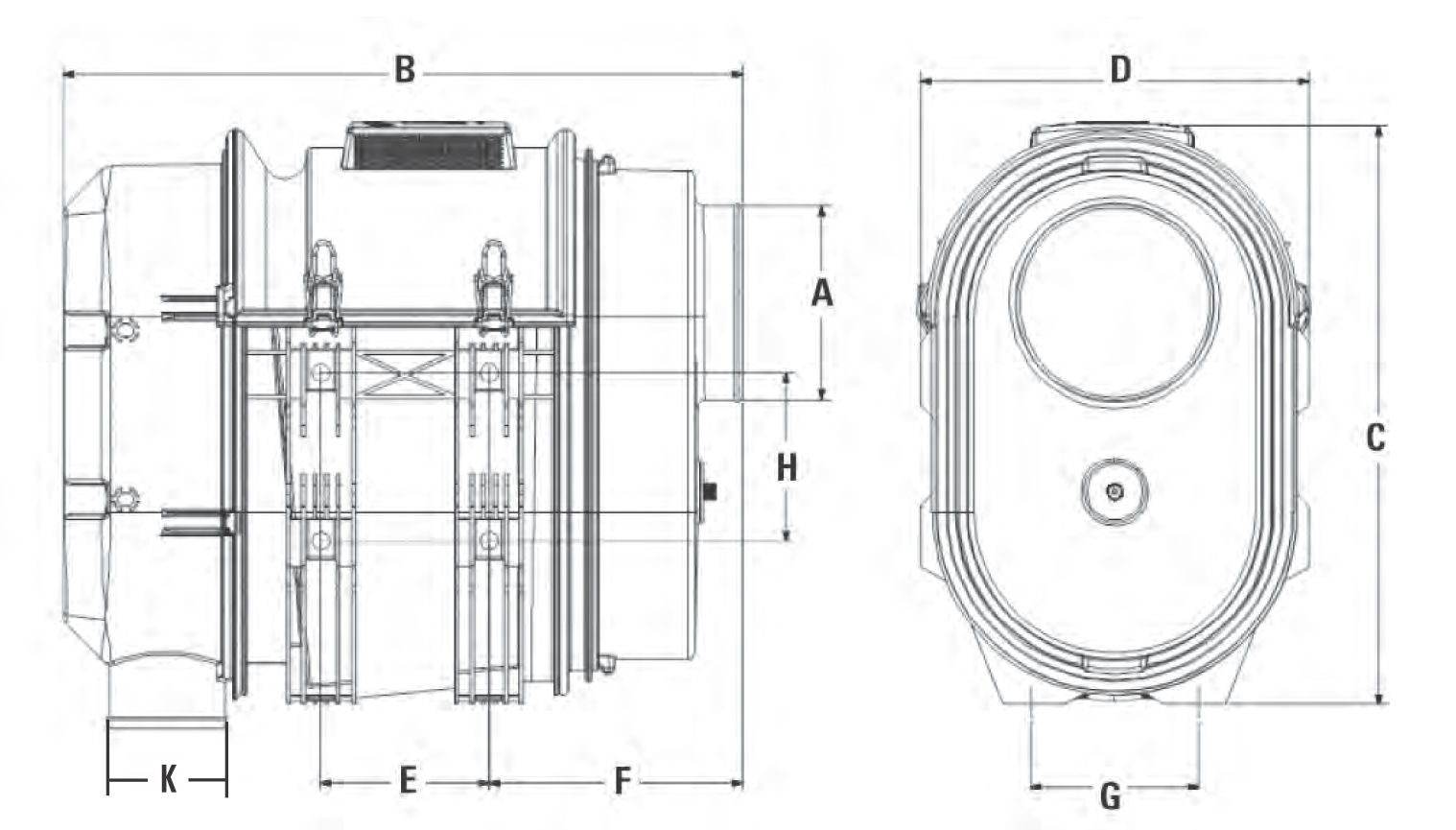

| A: | 102 |
| min. Durchflussbereich [m³/min]: | 7 |
| max. Durchflussbereich [m³/min]: | 11 |
| Filterelement: | P787281 |
| H: | 130 |
| Gehäusedurchmesser [mm]: | 180 |
| b: | 458 |
| C: | 362 |
| F: | 174 |
| G: | 100 |
| K: | 76,5 |
| D: | 180 |
| e: | 135 |
| Shipping Weight: | 5.31 kg |
