DONALDSON air filter D090086 (PowerCore PSD 90°)
Product number:
ELS-47244
€272.09
incl. VAT €323.79
Product information
| Manufacturer: | DONALDSON |
|---|---|
| Mounting position: | Vertical |
| Outlet: | 90° outlet |
| Output diameter [mm]: | 102 |
| Permissible continuous operating temperature: | -40°C to +82°C |
| Secondary element: | P606121 |
| Weight [kg]: | 4,78 |
| Gehäuse - Werkstoff: | Plastic |
| Gesamtlänge [mm]: | 477 |
| Gehäuselänge [mm]: | 362 |

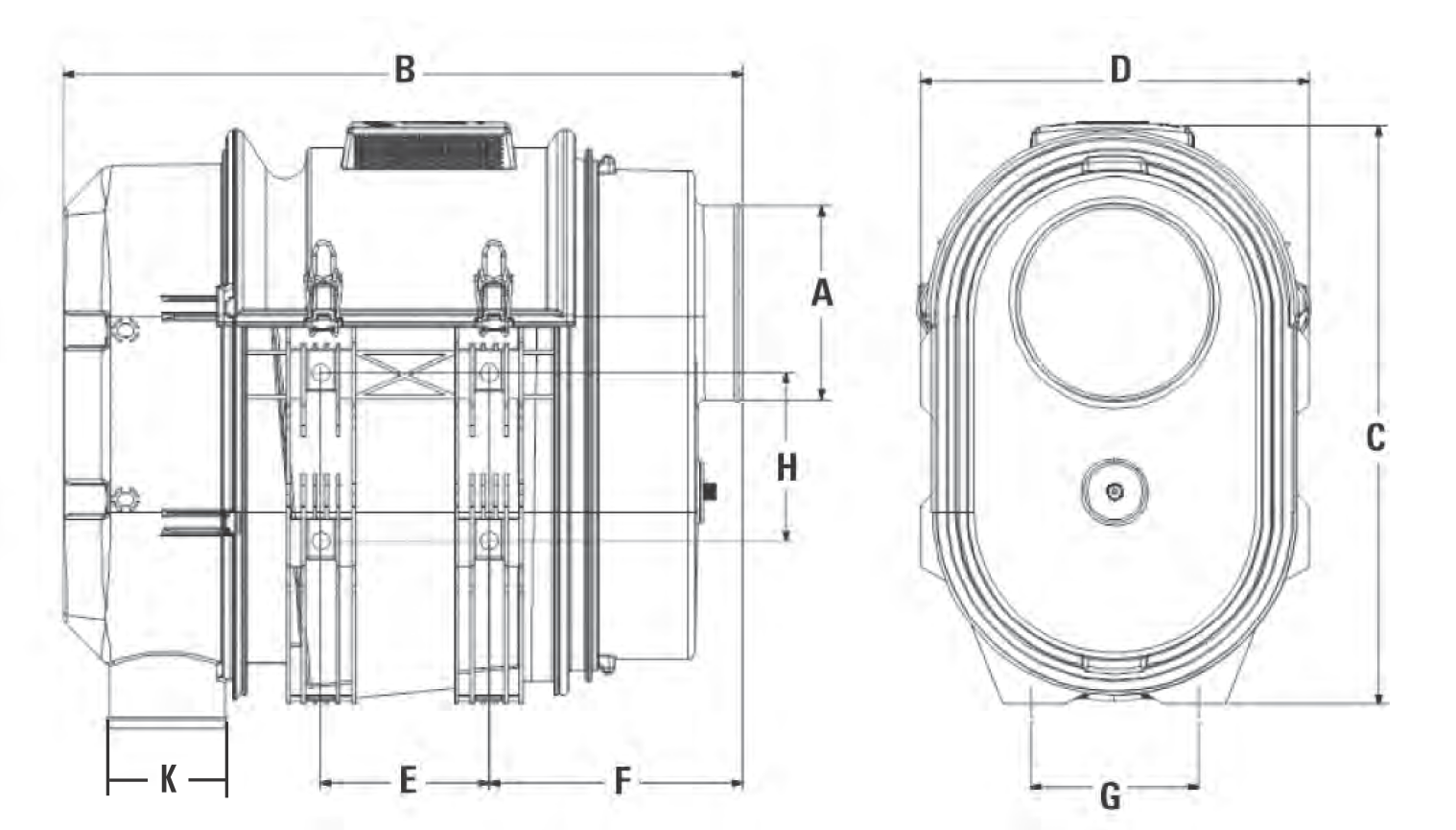

| A: | 102 |
| min. Durchflussbereich [m³/min]: | 6 |
| max. Durchflussbereich [m³/min]: | 10 |
| Filterelement: | P608665 |
| H: | 130 |
| Gehäusedurchmesser [mm]: | 180 |
| b: | 477 |
| C: | 362 |
| F: | 218 |
| G: | 100 |
| K: | 76,5 |
| D: | 180 |
| e: | 110 |
| Shipping Weight: | 4.78 kg |
