DONALDSON air filter B065045 (Cycloflow FKB)
Product number:
ELS-14654
€147.42
incl. VAT €175.43
Product information
| Manufacturer: | DONALDSON |
|---|---|
| Mounting position: | Horizontal |
| Output diameter [mm]: | 76 |
| Permissible continuous operating temperature: | to 82°C |
| Secondary element: | P608599 |
| Weight [kg]: | 2,237 |
| Gehäuse - Werkstoff: | Plastic |
| Einlassdurchmesser [mm]: | 76 |

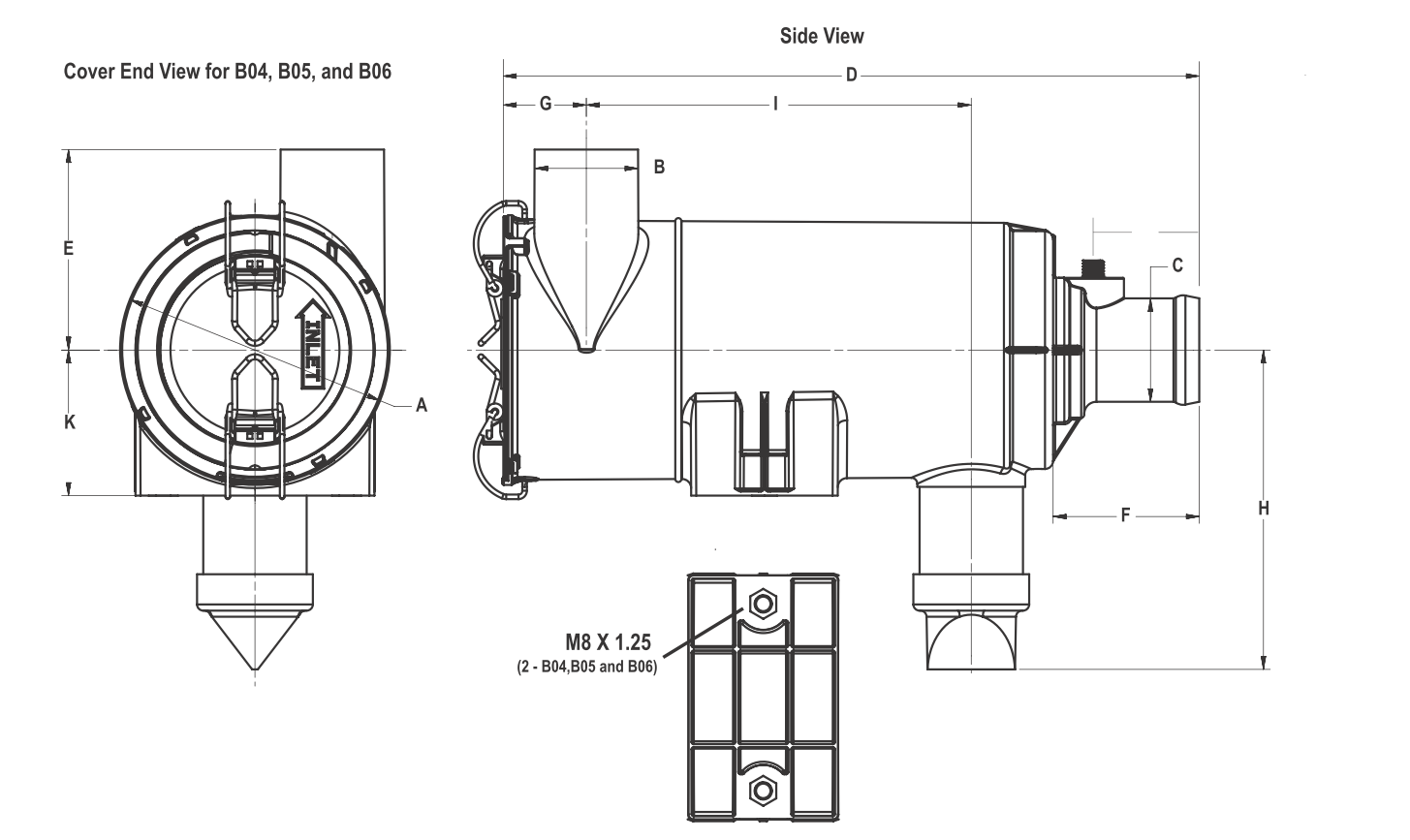

| A: | 180 |
| min. Durchflussbereich [m³/min]: | 4 |
| max. Durchflussbereich [m³/min]: | 6 |
| Filterelement: | P609221 |
| H: | 188 |
| Gehäusedurchmesser [mm]: | 180 |
| b: | 76 |
| C: | 76 |
| F: | 73 |
| G: | 53 |
| Halter: | Fest am Gehäuse angegossen |
| J: | 52 |
| I: | 241 |
| K: | 90 |
| D: | 408 |
| e: | 120 |
| Shipping Weight: | 2.237 kg |
