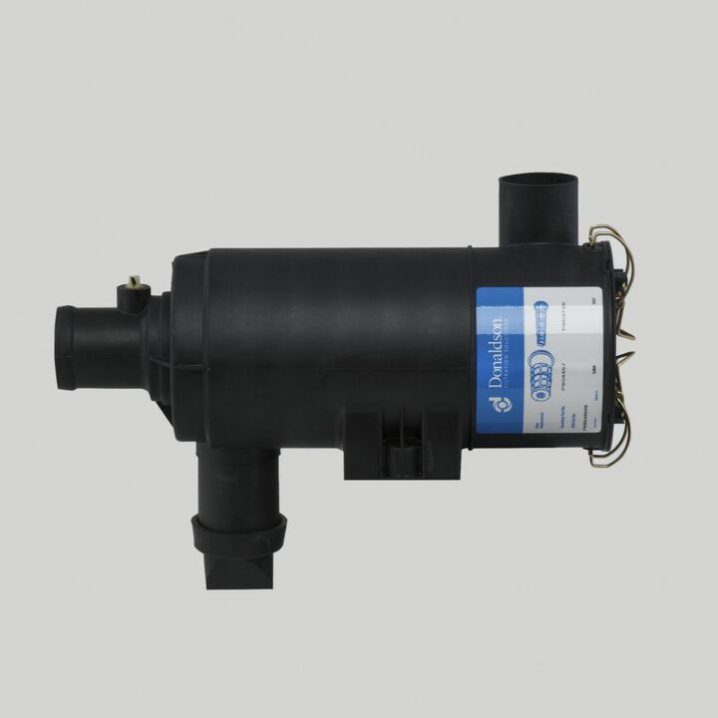

DONALDSON air filter B045008 (Cycloflow FKB)
Product number:
ELS-47455
€107.90
incl. VAT €128.40
Product information
| Manufacturer: | DONALDSON |
|---|---|
| Mounting position: | Horizontal |
| Output diameter [mm]: | 51 |
| Permissible continuous operating temperature: | to 82°C |
| Secondary element: | P603729 |
| Weight [kg]: | 1,197 |
| Gehäuse - Werkstoff: | Plastic |
| Gesamtlänge [mm]: | 342 |
| Einlassdurchmesser [mm]: | 51 |
| A: | 133 |
| min. Durchflussbereich [m³/min]: | 2 |
| max. Durchflussbereich [m³/min]: | 3 |
| Filterelement: | P604457 |
| H: | 157 |
| Gehäusedurchmesser [mm]: | 133 |
| b: | 51 |
| C: | 51 |
| F: | 72 |
| G: | 41 |
| Halter: | Fest am Gehäuse angegossen |
| J: | 52 |
| I: | 189 |
| K: | 72 |
| D: | 342 |
| e: | 99 |
| Shipping Weight: | 1.197 kg |
