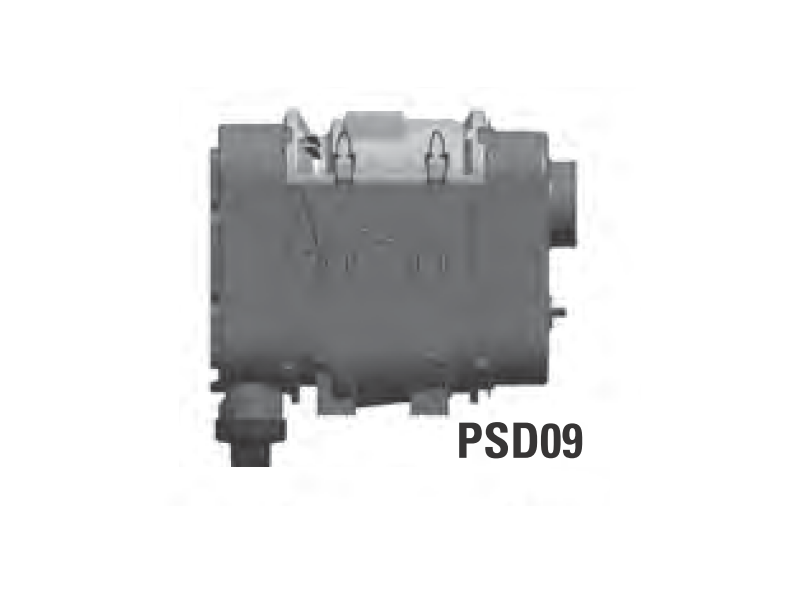

DONALDSON air filter D090055 (PowerCore PSD)
Product number:
ELS-50479
€339.69
incl. VAT €404.23
Product information
| Manufacturer: | DONALDSON |
|---|---|
| Mounting position: | Horizontal |
| Output diameter [mm]: | 102 |
| Permissible continuous operating temperature: | -40°C to +82°C |
| Secondary element: | P606121 |
| Gehäuse - Werkstoff: | Plastic |
| Gesamtlänge [mm]: | 432 |
| Gehäuselänge [mm]: | 363 |

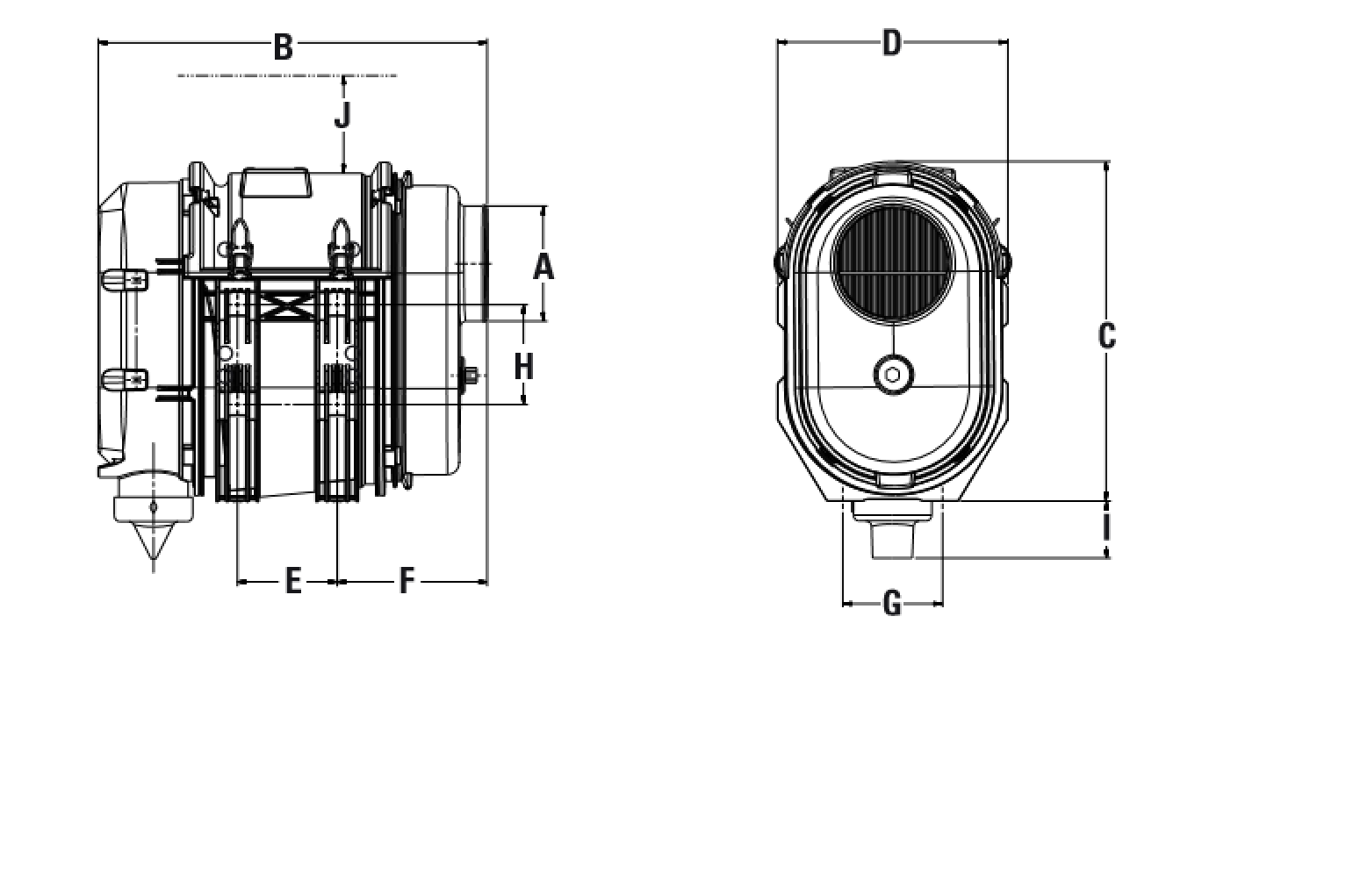

| A: | 102 |
| min. Durchflussbereich [m³/min]: | 101,6 |
| max. Durchflussbereich [m³/min]: | 432,7 |
| Filterelement: | P608665 |
| H: | 130 |
| Gehäusedurchmesser [mm]: | 180 |
| b: | 432 |
| C: | 363 |
| F: | 173 |
| G: | 100 |
| I: | 68 |
| D: | 180 |
| e: | 110 |
| Shipping Weight: | 0 kg |
