LIS® Single Grouser Track Shoe | 610 mm (24") Width | Pitch 155,60 mm

The LIS® Single Grouser track shoe (Part No. CR4583/24) with a width of 610 mm is engineered specifically for LGP applications on smaller bulldozers (e.g. Caterpillar D3G, D4K). Its wide profile ensures optimal weight distribution on soft terrain, while the high grouser still provides the high traction needed for effective operation. The shoe can be installed precisely on common link assemblies.

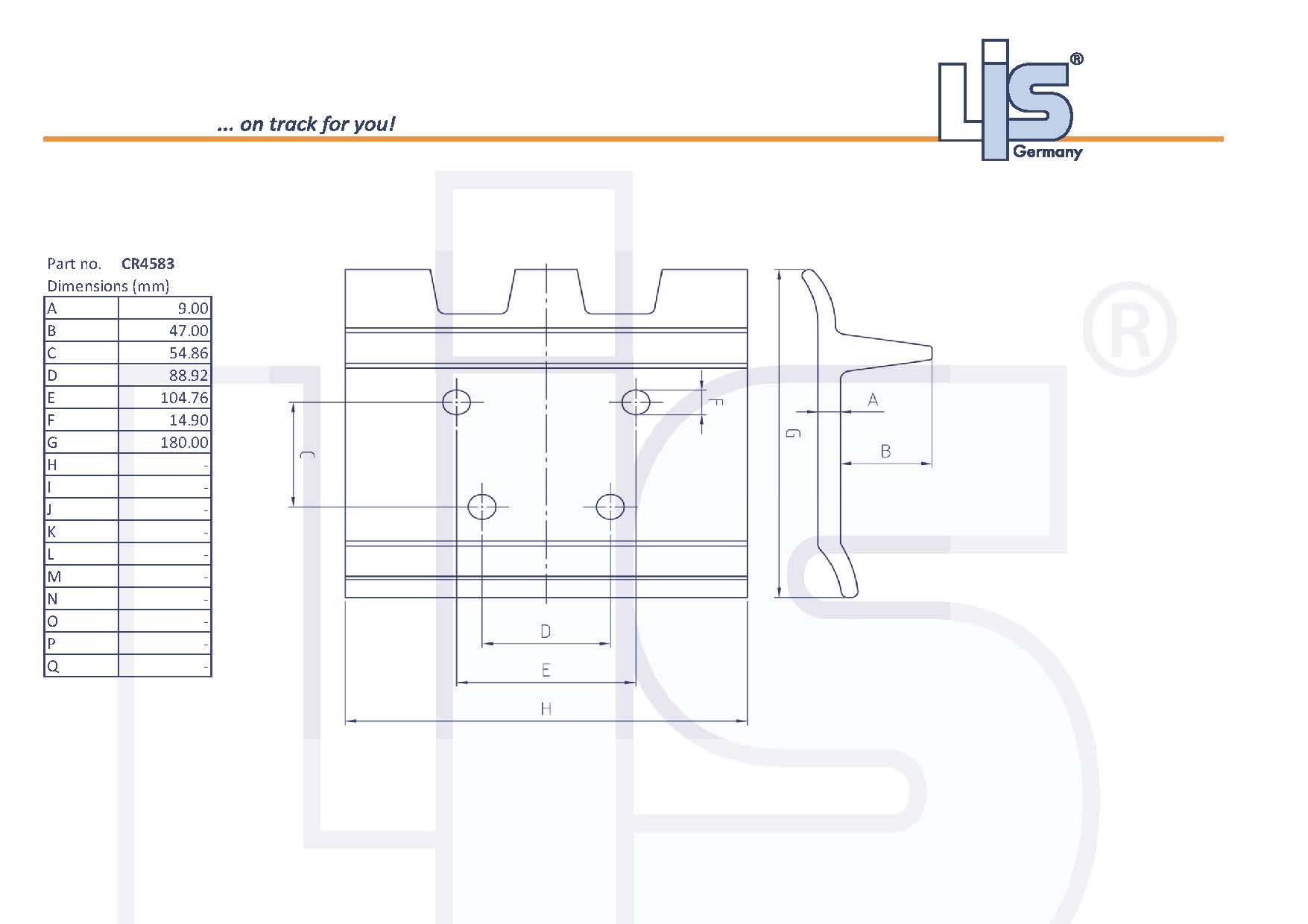

Important Note: Please check the bolt dimensions before ordering. Technical drawings are visible after registration in our shop.

Features and Benefits

• Load Capacity: 610 mm width significantly reduces ground pressure on small dozers, preventing sinking (LGP).
• Efficient Thrust: Despite the wide contact area, the single grouser geometry mechanically interlocks with the terrain for direct forward movement.
• Reduced material adhesion: Wide spacing minimizes soil packing, ensuring grip even in cohesive soils.
• LIS® Warranty: ✓ 12 months on material/manufacturing defects*.  Learn more.

Technical Specifications

• Part Number: CR4583/24
• Shoe Type: Single Grouser
• Shoe Width: 610 mm (24")
• Pitch: 155.60 mm
• Plate Thickness: 9 mm
