MANN+HUMMEL air filter 4572292910 (Entaron XD 21)
Product number:
ELS-22026
€418.21
incl. VAT €497.67
Product information
| Inlet: | port position left / connecting piece left |
|---|---|
| Lower housing section: | With large dust discharge valve |
| Manufacturer: | MANN+HUMMEL |

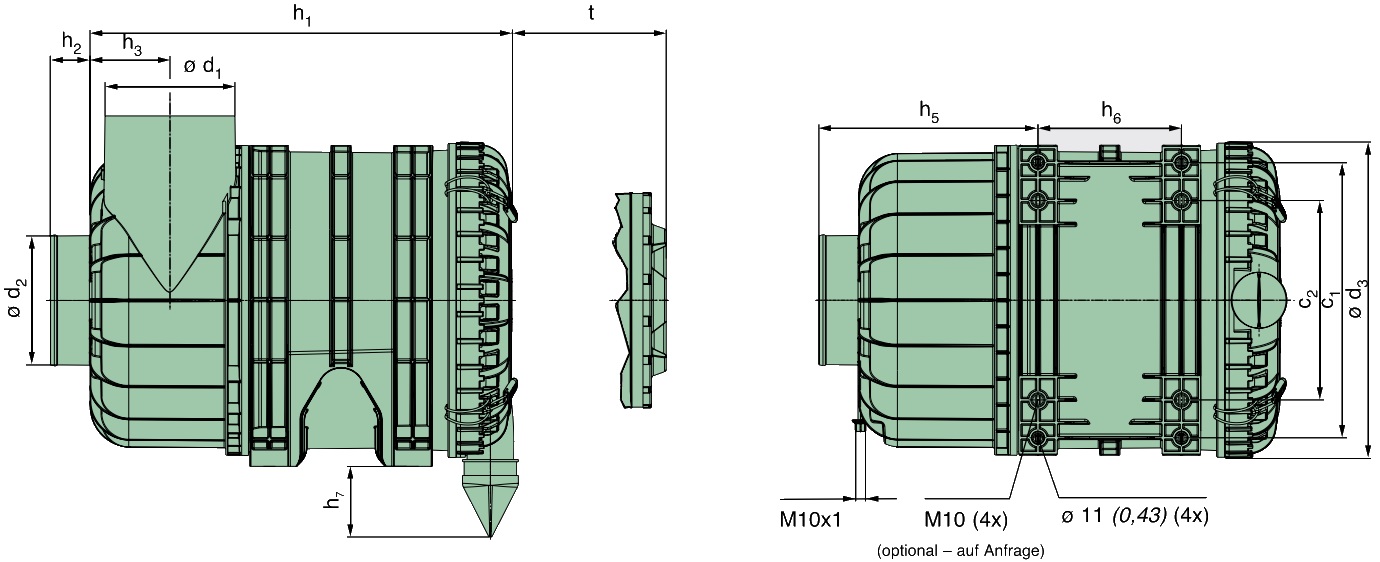

| Output diameter [mm]: | 150 |
| Permissible continuous operating temperature: | -30°C to +90°C |
| Secondary element: | CF 1470 |
| h6: | 167 |
| Markenname: | Entaron |
| Einsatzbereich: | air filtration |
| Gehäuse - Werkstoff: | Plastic |
| Einlassdurchmesser [mm]: | 150 |
| Gehäuselänge [mm]: | 422,9 |
| min. Durchflussbereich [m³/min]: | 11 |
| max. Durchflussbereich [m³/min]: | 21 |
| Filterelement: | C 25 900 |

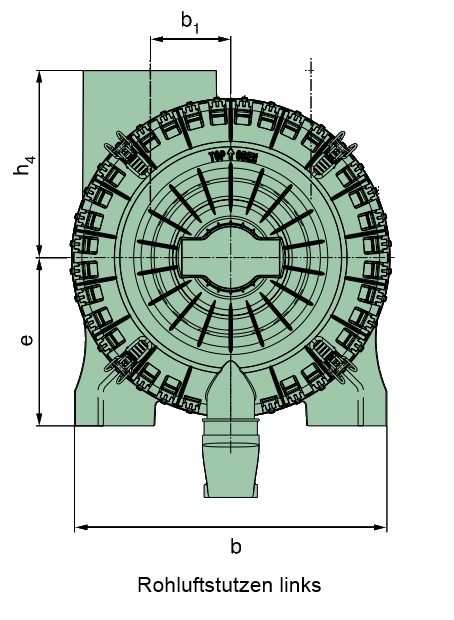

| b: | 357,8 |
| c1: | 320 |
| c2: | 232 |
| b1: | 92 |
| d1: | 150 |
| d2: | 150 |
| h5: | 254 |
| d3: | 368,9 |
| h1: | 491 |
| h2: | 45 |
| h7: | 82,1 |
| e: | 193 |
| h3: | 90 |
| h4: | 215 |
| t: | 426 |
| Shipping Weight: | 0 kg |
