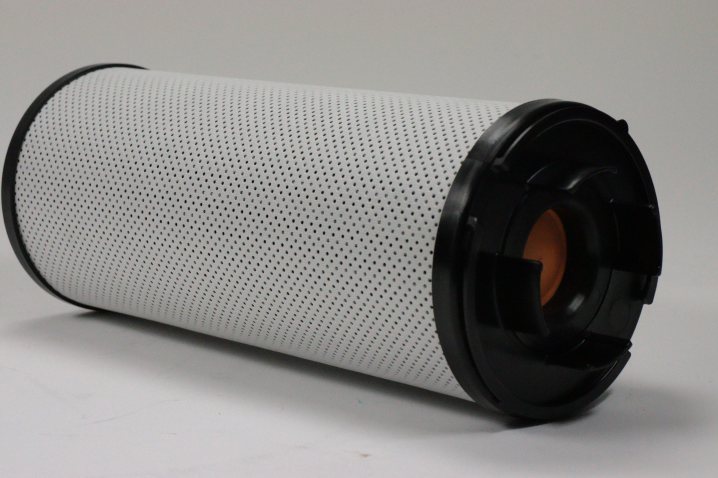

FILTREC RHR950G10B3/AB1 hydraulic filter element
Product number:
ELS-22662
€149.50
incl. VAT €177.90
Available, delivery time: 2-5 days
Product information
| Bypass valve opening pressure [bar]: | 3 |
|---|---|
| Manufacturer: | FILTREC |
| Outer diameter [mm]: | 143,5 |
| Permissible continuous operating temperature: | -30°C to +100°C |
| Weight [kg]: | 3,06 |
| Durchflussrichtung: | Outside to inside |
| Filtermedium: | Fiberglass |
| Innendurchmesser oben [mm]: | 90,5 |
| Innendurchmesser unten [mm]: | 96,5 |
| max. zul. Differenzdruck [bar]: | 20 |
| Dichtungen - Werkstoff: | NBR |
| Einsatzbereich: | Hydraulics |
| Höhe [mm]: | 363 |
| Filterfeinheit [µm(c)]: | ß10=200 / ß12=1000 |

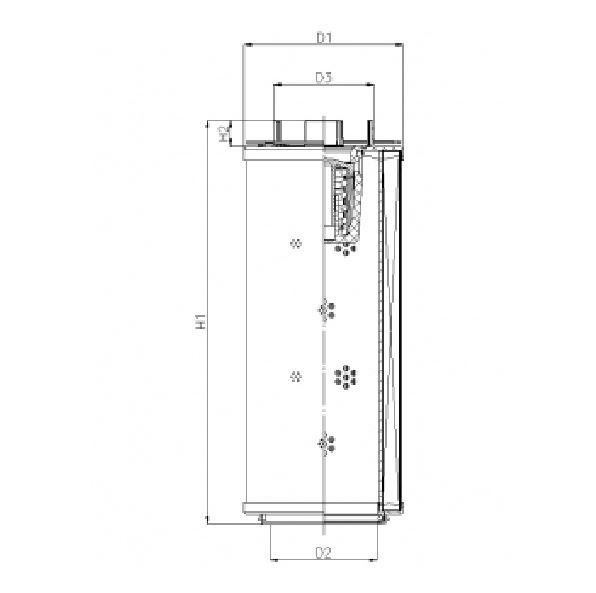

| d1: | 143,5 |
| d2: | 96,5 |
| d3: | 90,5 |
| h1: | 363 |
| h2: | 23,5 |
| Shipping Weight: | 3.06 kg |
