Special profile (profile steel) - V-shaped 254x40 | HB500 | 6m long

The LIS® Special Profile in the heavy-duty version is an extremely wear-resistant, V-shaped weld-on profile for buckets on large wheel loaders and heavy excavators. It serves as a massive cutting edge, protecting the base edge under the highest loads and improving penetration. Profile Dimensions: 254x40 mm. It has a wear resistance of 500 HB. The profile meets LIS® specifications, ensuring a precise fit and function.

Advantages of the LIS® Special Profile 254x40

• Extreme Wear Resistance: 500 HB hardness and 40 mm thickness for maximum service life in rock and abrasive materials.
• Maximum Bucket Protection: Protects the bucket's base edge even in the most demanding mining or quarrying applications.
• High Breakage Resistance: The massive construction withstands high impact and bending loads.

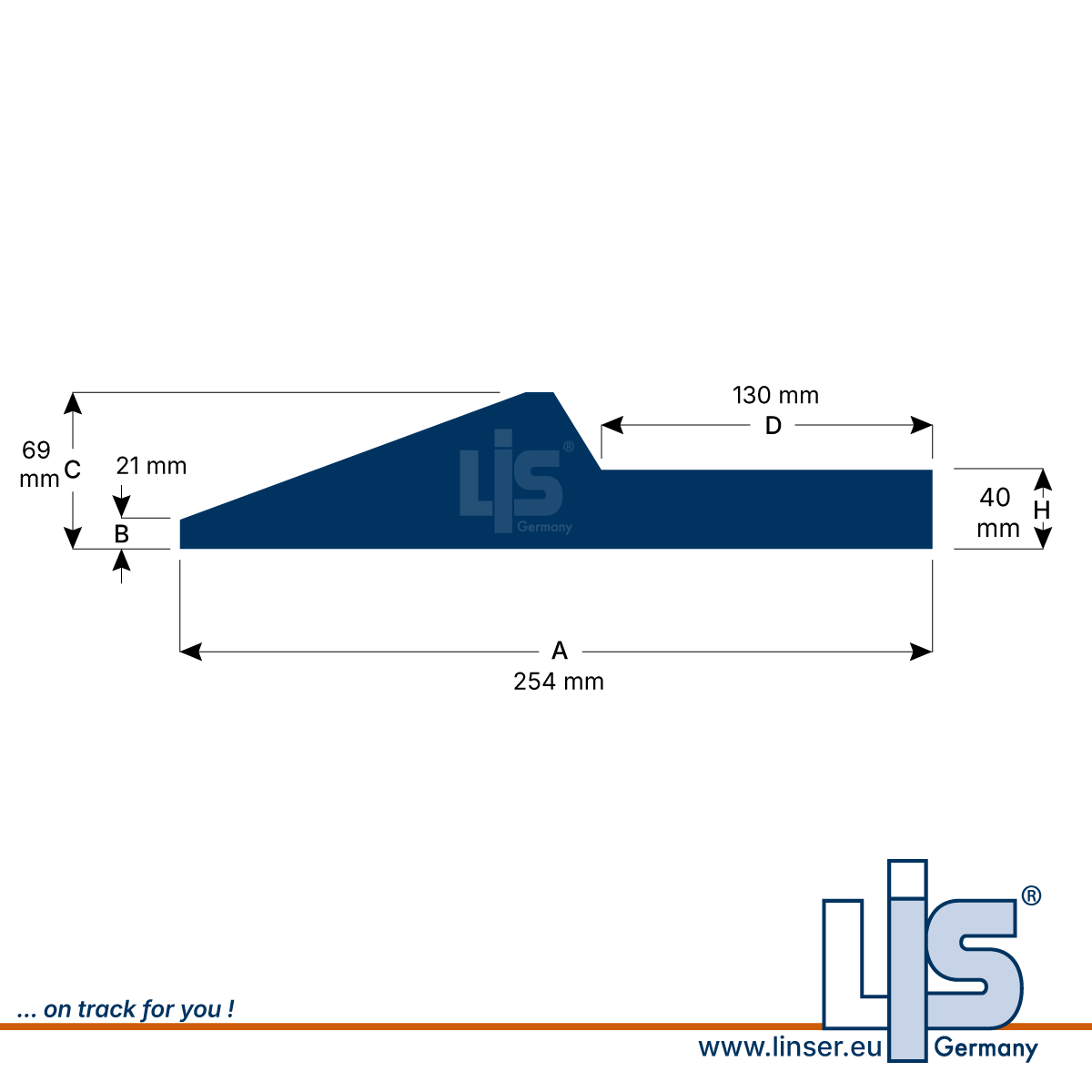

Technical Data

• Type: special profile / V-profile steel / weld-on profile (Heavy Duty)
• Profile width (A): 254 mm
• Profile height (H): 40 mm
• Top width (D): 130 mm
• V-profile height (C): 69 mm
• Tip thickness (B): 21 mm
• Length: 6000 mm (delivery as 6 m bar)
• Hardness: approx. 500 HB (Brinell)
• Mounting: weld-on (no holes)
• Compatible with: universally used for buckets of large to very large wheel loaders and heavy excavators suitable for quarrying, heavy earthmoving and recycling applications
