Special profile (profile steel) - V-shaped 203x19 | HB500 | 6m long

The LIS® Special Profile is a high wear-resistant, V-shaped weld-on profile for buckets on large wheel loaders and excavators. It serves as a robust cutting edge, protects the base edge, and improves material penetration due to its V-shape. Profile Dimensions: 203x19 mm. It has a wear resistance of 500 HB. The profile meets LIS® specifications, ensuring a precise fit and function.

Advantages of the LIS® Special Profile 203x19

• High Wear Resistance: 500 HB hardness for maximum service life and resistance to abrasion.
• Effective Bucket Protection: Protects the base edge of the bucket and reinforces the entire bucket lip.
• Improved Penetration: The V-shape facilitates penetration into compacted soil or piles.

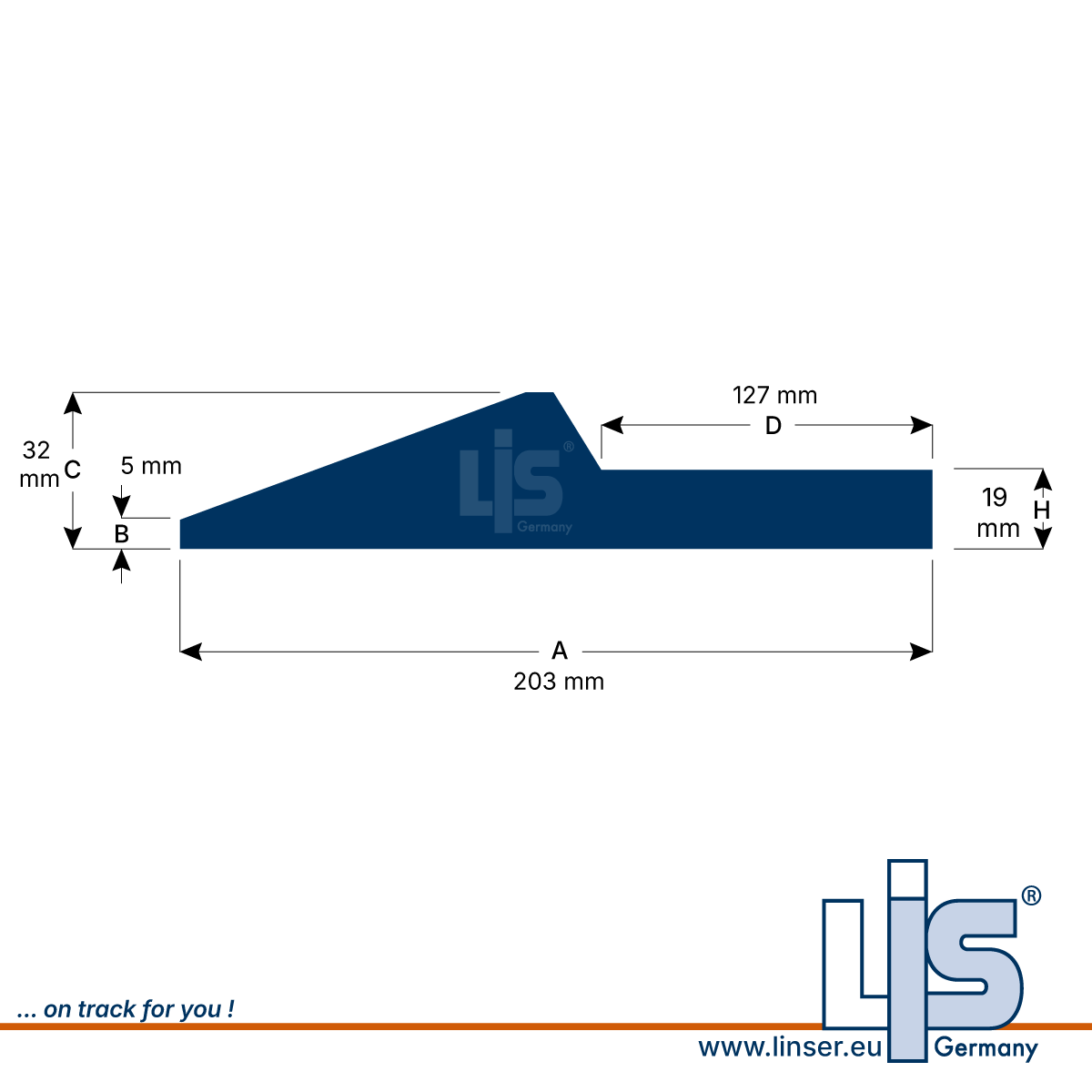

Technical Data and Compatibility

• Type: Special Profile / V-Shape Profile / Weld-on Profile
• Profile Width (A): 203 mm
• Profile Height (H): 19 mm
• Top Surface Width (D): 127 mm
• V-Profile Height (C): 32 mm
• Tip Thickness (B): 5 mm
• Length: 6000 mm (Supplied as 6m bar)
• Hardness: approx. 500 HB (Brinell)
• Fastening: Weld-on (no bores)
• Suitable for:
  • Universal use for buckets on large wheel loaders and excavators.
  • Is welded on as a continuous cutting edge or as segments between the teeth.
