Triple Grouser Shoe 600/10mm mit Zusatzbohrungen für bolt-on Gummipads

The LIS® Triple Grouser track shoe (Part No. LIS4105/600C) with a width of 600 mm is intended for use on excavators. The triple grouser profile offers high stability and smooth operation. Through integrated additional holes, this shoe is prepared for the quick mounting of Bolt-On rubber pads to protect sensitive surfaces. The shoe can be installed precisely on common link assemblies.

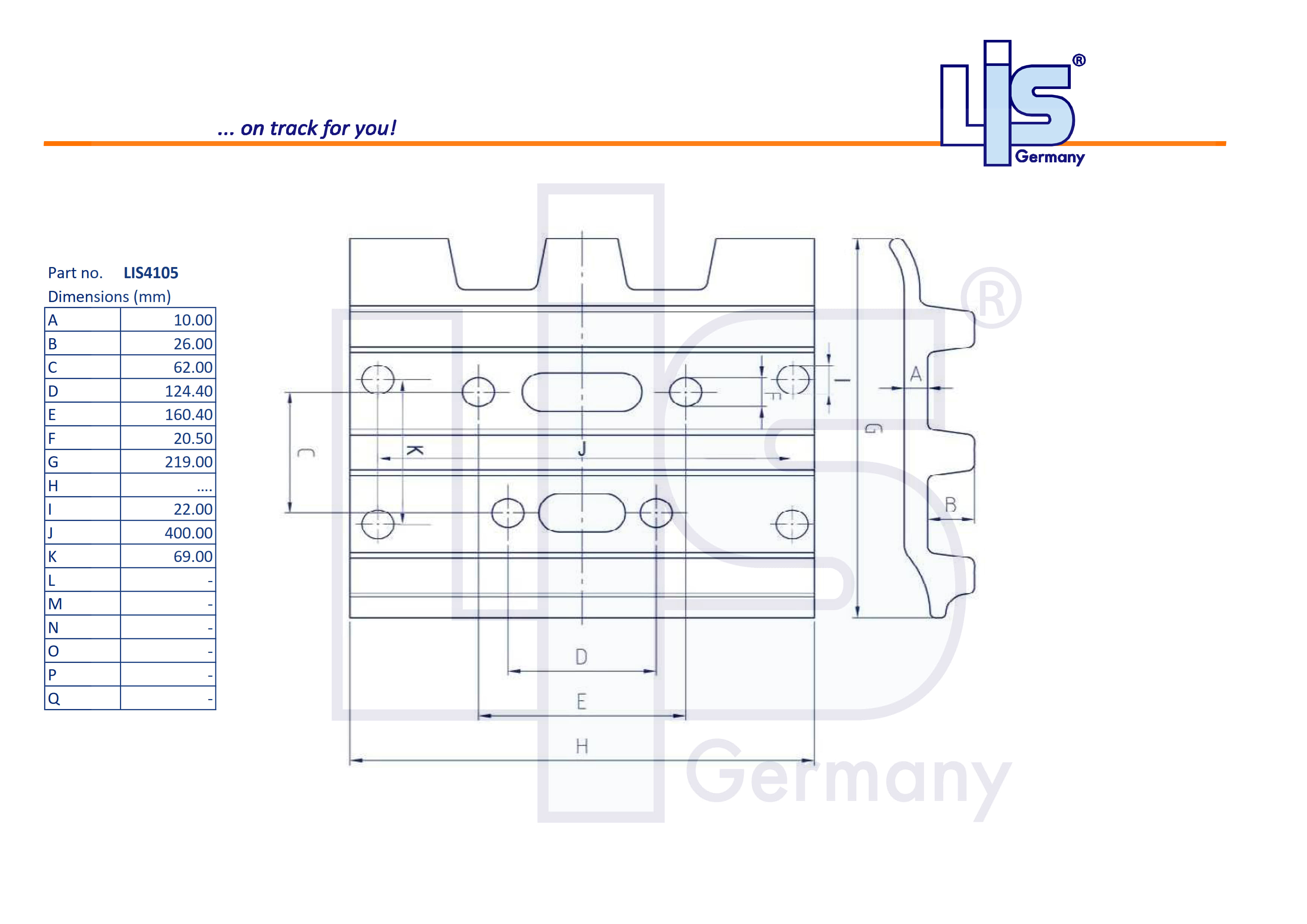

Important Note: Please check the bolt dimensions before ordering. Technical drawings are visible after registration in our shop.

Features and Benefits

• Hybrid Function: Drill holes allow quick conversion to Bolt-On pads for asphalt.
• High Stability: The 3-bar profile minimizes vibrations and tilting for smooth operation.
• Maneuverability: The low turning resistance of the triple grouser design protects the undercarriage during frequent steering maneuvers.
• LIS® Warranty: ✓ 12 months on material/manufacturing defects*.  Learn more.

Technical Specifications

• Shoe Type: Triple Grouser
• Shoe Width: 600 mm (24")
• Pitch: 190 mm
• Base plate thickness: 10 mm
• Total Height: 36 mm
• Special Feature: Drilled for Bolt-On Pads
